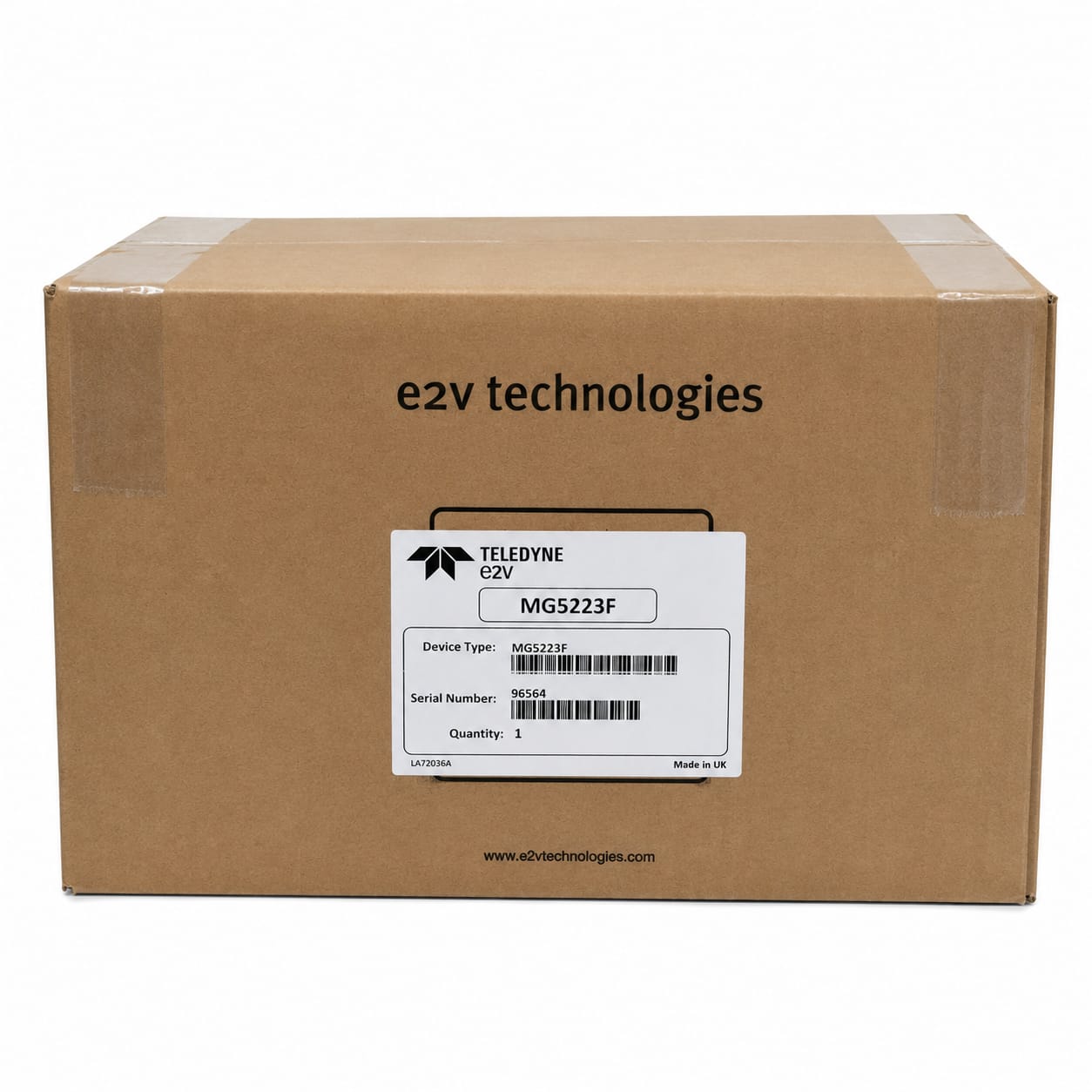

eev magnetron mg5223f

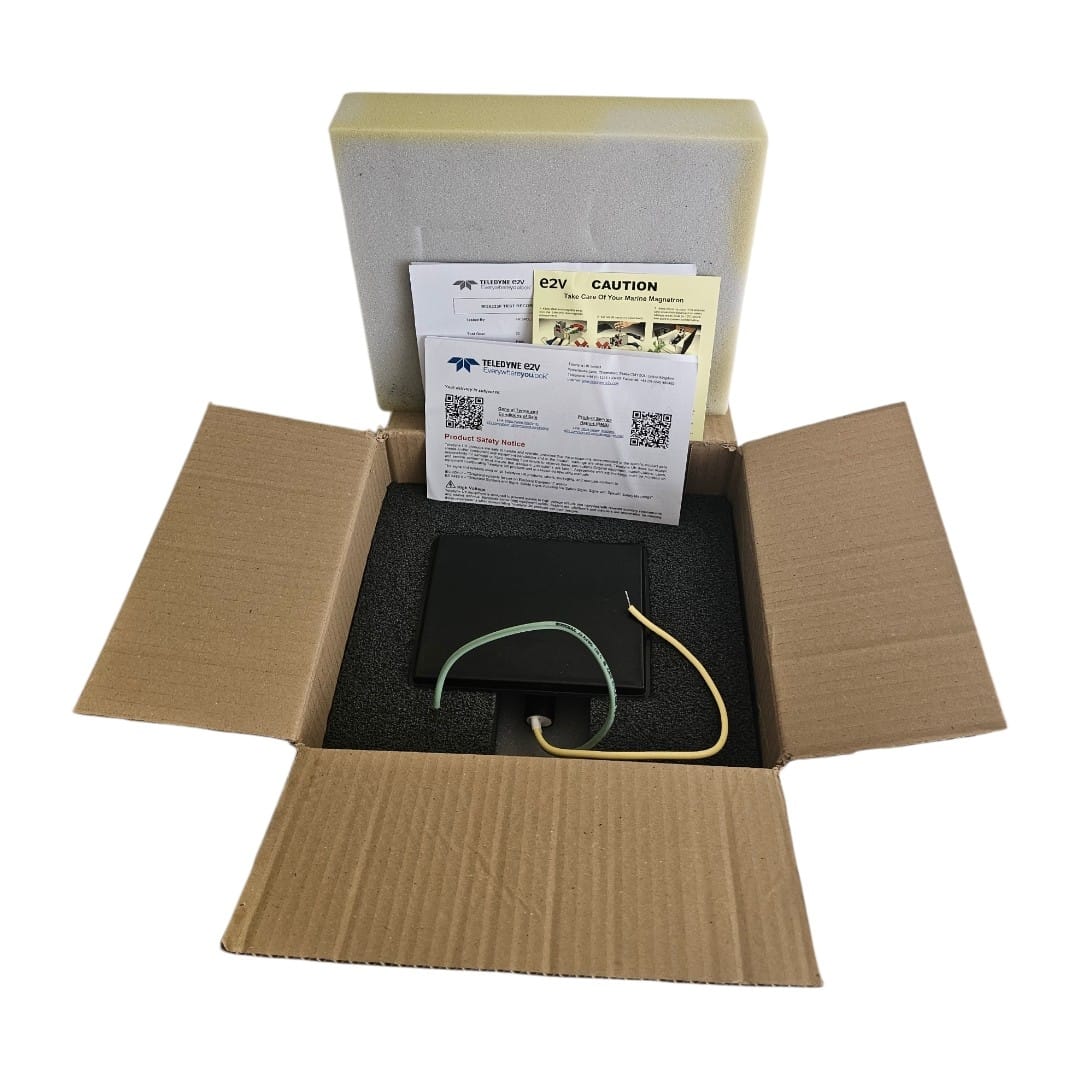

eev magnetron mg5223f open box

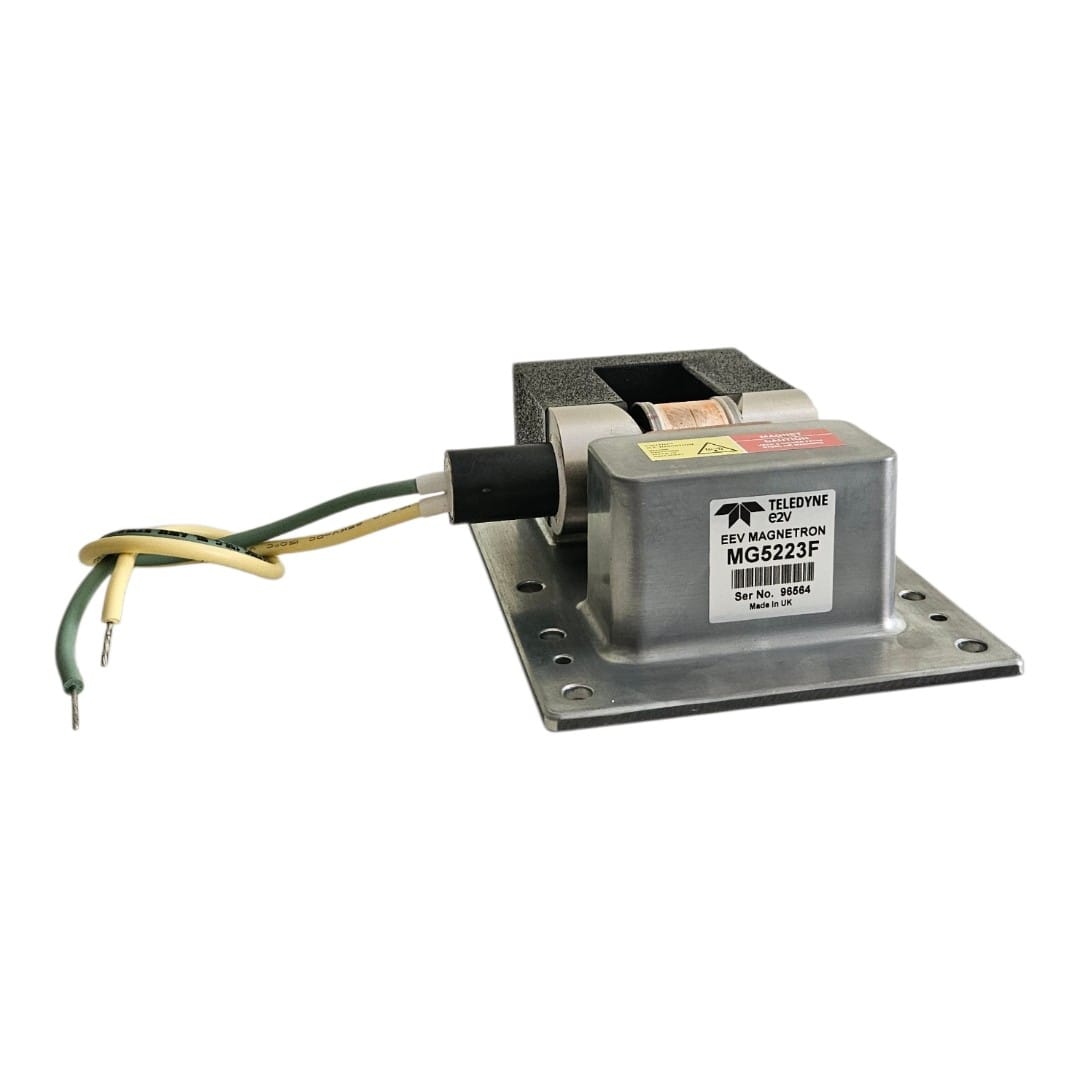

EEV MG5223F MAGNETRON FOR RADAR - Image 3

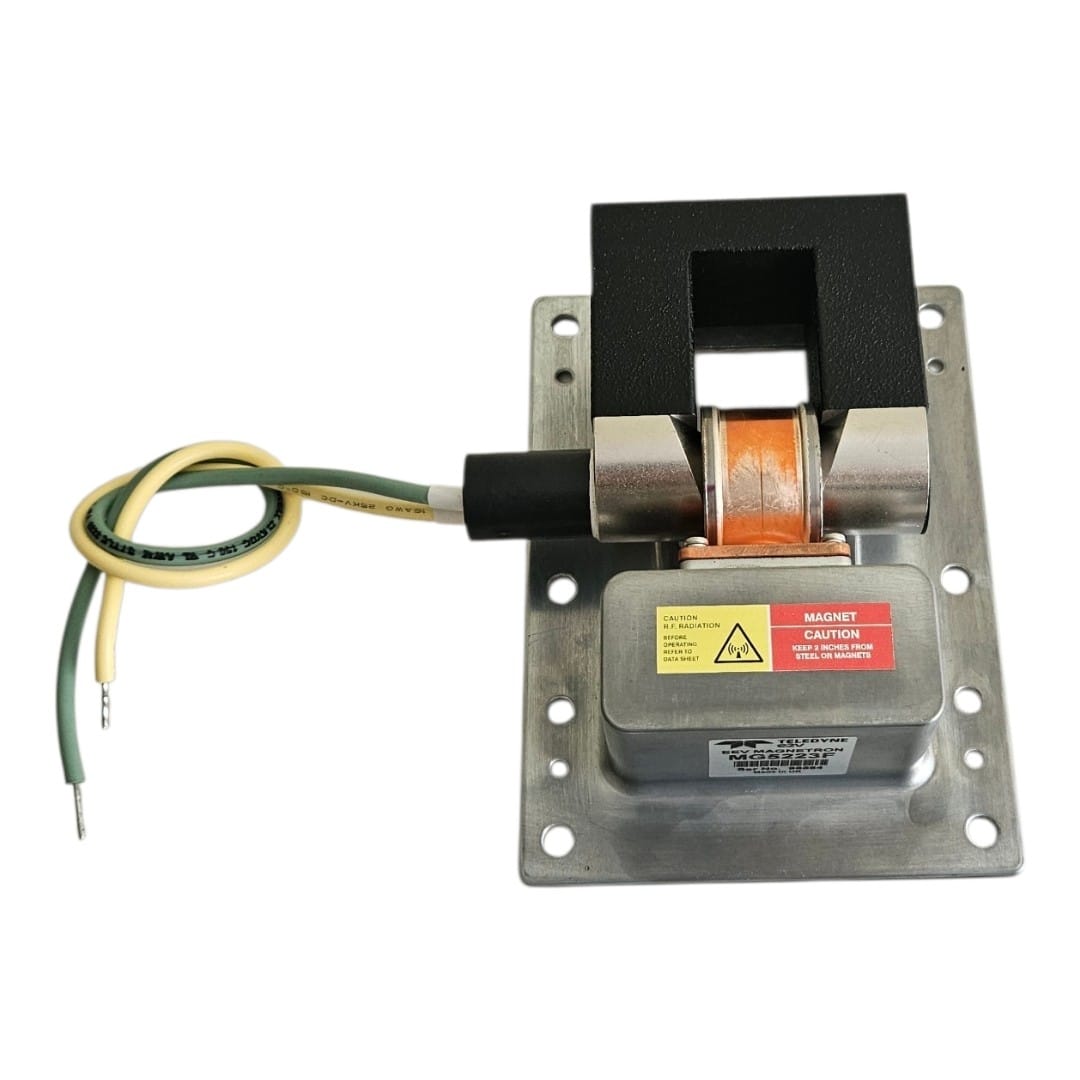

EEV MG5223F MAGNETRON FOR RADAR - Image 4

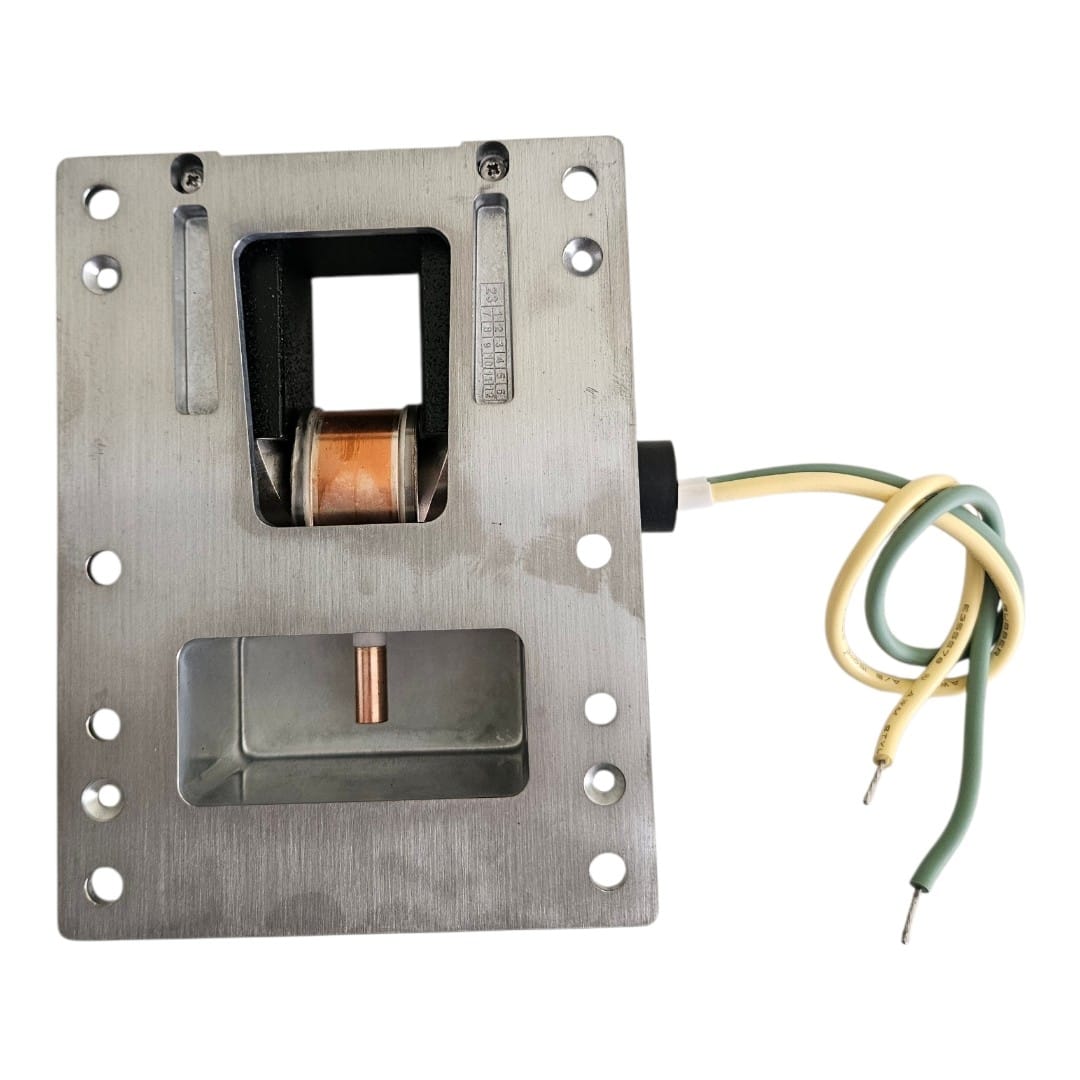

eev magnetron mg5223f backside
• Availability: Ask Stock
• WhatsApp: Send Message

Category: Tags: , , , ,

DEVICE: MAGNETRON

BRAND: E2V TELEDYNE – EEV

TYPE: MG5223F

RF OUTPUT: 30 KW

BAND: S BAND



This Part EEV MG5223F MAGNETRON FOR RADAR. When your radar echoes and tune bar goest to weakness you have to check your magnetron TX time. If your radar TX Time over 5.000 Hours, you have to change your magnetron with the new one. Your technician can change radar magnetron and carbon brushs easyly. We can supply to world wide and we can give service in all Turkey Ports. Keep in touch with us.



Operating frequency 3050 ± 10 MHz
Typical peak output power 30 kW
Cathode indirectly heated
Heater voltage  6.3 V
Heater current at 6.3 V  1.25 A
Cathode pre-heating time 180 S
Net weight  2.1 KG




 View / Download Product Manual PDF

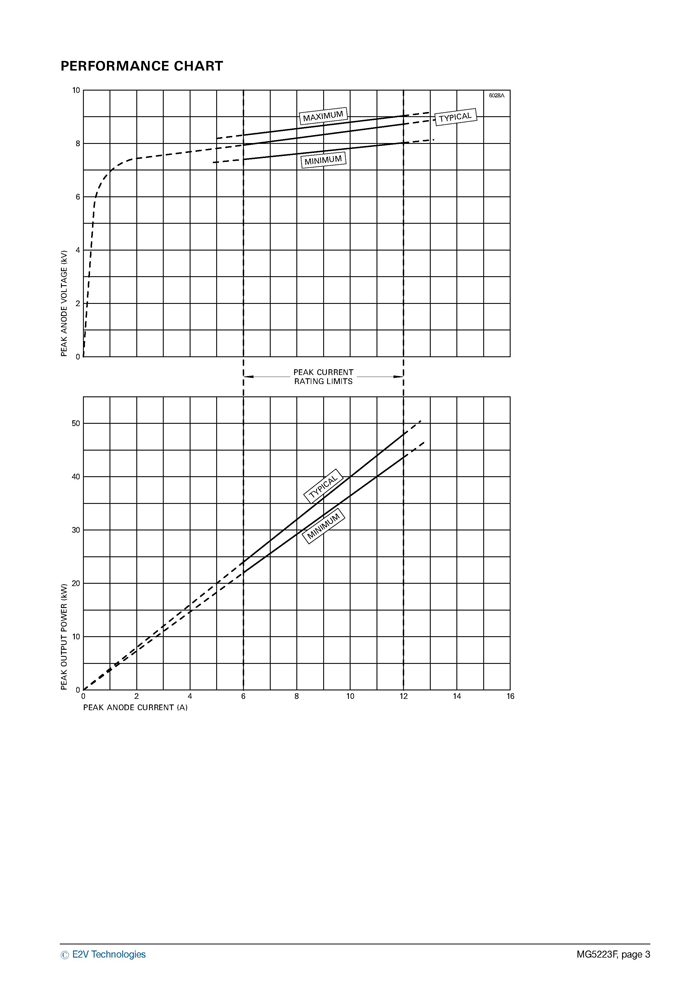

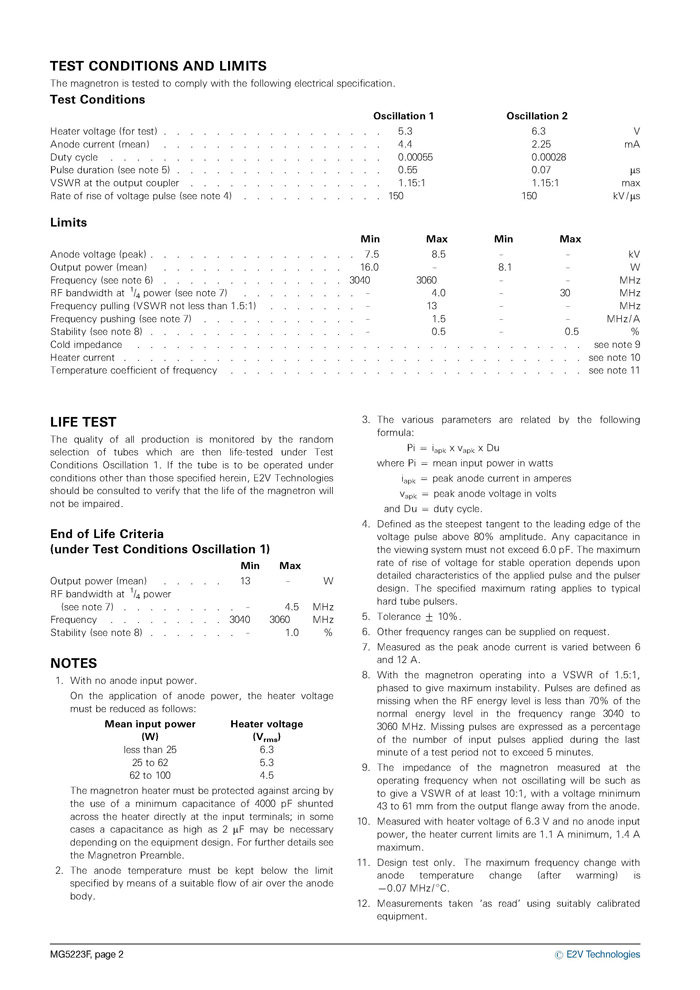

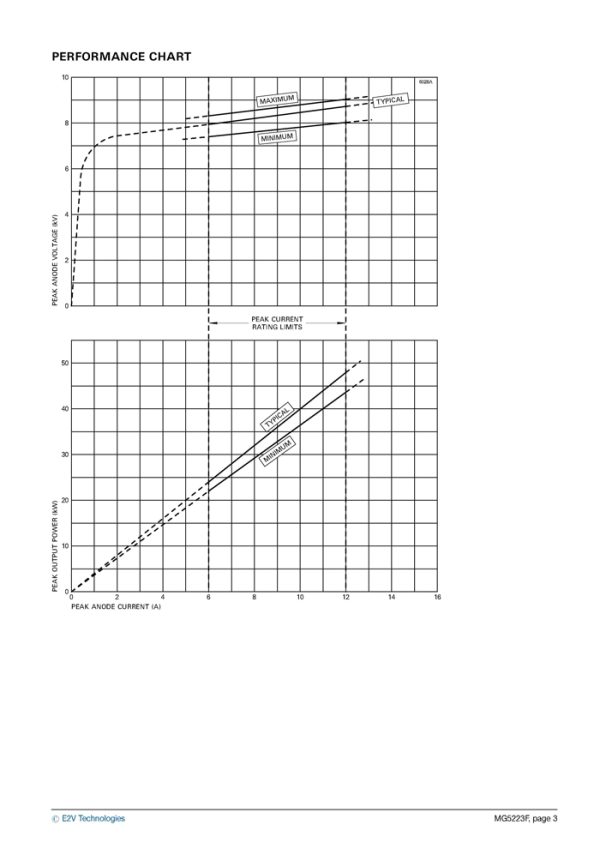

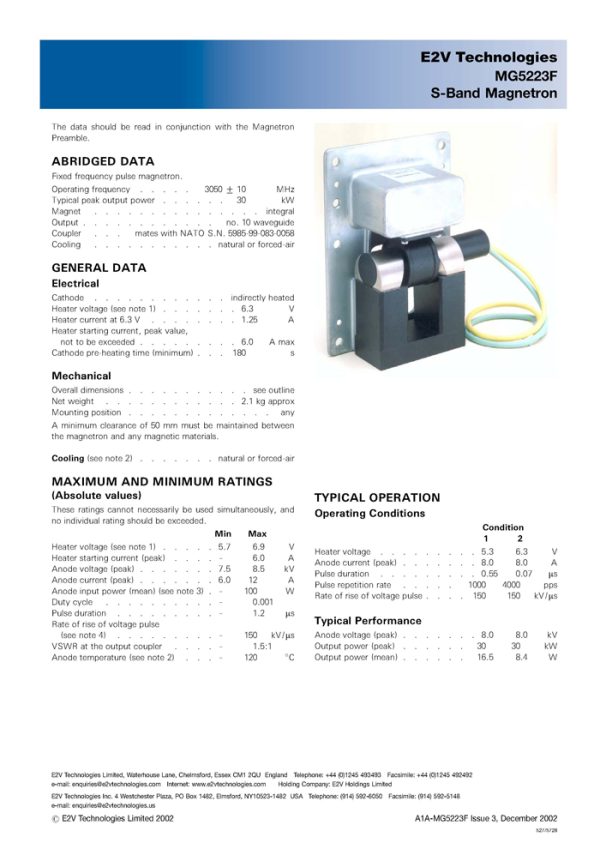

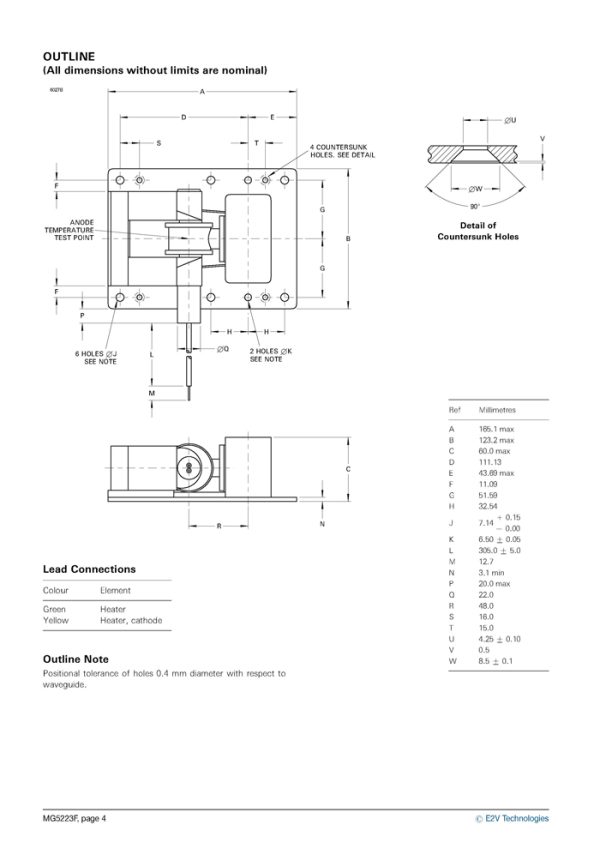

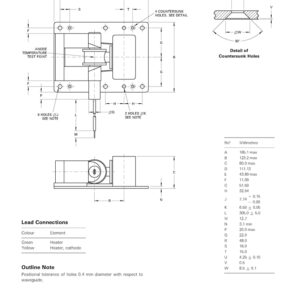

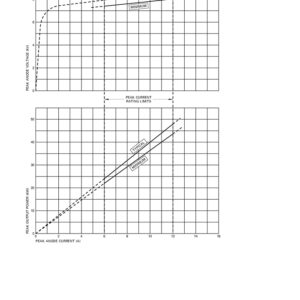

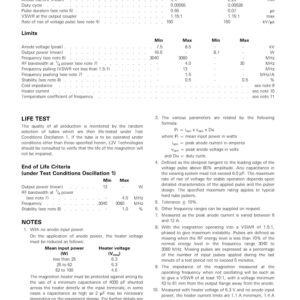

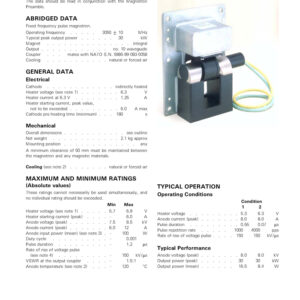

The detailed datasheet for the E2V MG-5223F S Band Magnetron can be downloaded from the link.



We offer global supply services and comprehensive support at all Turkish ports. Feel free to contact us anytime.

MAGNETRON CATEGORIES

Weight 1 kg
Dimensions 30 × 30 × 15 cm

Document

EEV– MG5223F Datasheet
