Description
DEVICE: MAGNETRON
BRAND: JRC
TYPE: MSF1425B

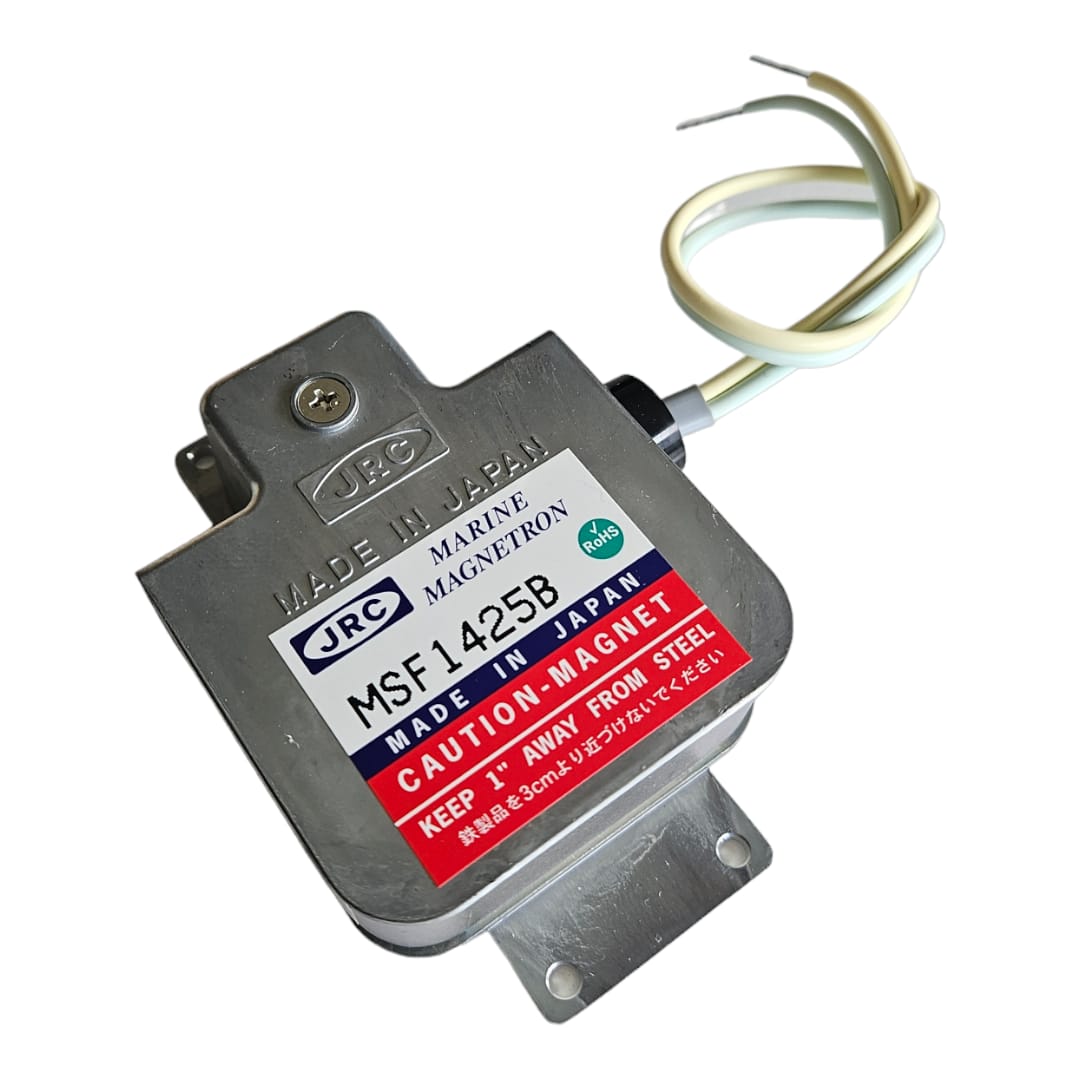

This Part JRC MSF1425B MAGNETRON FOR RADAR. When your radar echoes and tune bar goest to weakness you have to check your magnetron TX time. If your radar TX Time over 5.000 Hours, you have to change your magnetron with the new one. Your technician can change radar magnetron and carbon brushs easyly. We can supply to world wide and we can give service in all Turkey Ports. Keep in touch with us.

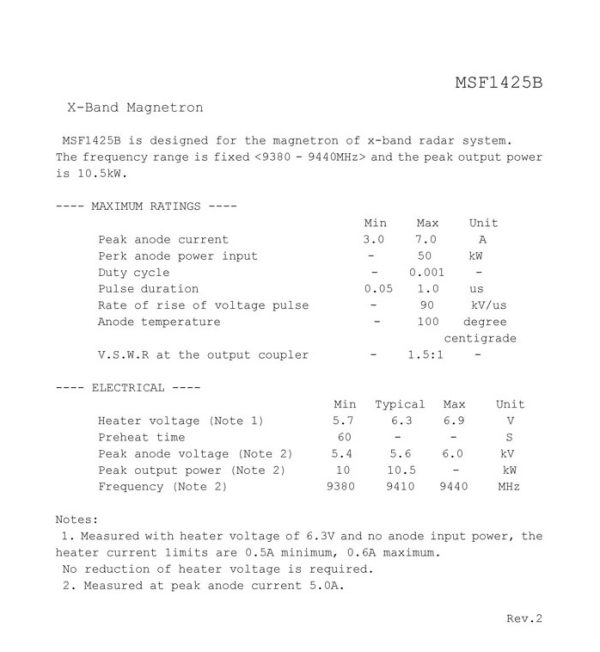

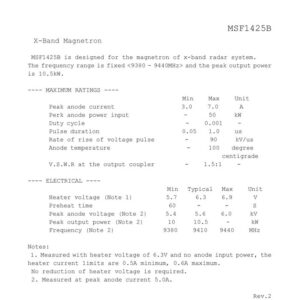

| Features | Parameters | ||
|---|---|---|---|
| Frequency | 9380 to 9440 MHz (Fixed) | ||
| Output power (Peak) | 10.5 kW | ||
| Duty cycle / Pulse duration | 0.001 / 1.25 μsec | ||
| Anode voltage (Peak) | 5.6 kV | ||
| Anode current (Peak) | 5 A | ||
| Heater voltage | 6.3 V | ||
| Heater current | 0.55 A | ||
| RF output interface | Waveguide: WR90 RF flange: UG-135/U Equivalent |
||
| Power supply interface | Lead wire | ||
| Cooling | Air / Forced air | ||
| Weight | 0.4 kg | ||
