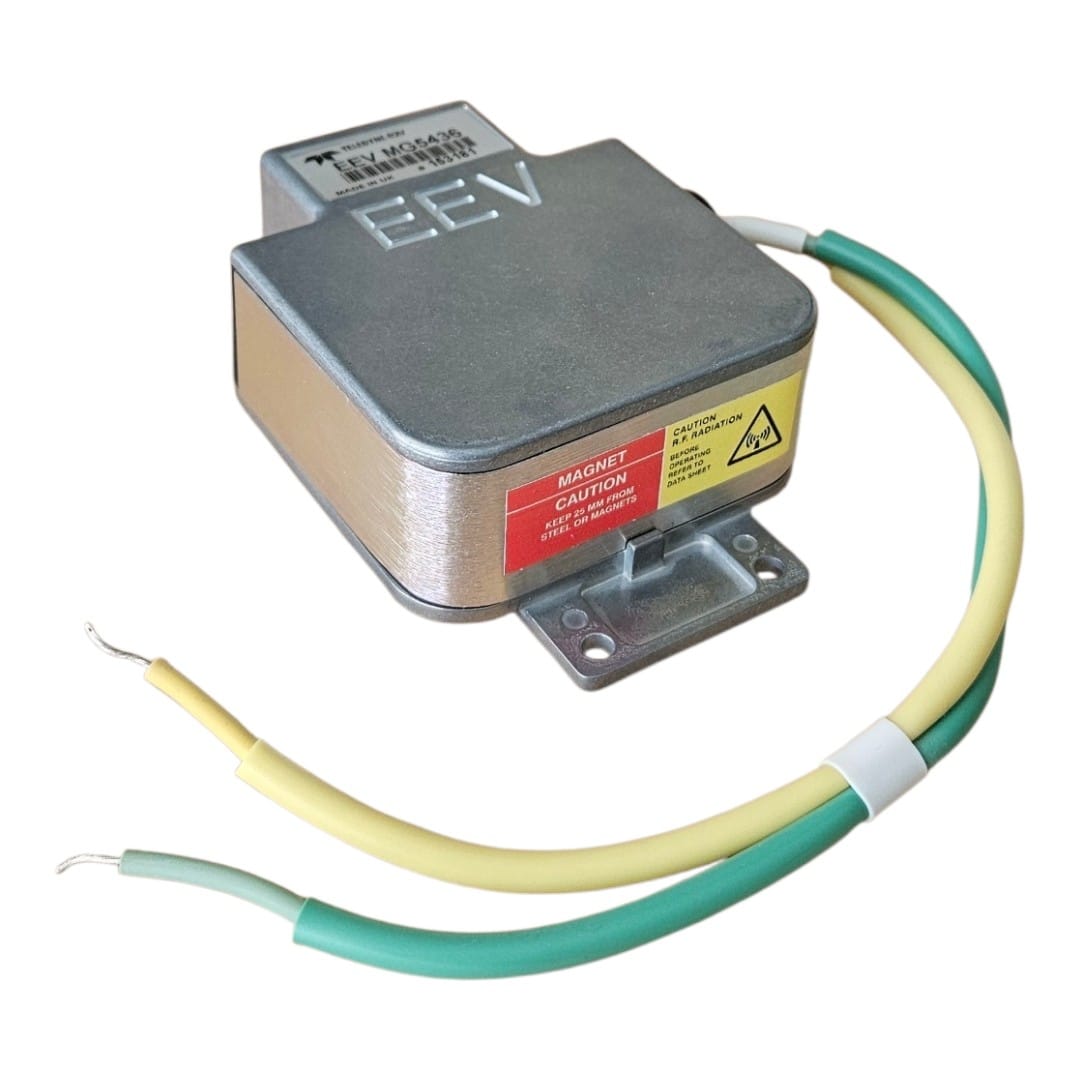

MG-5436 Magnetron Teledyne - X Band

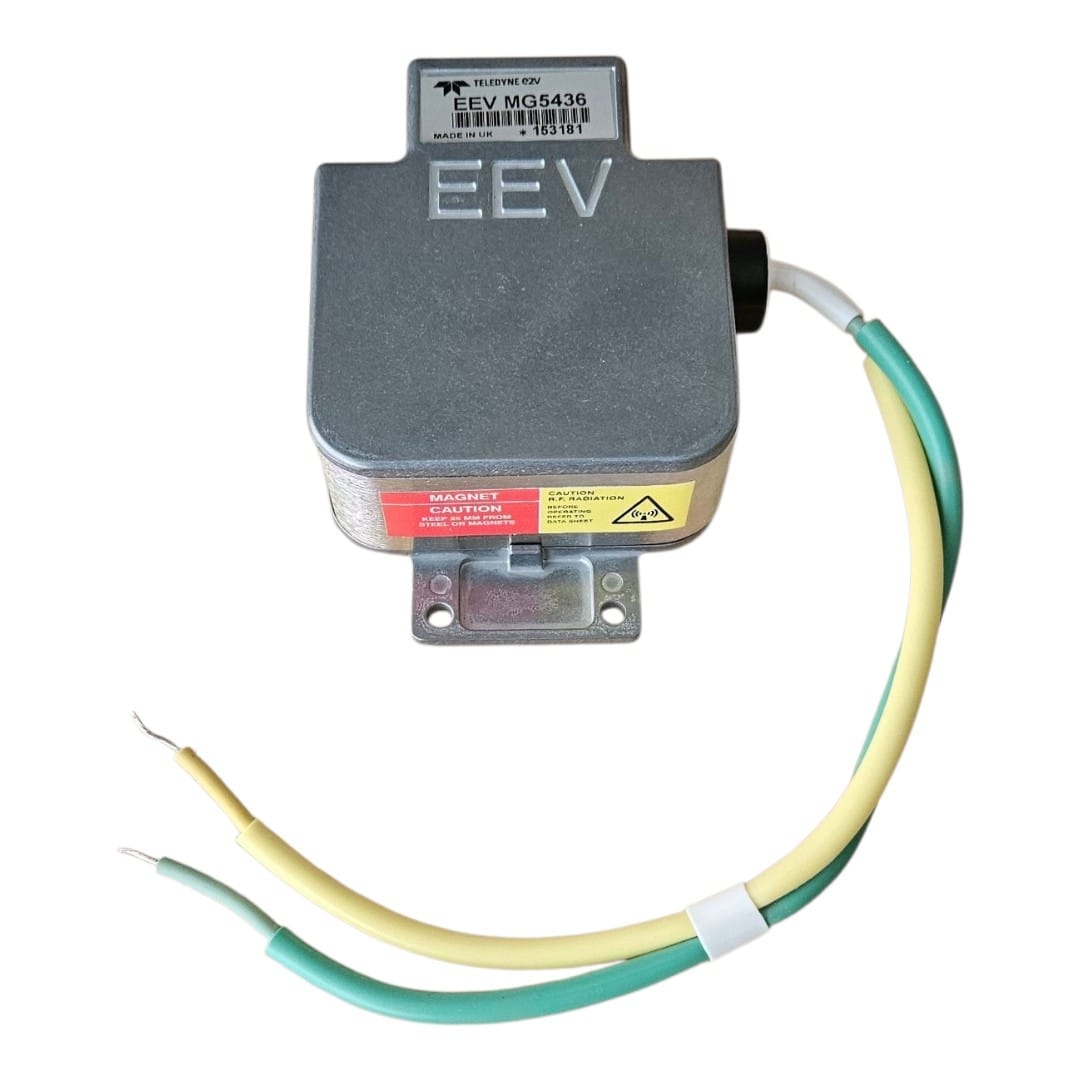

MG-5436 Magnetron Teledyne - X Band

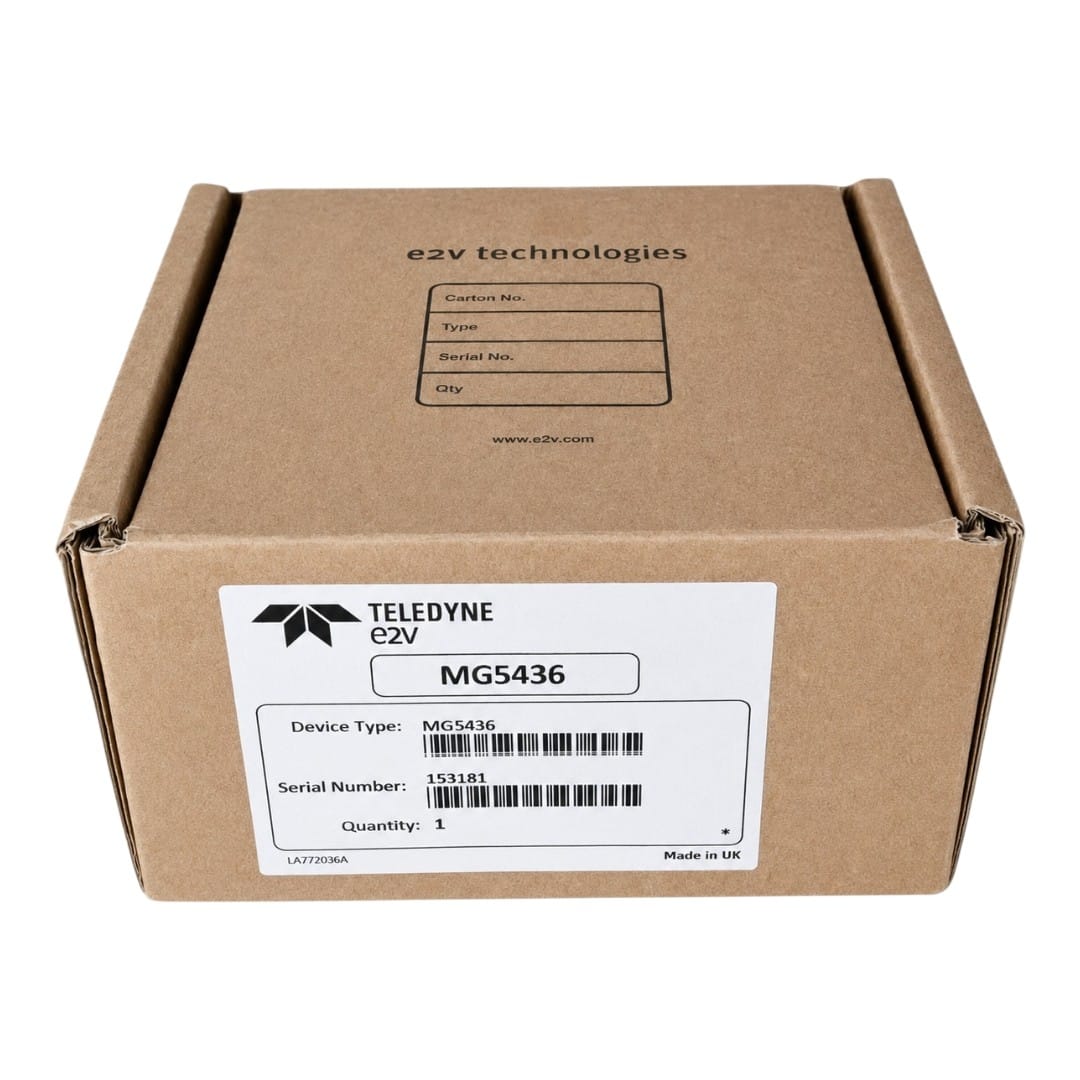

MG-5436 Magnetron Teledyne - X Band
MG-5436 Magnetron Teledyne - X Band

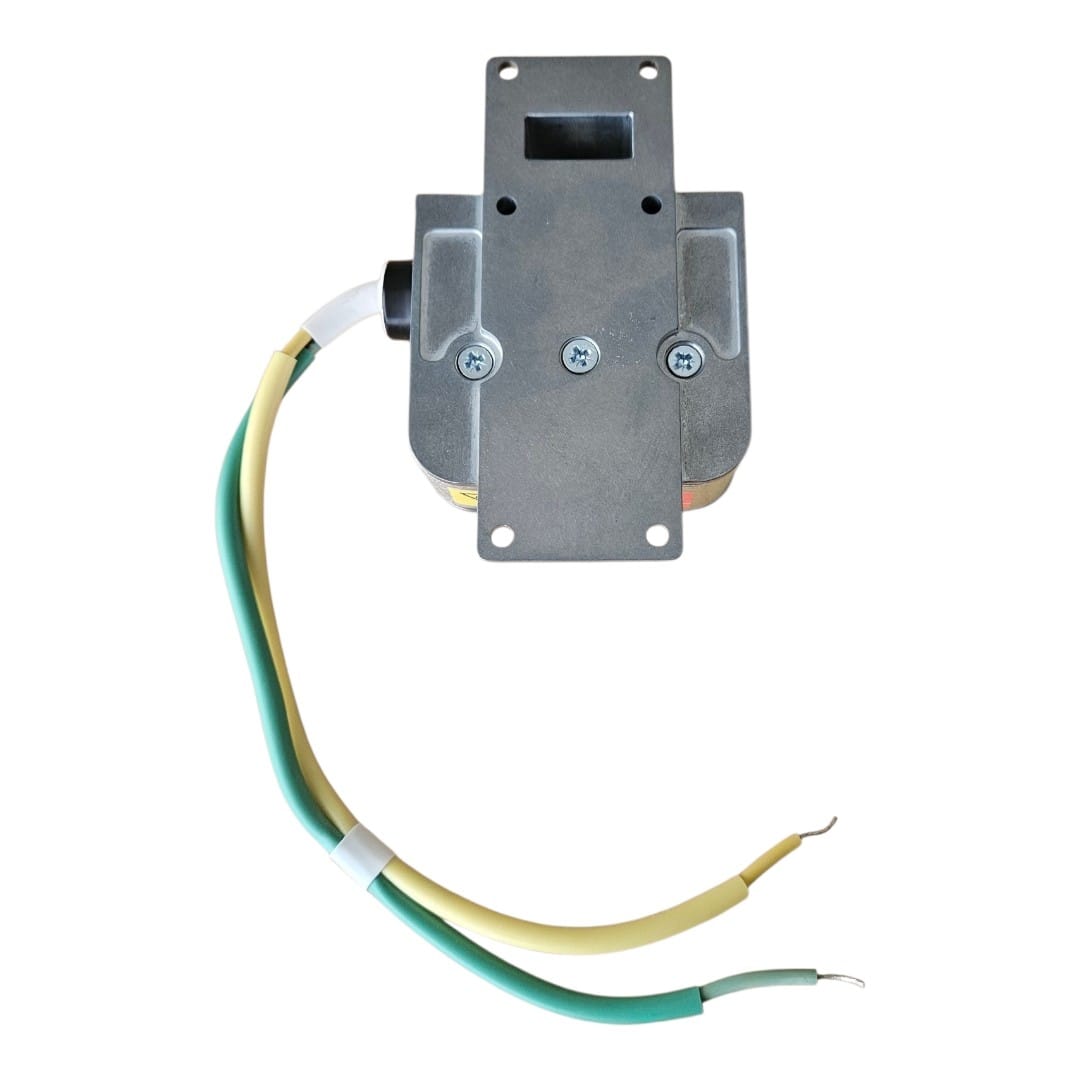

EEV MG5436 MAGNETRON FOR RADAR - Image 5
• Availability: Ask Stock
• WhatsApp: Send Message

Category: Tags: , , ,

DEVICE: MAGNETRON

BRAND: TELEDYNE EEV ( E2V )

TYPE: MG5436

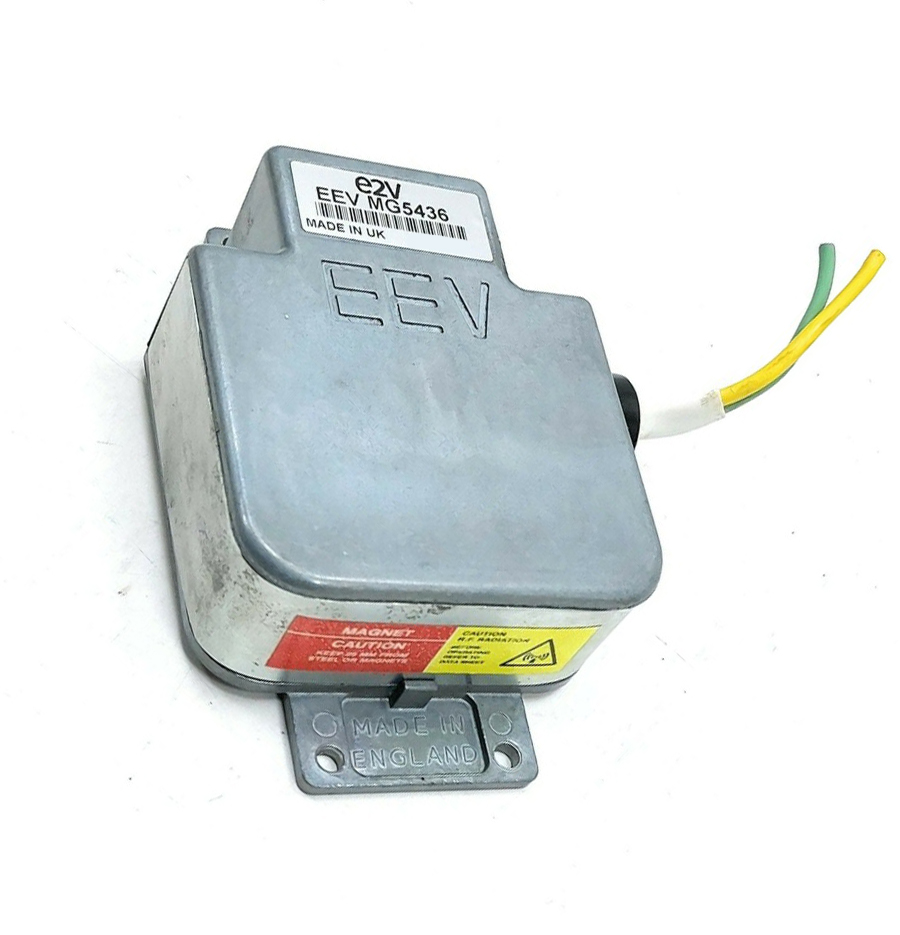

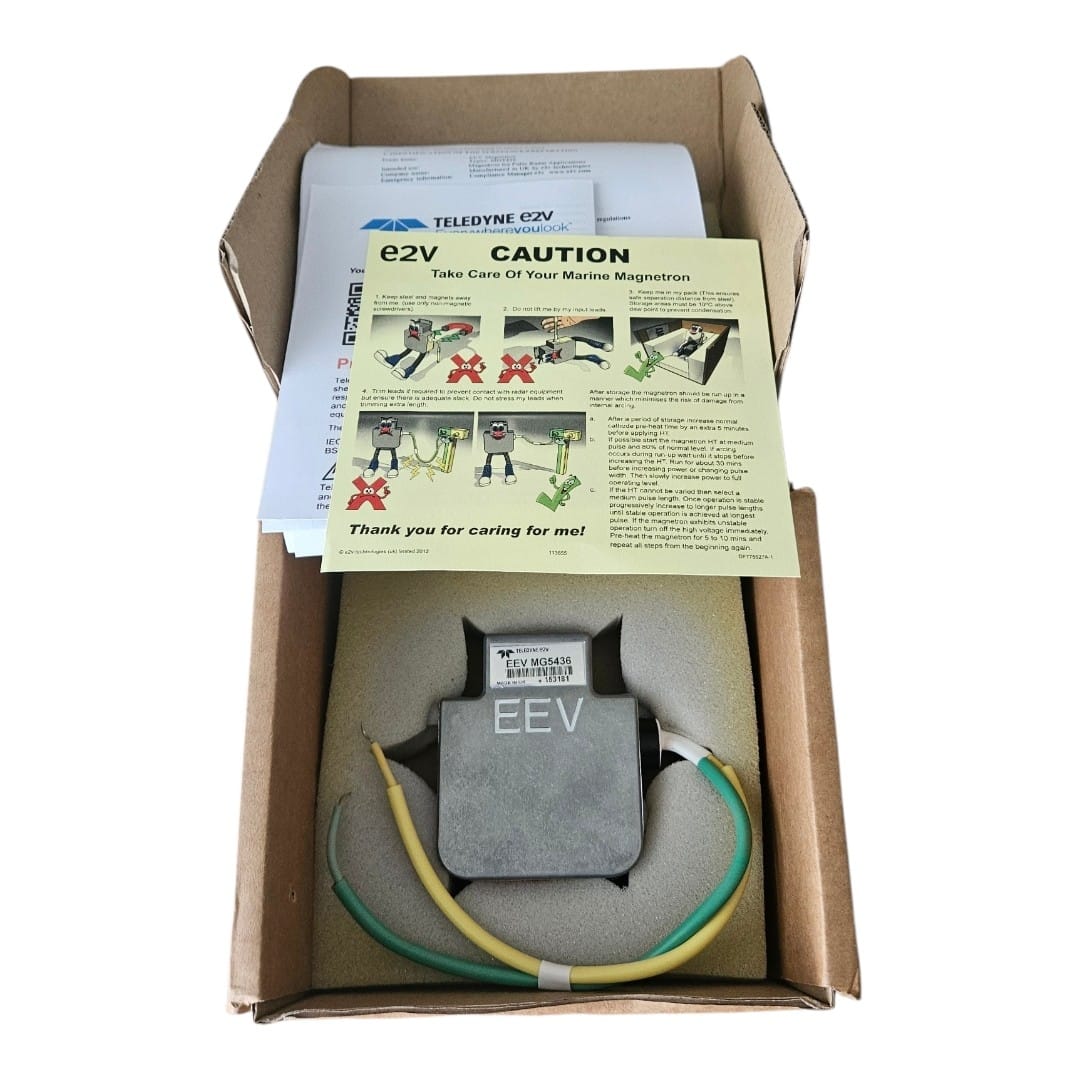

This Part EEV MG5436 Magnetron for X Band Marine radar. When your radar echoes and tune bar goest to weakness you have to check your magnetron TX time. If your radar TX Time over 5.000 Hours, you have to change your magnetron with the new one. Your technician can change radar magnetron and carbon brushs easyly. We offer global supply services and comprehensive support at all Turkish ports. Feel free to contact us anytime.



Operating frequency 9410 + 30 MHz
Typical peak output power 25 kW
Cathode indirectly heated
Heater voltage  6.3 V
Heater current at 6.3 V  0.5 A
Cathode pre-heating time 60 S
Input capacitance  9.0 pF max

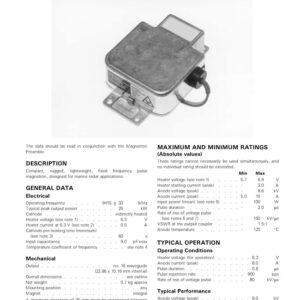

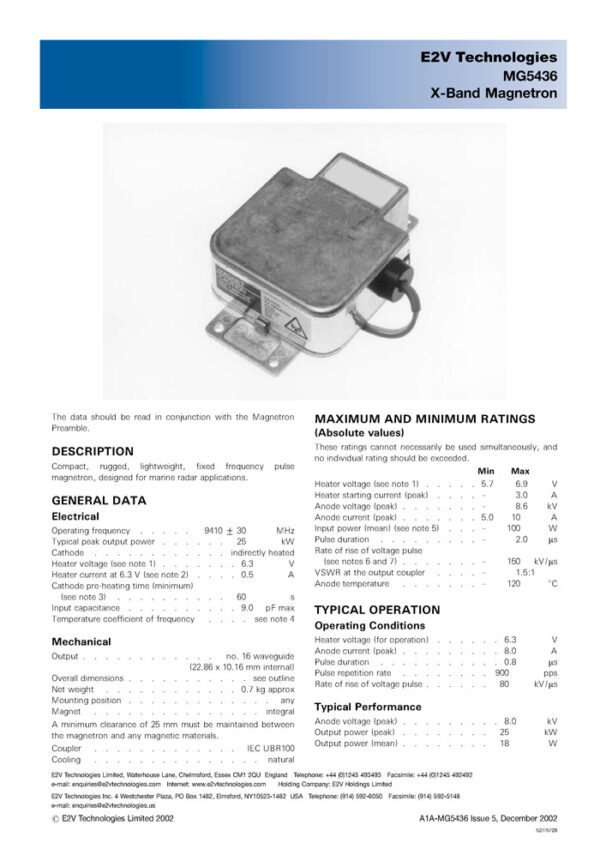

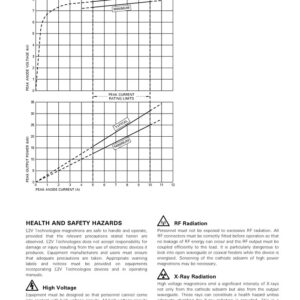

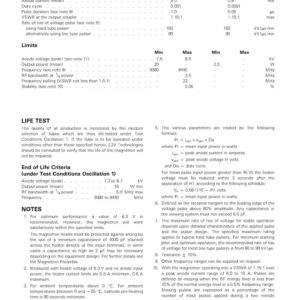

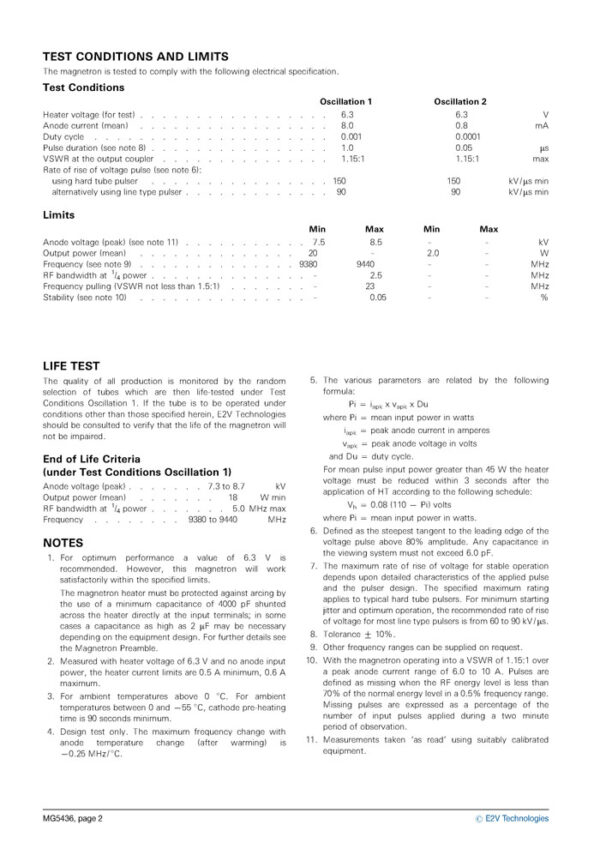

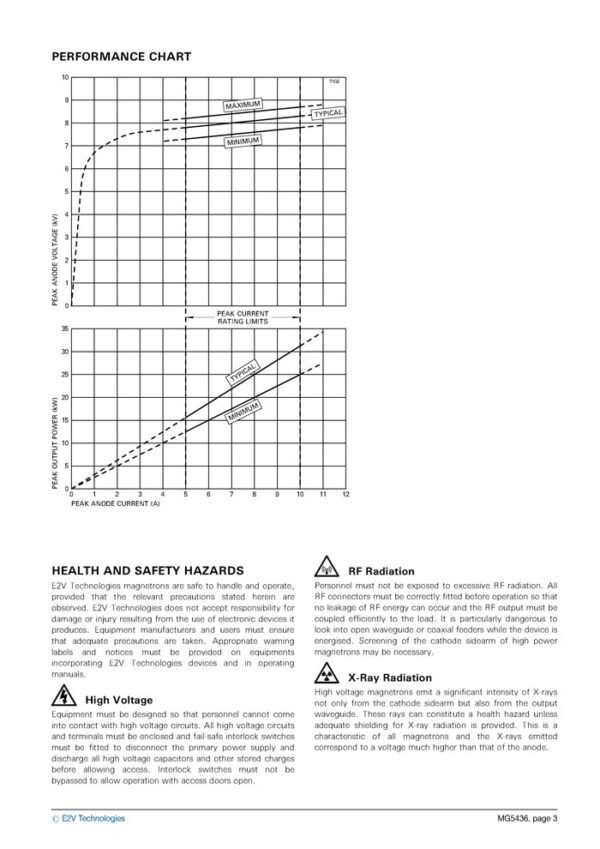

 View / Download Product Datasheet PDF

The detailed datasheet for the Teledyne EEV MG5436 Magnetron can be downloaded from the link.



MAGNETRON CATEGORIES

Weight 1 kg
Dimensions 15 × 15 × 10 cm

Document

EEV – MG5436 Datasheet
