Description
DEVICE: NAVTEX
BRAND: SAMYUNG
TYPE: SNX-300

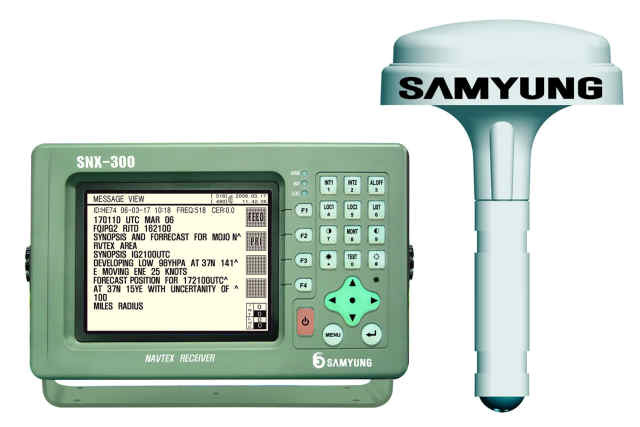

This NAVTEX Receiver is SAMYUNG SNX-300 We can supply to world wide and we can give service in all Turkey Ports. Keep in touch with us.
SPECIFICATION
RECEIVER
Receiving Frequency : 518KHz , 490KHz or 4209.5KHz
Receiving Modulation : F1B(Narrow Band Direct Printing)
Sensitivity : 2uV e.m.f. (50 ohms), 4% error rate or less
Antenna input : 50 ohms for NAVTEX Active antenna
DISPLAY SECTION
Type of display : 5.7-inch LCD, 320×240 dots
Back-light : For LCD and key board
Dimmer control : 10steps adjustable (Selectable from keyboard)
Contrast control : 10steps adjustable (Selectable from keyboard)
POWER SUPPLY
Input voltage : Rated Voltage DC 12/24V (10 ~36V)
Power consumption : 10 W (at 24 V dc input)
ACTIVE ANT(SAN-300)
Receiving frequency : 518kHz, 490kHz and 4209.5kHz
Consumption current : 8Vdc 10mA (Typ.)
Impedance : 50 ohms
ENVIRONMENT
Operation temperature : -15°C to +55°C
Storage temperature : -25°C to +75°C
Relative humidity : 95% at 40°C (without dew condensation)
Vibration : IEC 60945
