Description

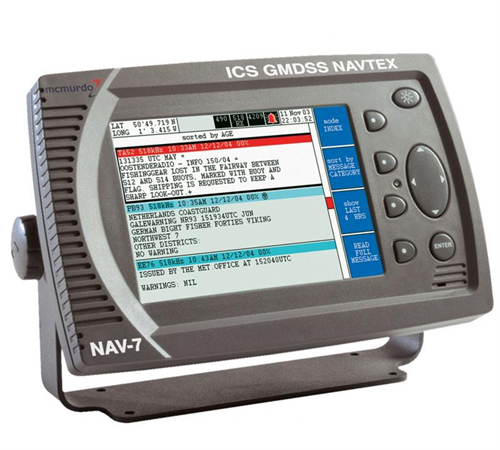

DEVICE: NAVTEX
BRAND: MCMURDO
TYPE: NAV-7
This NAVTEX Receiver is MCMURDO NAV-7 We can supply to world wide and we can give service in all Turkey Ports. Keep in touch with us.
SPECIFICATIONS
Display: 6 inch, ½ VGA (480 x 320 pixels) Daylight viewable colour STN with adjustable backlight and screensaver
Controls: Backlight/ contrast key, Enter key, four soft menu keys, Tracker pad
Receivers: Receiver A, Frequency 518kHz, Receiver B, Frequency 490kHz, Receiver C, Frequency 4209.5kHz
Connectors: 15 way D-type, Power, Alarm & COM 1 data (2 meter cable supplied with connector pre wired) 9 way D-type, Printer/ COM2 Antenna connector, 50 ohm TNC Ground connector, 1/8” Spare terminal
Data interface:
COM 1, RS422 (NMEA 0183)
COM 2, RS422 (NMEA 0183)
Baud rate, 4800, 38400, 115200.
NMEA sentences supported
(in priority order) RMC, GLL, ZDA for UTC and NRX, NRQ, NMK, ACK, ALR for NAVTEX functions.
Mounting: Desk-top or bulkhead (flush panel fixing kit included)
Power: Voltage range 12/24 V DC nominal (10.8 V to 31.2 V) Consumption, with backlight on 8.6 W @ 24 V DC Internal auto resettable fuse @ 1.8 A DC
Technical Standards:
IMO Resolutions,
MSC.148(77) A.2.1 (17),
SOLAS Regulation IV/7.1.4,
ITU-R M.540-2, ITU-R M.625-
3, IEC 60945-4, IEC 61162-1,
-2, IEC 61162-2, IEC 61097-6
