Description
DEVICE: NAVTEX
BRAND: NSR
TYPE: NVX-3000

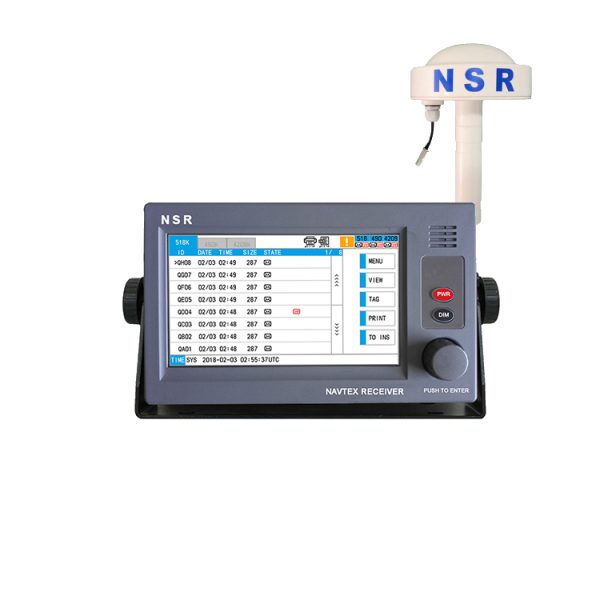

This NAVTEX Receiver is NSR NVX-3000 and Active Antenna NXA-200. We can supply to world wide and we can give service in all Turkey Ports. Keep in touch with us.
SPECIFICATIONS
| NAVTEX Receiver | |
| Receiving Frequency: | 518kHz, 490kHz & 4209.5kHz, to receive on three channels simultaneously |
| Mode of Reception: | F1B |
| Sensitivity: | Better than -107dBm |
| Display | |
| Display System: | 7 inch, color LCD, touch screen operation, 154(W) x 87(H) mm |
| Resolution: | 800 x 480 |
| Character number: | English 40 Characters /line |
| Power Supply | DC 24V (10V～38V, 10Watts average) |
| Environment Conditions | |
| Temperature Range: | -20℃ ~ +55℃ operational -30℃~ +70℃ storage (Antenna & Amplifier) |
| IP Grade: | IP22 (Receiver), IP66 (Antenna & Amplifier) |
| Compass safe distance: | 1.15m (standard) |
| Interface | |
| Input sentences of NMEA IN port: | ZDA, RMC |
| Input sentences of BAM/INS port: | NRM, CRQ, ACK, ACN |
| Output sentences of BAM/INS port: | ALR, NRX, NRM, ACN, ACK, ALF, ALC, ARC, HBT |

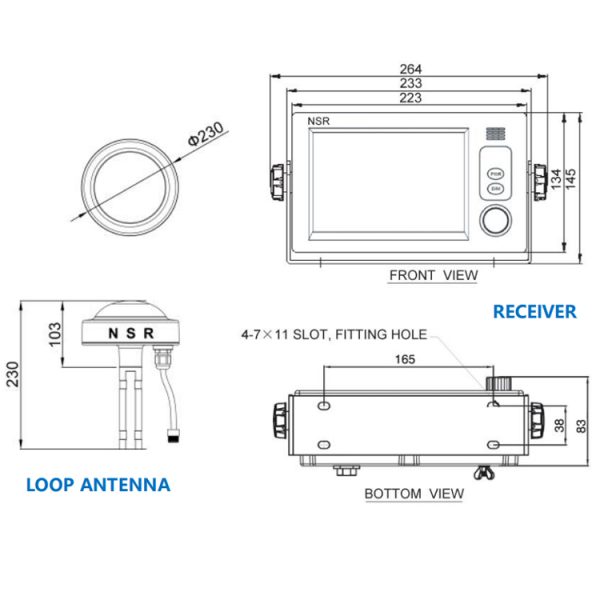

| Dimension & Weight | |
| Weight: | 2.3 kg (Receiver) |
| Dimension: | 264(W) x 145(H) x 83(D) mm (Receiver) |
FEATURES
- Large 7 inch color LCD.
- Receive on three IMO NAVTEX frequencies (518 kHz, 490 kHz and 4209.5 kHz) simultaneously.
- Displays the message contents.
- Messages stored for 72 hours.
- Simple to operate by touch screen.
- Desktop or flush mount.
- External printer/NMEA/BAM/INS interface and External alarm output.
- Low power consumption.
- Self-diagnosis function.

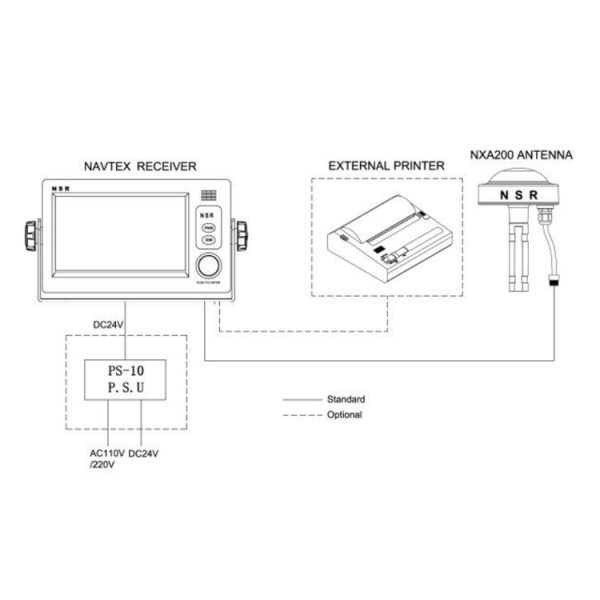

EQUIPMENT LIST
- STANDARD
– Receiver 1 pc
– Loop Antenna (NXA200) 1 pc
– Accessories 1 set - OPTIONS
– Printer (NPT-100) 1 pc
– AC/DC PSU (PS-10) 1 pc
– Flush Mount Bracket 1 pc
APPROVALS AND RULES
- Meet the latest rules: IMO MSC.430 (98), IMO MSC.302 (87), IEC 62923-1, IEC 62923-2
- Type approval with DNV (MED)
