Description

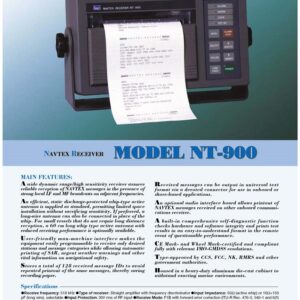

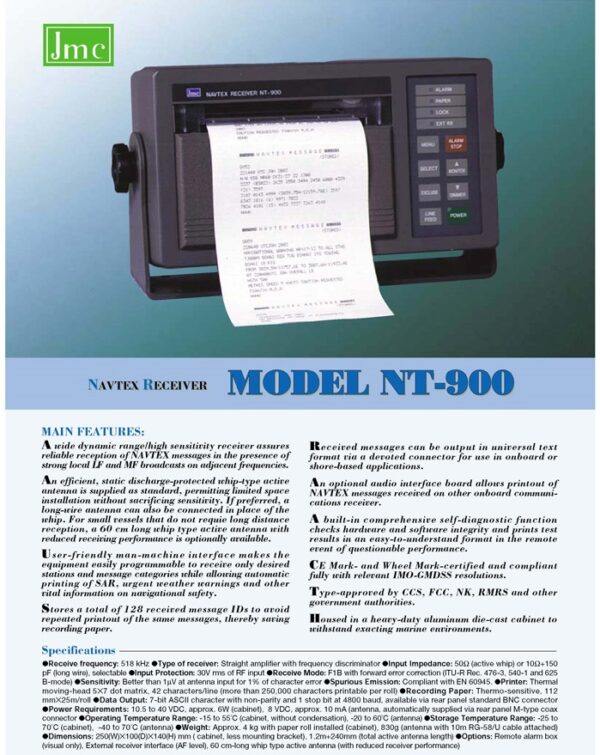

DEVICE: NAVTEX
BRAND: JMC
TYPE: NT-900
This NAVTEX Receiver is JMC NT-900 We can supply to world wide and we can give service in all Turkey Ports. Keep in touch with us.
| Parameters, function | Values |
| Working range of coastal station | from 250 till 400 mile |
| The frequency of receiving | 518 kHz |
| The class of receiving signal | Frequency telegraphy F1B |
| Receiver sensitivity: – on artificial antenna 50 Om – on artificial antenna 10 Оm 150 pF |
Not worse than 2 mkV Not worse than 5 mkV |
| Receiver selectivity: – at a level 6 dB – at a level 60 dB |
300 Hz 2 kHz |
| Stray radiation | Not more than 2 nVt |
| Protection of receiver input | 30 V (root-mean-square denotation) |
| A type of receiving antenna | Active with coaxial cable having length 15 m |
| Amount of message determinants in a memory | More than 30 |
| Printer: | |
| Printing type | Thermoprinting |
| Line length | 42 digits |
| Token structure | stencil 7х5 (height 2,4 mm, width 1,4 mm) |
| Printing speed | 0,7 lines per second |
| Printing capacity (for 1 roll) | more than 250000 digits |
| Paper (roll) | ТР50KS 25 meters, (112х47 mm) |
| Power supply: | |
| Voltage | From 9 till 40 VDC |
| Consumption current | Not more than 1,5 А |
| An average consumed capacity | Not more than 9 Vt |
| Conditions of operation: | |
| Temperature | From -15 till +55°С |
| Humidity | Up to 93% (during 40°C) |
