DEVICE: GYROCOMPASS, OPERATOR UNIT, DISPLAY
BRAND: RAYTHEON ANSCHUTZ KIEL
TYPE: STANDARD 22
ITEM NUMBER: 130-626.NG002 and 130-613

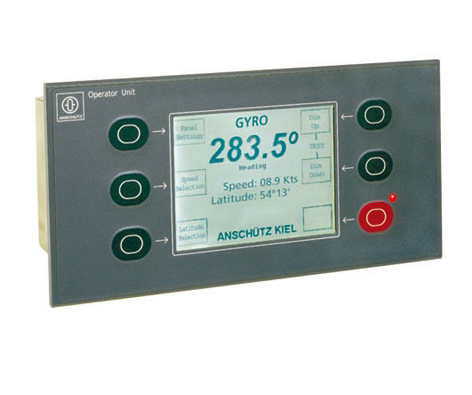

This Operator Unit ( Display ) for Raytheon Anschutz Kiel Standard 22 Gyrocompass. The Operator Unit is designed so that users can operate all items of equipment connected to a CAN bus. All the equipment integrated into the navigational system, such as the gyro compass, the GPS compass and the magnetic compass can be operated through the Operator Unit application described here. Several Operator Units can be connected to a CAN bus. There is no priority control system for connected Operator Units. Each Operator Unit connected to the system has the same priority. The Operator Unit is used to select, use and monitor the navigational devices (sensors). The Operator Unit is available in two versions — desk-flush mounted, and with angled fixing bracket. The Operator Unit consists of a casing with a front panel. All the electronics components required are accommodated inside the casing on 2 PCBs. The front panel contains the display, 6 sealed membrane keys and a two-colour LED. The PCBs are connected to the display unit via an optical fibre. An alarm transmitter is mounted behind the front panel to transmit audible alarms. The Operator Unit is designed for two redundancy CAN (CAN1 and CAN2) busses. The Operator Unit is equipped with a PTC in the supply voltage line. In the event of a fault (short circuit in the Operator Unit) this PTC reduces the current, thus preventing further damage to the equipment. There is no voltage fuse protection.
We can supply to world wide and we can give service in all Turkey Ports. Keep in touch with us.
