Description
DEVICE: GYROCOMPASS, PCB
BRAND: RAYTHEON ANSCHUTZ KIEL
TYPE: STANDARD 22
ITEM NUMBER:110-233.101 E10

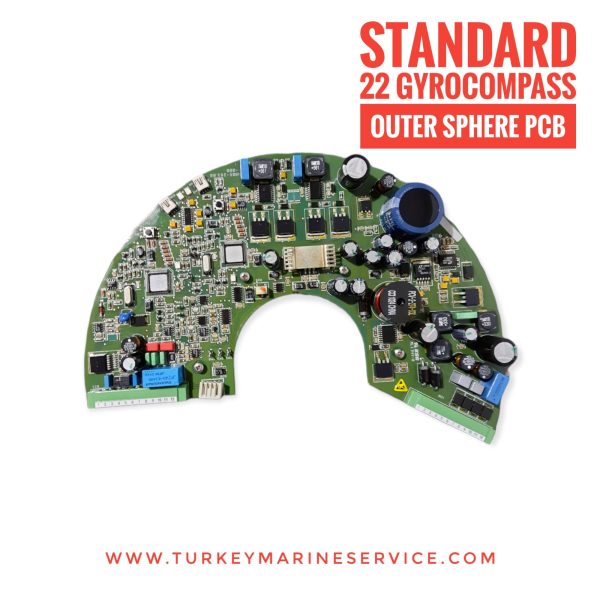

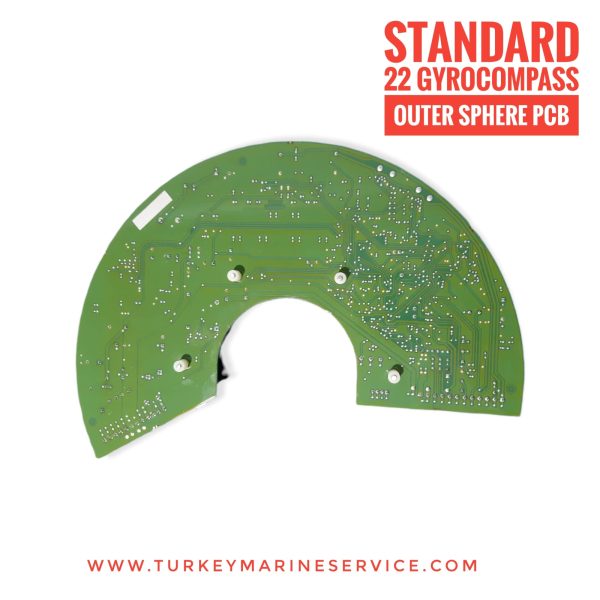

This Outer Sphere PCB (110-233.101) stock number spare for Raytheon Anschutz Kiel Standard 22 Gyrocompass. If you see the error code (below) on the Gyro Compass screen, the Outer Sphere PCB board may be defective and should be replaced, according to the manufacturer’s information. The error descriptions are as follows below. We can supply to world wide and we can give service in all Turkey Ports. Keep in touch with us.
ERROR CODES FOR OUTER SPHERE PCB ( PCBG)
EL 10 Supporting liquid error
EL 11 System voltage (B21.5 ⇒ B21.8) on sensor PCB faulty
EL 12 Operating voltage 24V faulty
EL 13 Operating voltage 15V faulty
EL 14 Heating operating voltage (B21.1 ⇒ B21.4) faulty
EL 15 Operating voltage 72V faulty
EL 16 Operating voltage 78V faulty for 400 Hz
EL 17 Gyro supply 55Veff faulty
EL 18 Gyro current faulty
EL 19 Pump voltage faulty
EL 20 Pump current faulty
EL 21 Temperature sensor faulty
EL 22 Serial interface MC1 to MC2 faulty
EL 23 CAN interface from outer sphere PCB to sensor PCB faulty
EL 24 Heating system faulty
