Description
DEVICE: NAVTEX PRINTER, VHF DSC PRINTER
BRAND: SEIKO
TYPE: DPU-414

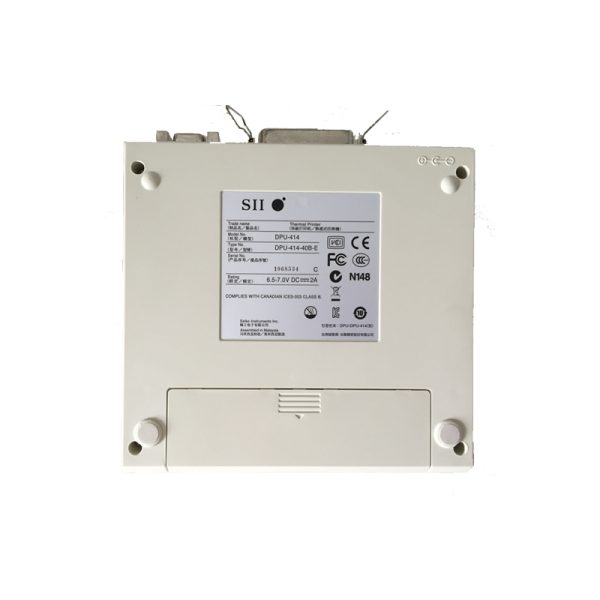

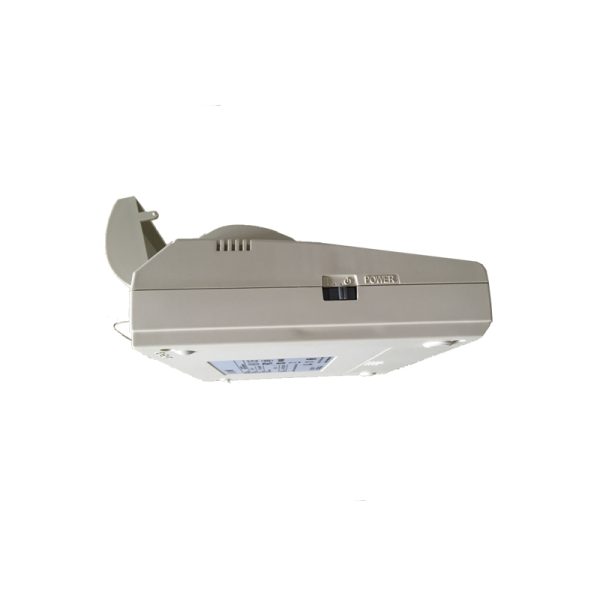

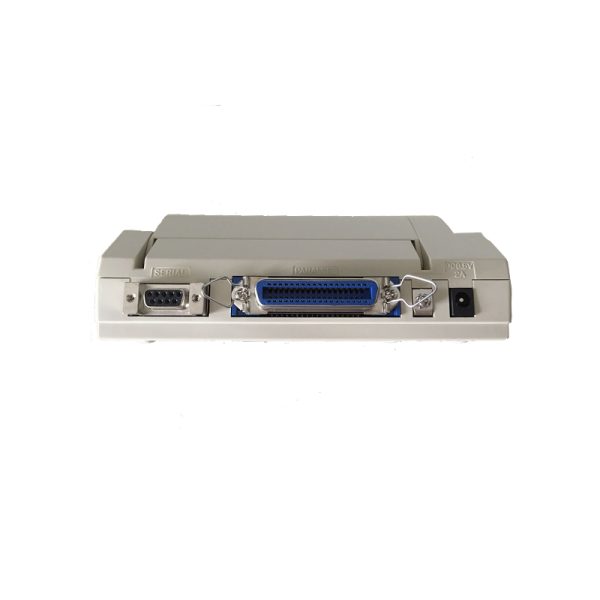

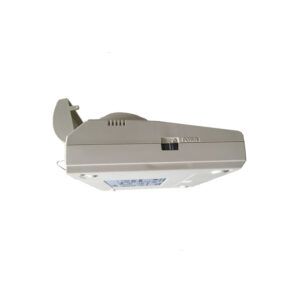

This Thermal Printer is DPU-414. It has Serial and Parallel printer port. This can be connect all Navtex Receiver and VHF DSC Radio. We can supply to world wide and we can give service in all Turkey Ports. Keep in touch with us.
PRINTER SPECIFICATIONS
Model number DPU-414-30B -E
Print method Thermal serial dot method
Image mode selection Swichable to character mode or bit-image
graphic mode through program.
Fonts
JIS special patterns: 222 kinds
International (Country) characters: 28 kinds
Special characters: 6 kinds
Total: 256 kinds
Total number of dots 9 x 320 dots / Iine
Character matrix 9 dot high x 7 dot wide
Character dimension 2.47 x I .88 mm: at 40 column (normal)
2.47 x 0.94 mm: at 80 column (condensed)
Columns 40 column (normal)
80 column (condensed)
Line space Programable (default: 6 dots)
Printing direction Unidirectional or bidirectional logical seek
Character mode
specifications
Printing speed Max. 52.5 cps (normal)
Max. 80 cps (condensed)
Total number of dots 8 x 320 dots / Iine (single density)
8 x 640 dots / Iine (double density)
Horizontal dot pitch 0.28 mm (single density)
0.14 mm (double density)
Vertical dot pitch 0.28 mm
Printing width 89.6 mm
Bit-image graphics
mode specifications
Printing direction Unidirectional logical seek
Life 500 thousand lines or over
(“8” 40 digit continuous printing)
Interface 8-bit parallel and RS-232C serial
External dimensions 160 mm x 170 mm x 66.5 mm
Mass approx. 580 g
(excluding the battery pack and thermal roll paper)
THERMAL PAPER SPECIFICATIONS
Product No. TP411 -28CL (TP-411 L)
Type Normal thermal paper
Paper width 112 mm
Roll external diameter 48 mm (maximum)
Paper length approx. 28 m
Paper thickness 64 ± 4 µm
BATTERY PACK (OPTION) SPECIFICATIONS
Product No. BP-4005-E
Battery type Ni-MH battery
Output voltage 4.8 V
Weight approx. 0.26 lbs (approx. 120 g)
1.4 AC ADAPTER (OPTION) SPECIFICATIONS
Model number PW-4007-U1-E PW-4007-E1-E
External dimensions
(W × D × H) 100 mm × 58mm × 49 mm 1 14 mm × 74 mm × 61 mm
Weight approx. 690ｇ approx. 1000ｇ
Cable length approx.1.9m approx.1.9m, 1.9m
Input power voltage AC 120 V AC 230 V
Frequency 60 Hz 50 Hz
Rated output voltage DC 6.5 V DC 6.5 V
Rated output current 2.0 A 2.0 A
Safety regulation UL, CSA CE
