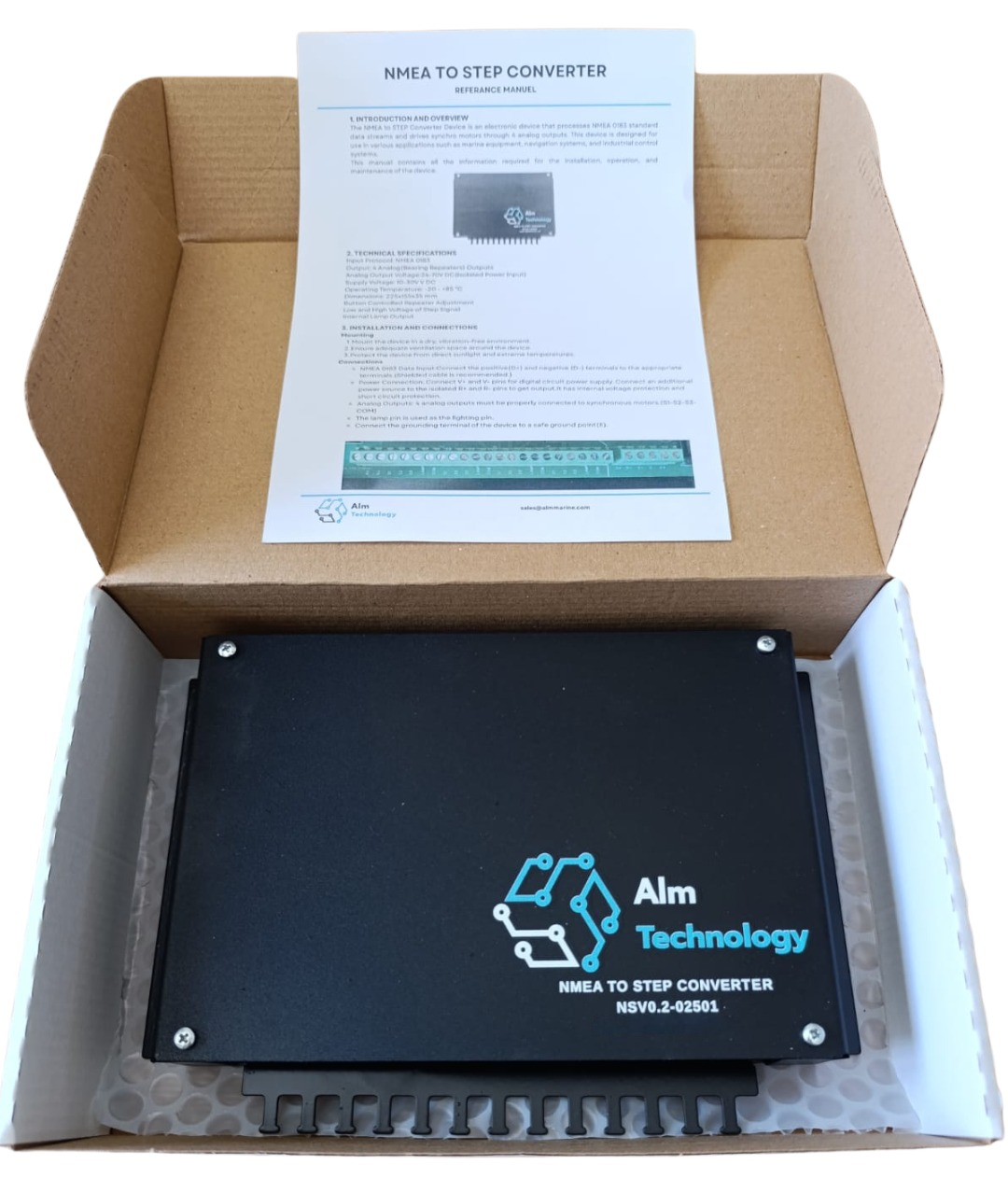

DEVICE: NMEA TO STEP DATA CONVERTOR
BRAND: ALM TECHNOLOGY
TYPE: NM-2561

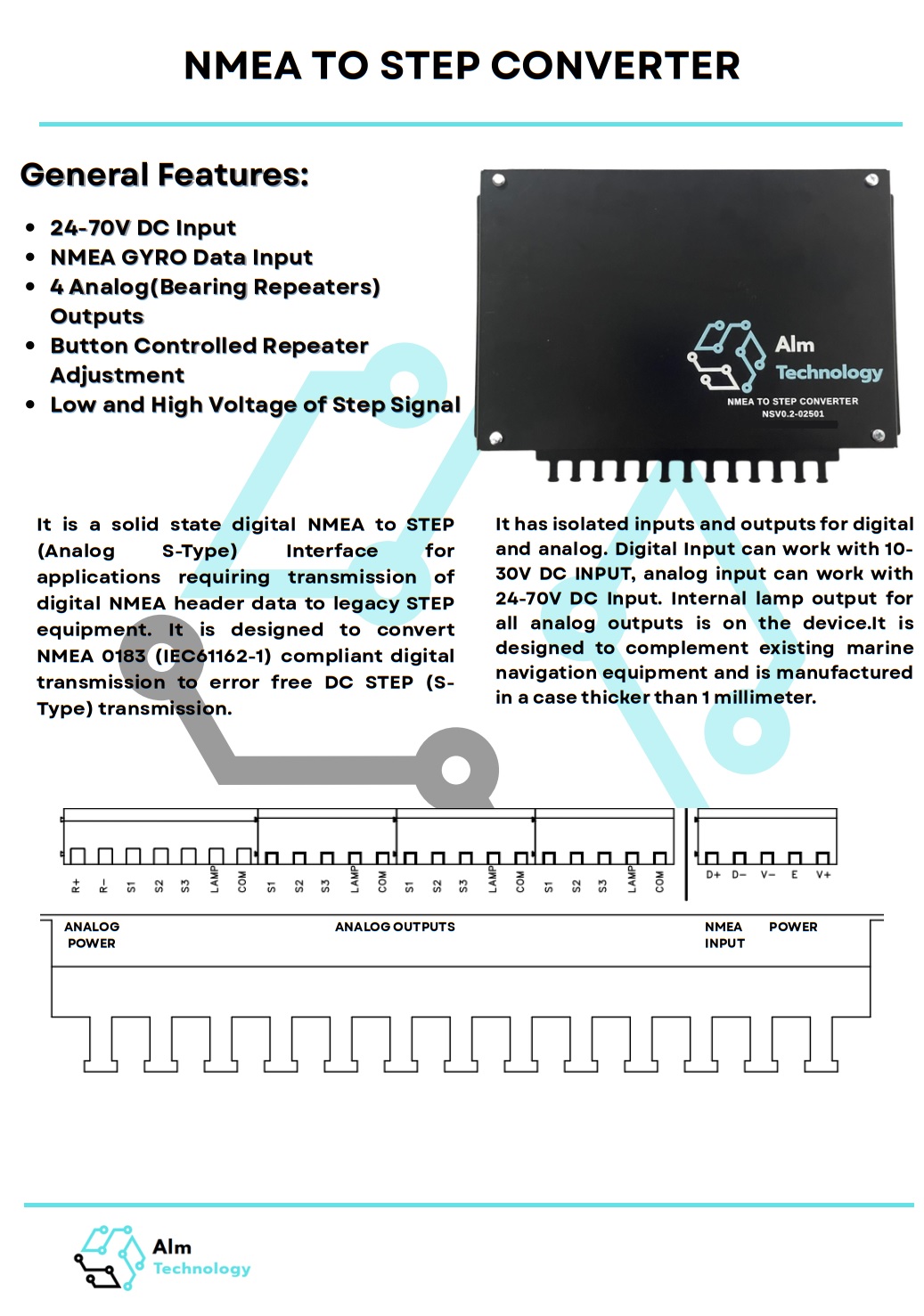

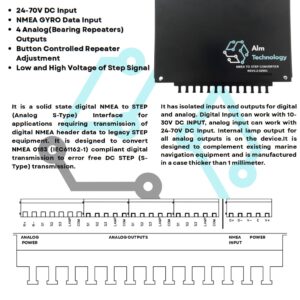

This is a solid-state digital NMEA to STEP (Analog S-Type) interface, designed for applications that require the transmission of digital NMEA heading data to legacy STEP-based equipment. It converts NMEA 0183 (IEC61162-1 compliant) digital data into error-free DC STEP (S-Type) analog signals.

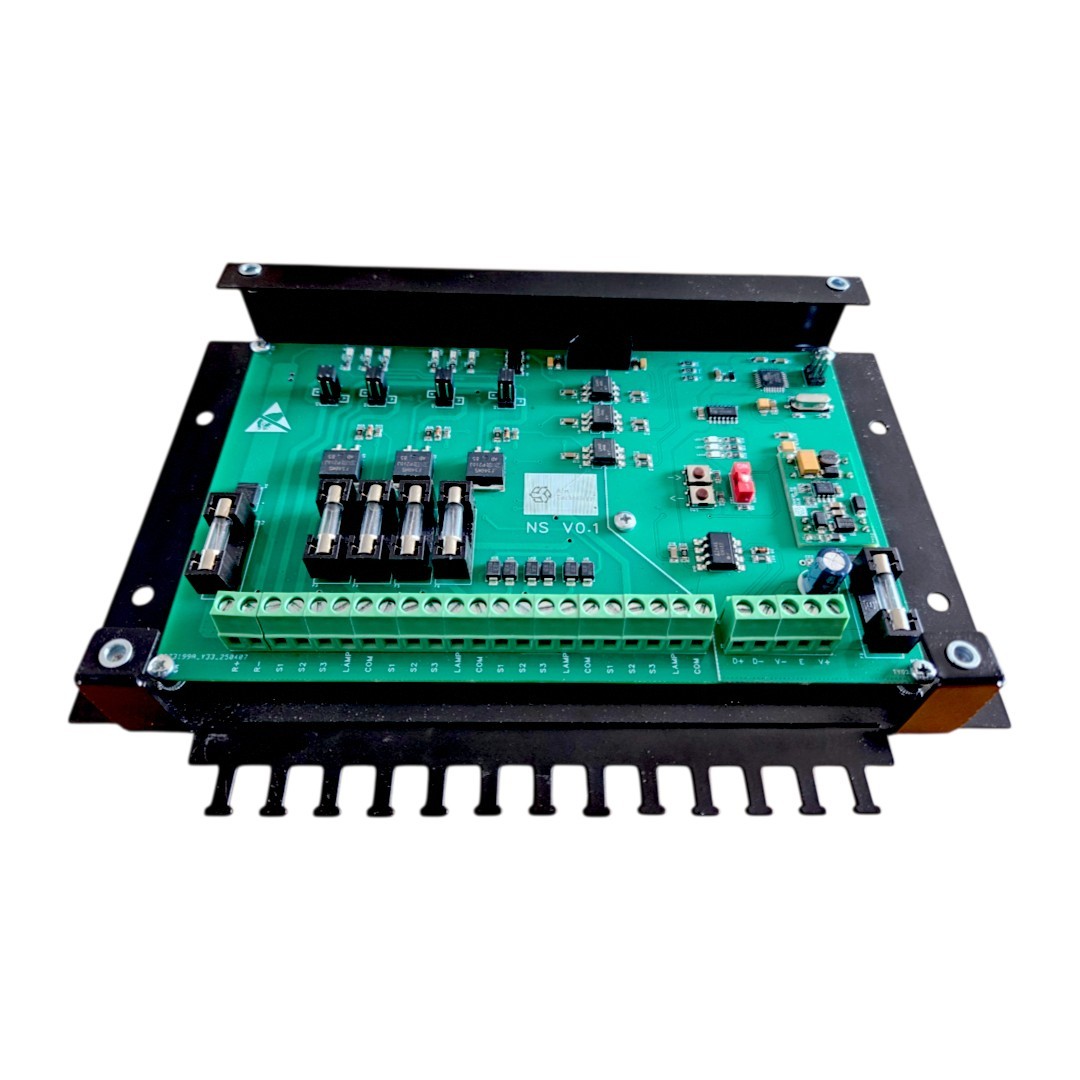

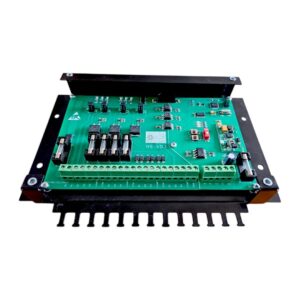

The device features fully isolated digital and analog inputs and outputs. The digital input operates within a range of 10–30 V DC, while the analog section supports a 24–70 V DC input. Internal lamp power for all analog outputs is integrated into the unit.
It is engineered to complement existing marine navigation systems and is housed in a robust enclosure with wall thickness greater than 1 mm, ensuring durability in harsh marine environments.
We offer global supply services and comprehensive support at all Turkish ports. Feel free to contact us anytime.
FEATURES
– 24–70 V DC Power Input
– NMEA Gyro Data Input (HDT)
– Supports up to 4 Analog Gyrocompass Repeater Outputs
– Button-Controlled Repeater Adjustment
– Low and High Voltage Step Gyro Signal Support
View / Download Product Manual PDF
The detailed manual for the ALM – NMEA TO STEP CONVERTOR can be downloaded from the link.
