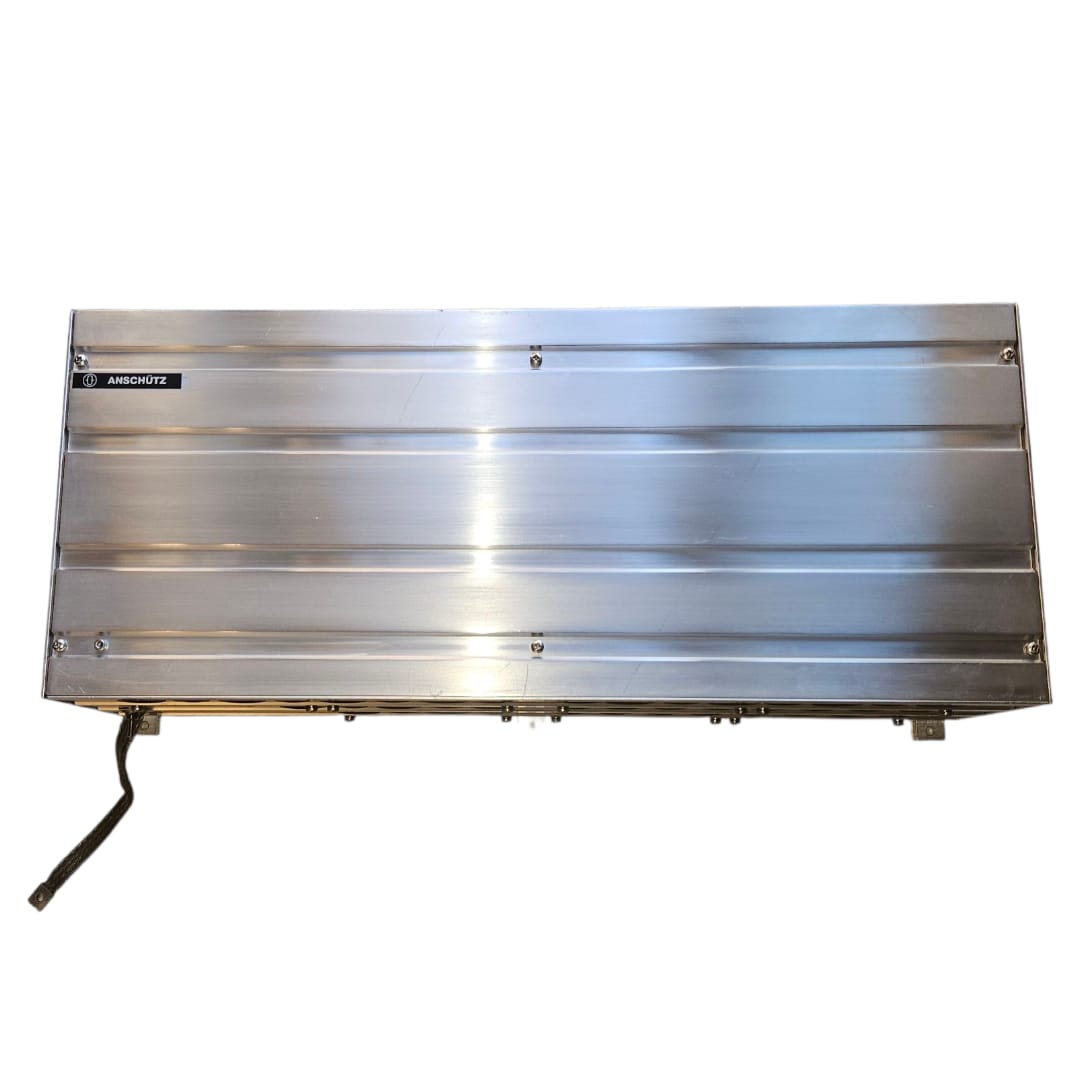

STANDARD 22 GYROCOMPASS DISTRIBUTION UNIT ( 138-118.NG001 E10 )

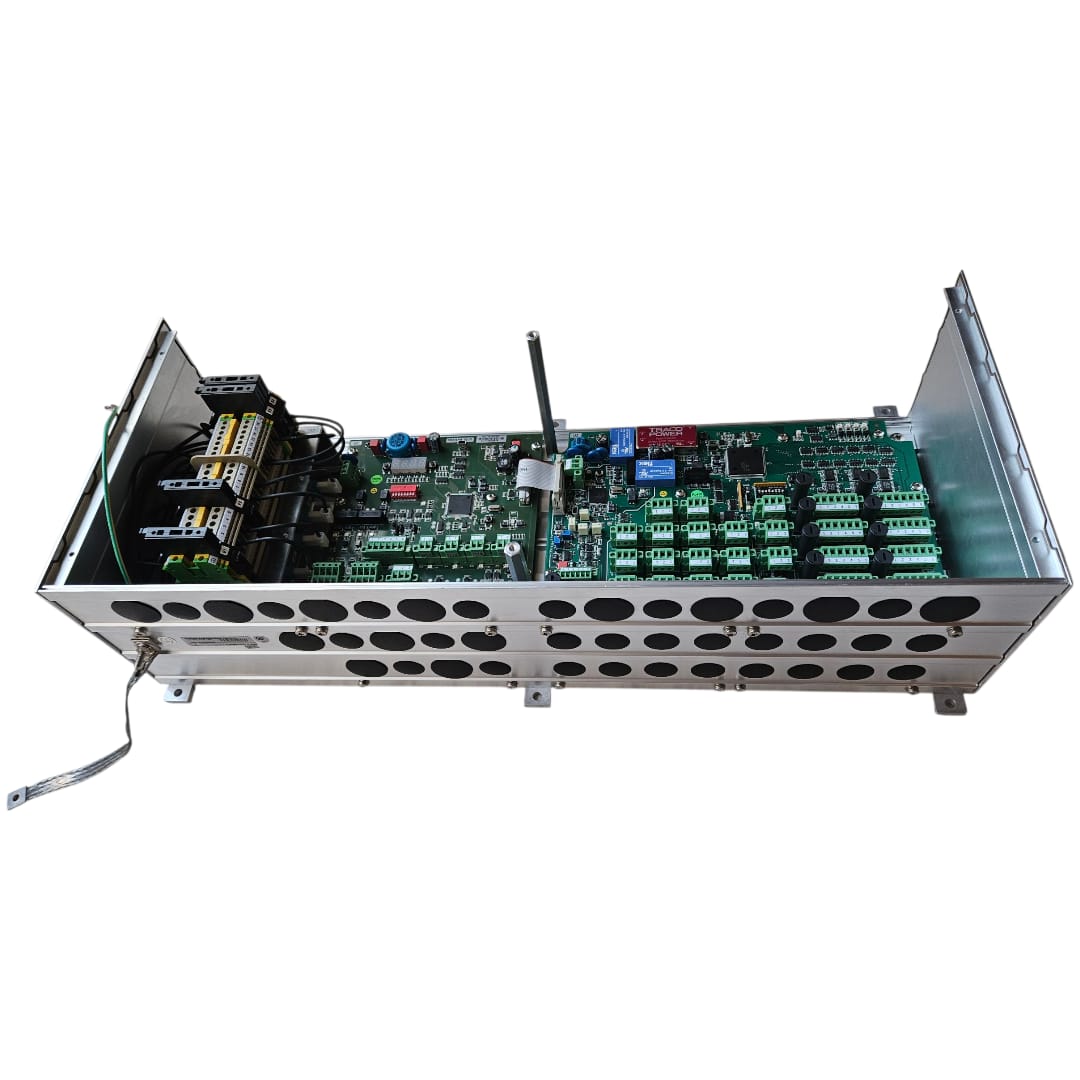

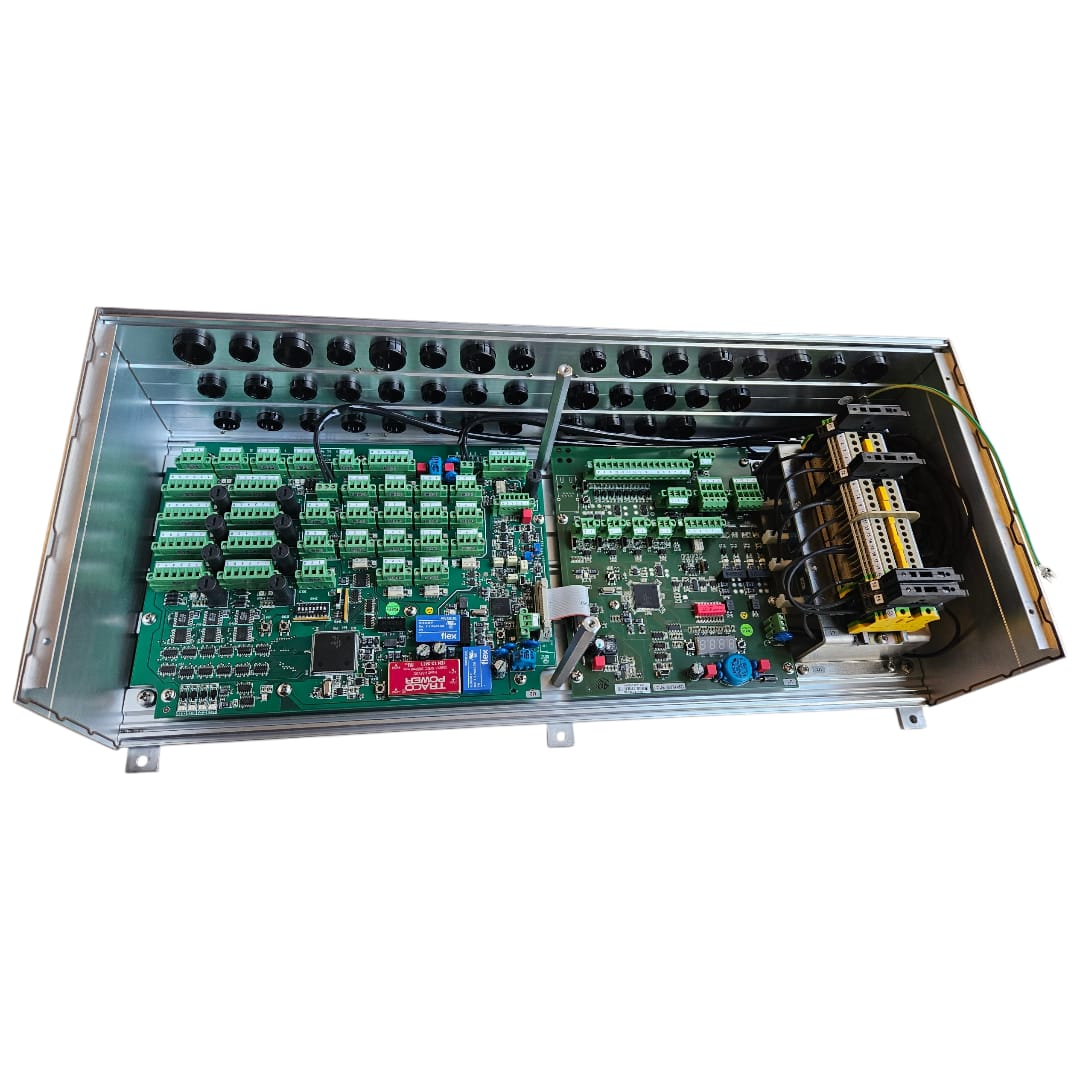

Anschütz ( Raytheon ) Unit 138-118 Distirbution Unit consists of an aluminium casting in which 2 printed circuit
board are integrated. It’s for Standard 22 Gyrocompass

• DEVICE: GYROCOMPASS, DISTRIBUTION BOX
• BRAND: (RAYTHEON) – ANSCHUTZ KIEL
• TYPE: STANDARD 22
• ITEM NUMBER: 138-118.NG001 E10

Including,

• I/O–PCB
• Interface PCB.

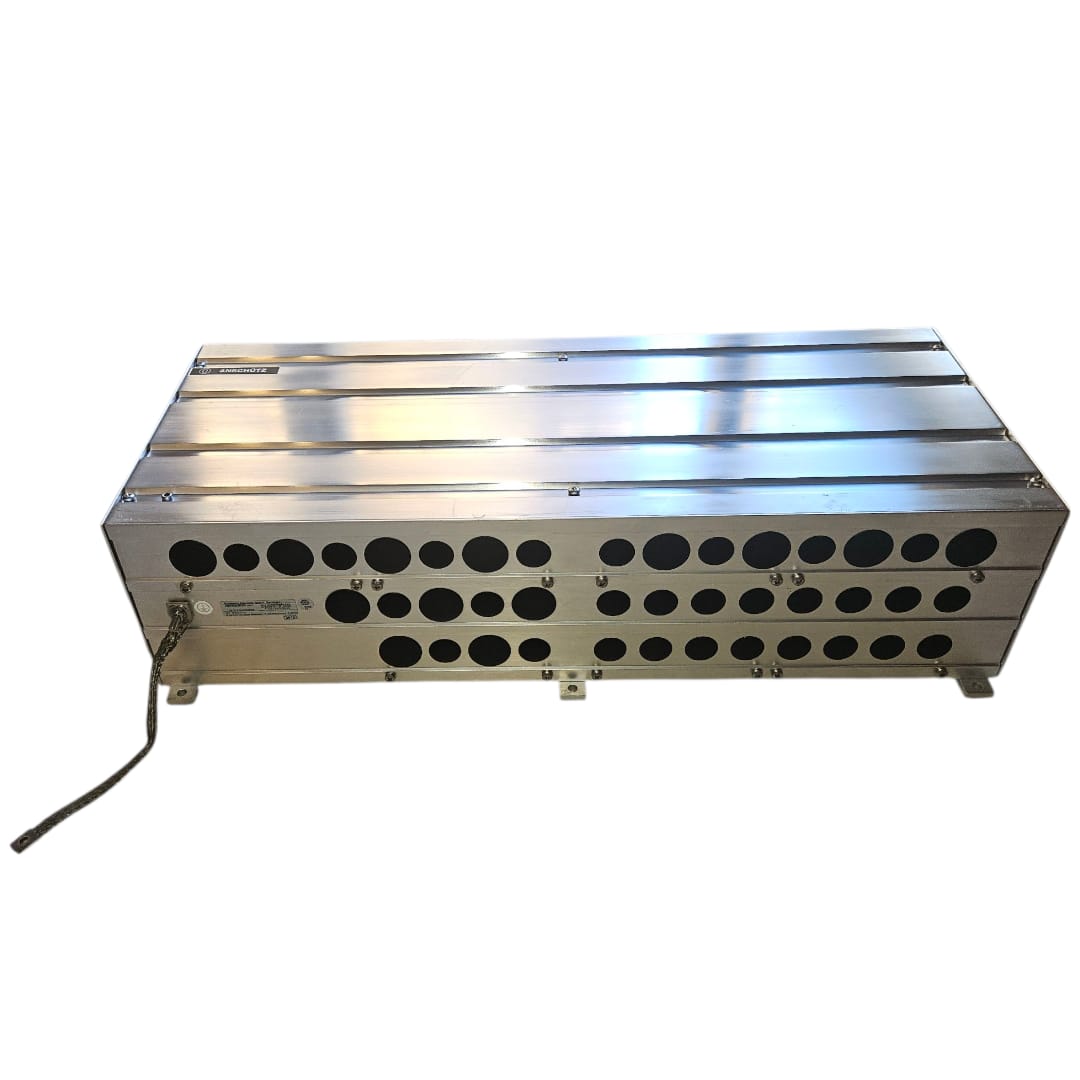

At the bottom of the casting there are 40 cable inlets for connecting repeaters, gyros and
other heading receivers and sensors.

The task of this distribution Unit is:

• Distribution of heading information to all connected heading receivers.
• System monitoring by alarm–and status messages.
• Gateway between DV–Bus and CAN–Bus.
• Power supply of all connected heading receivers and heading sources (sensors).
• Storing of values for variation and deviation for the magnetic compass.

There are no operating procedures during the normal operation of the distribution unit.
Only the setting to work procedure needs some settings performed by DIP-Switches at the CAN Network Modul Interface PCB.

Options are:
“Additional output box” for additional output signals.
“AC/DC–Converter” to generate the supply voltage for the distribution unit.
