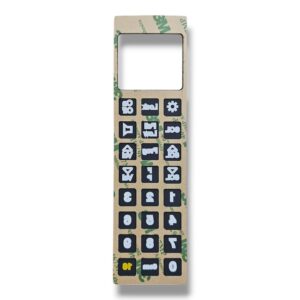

SKANTI VHF 3000 HANDSET KEYPAD

This Keypad panel for Skanti VHF 3000 Handset for VHF DSC Radiotelephone. When your product keypad is deformed, you can easily fix the problem by sticking this product on the device. Also we have in stock Handset, Antenna and installation cable.

PRODUCT: KEYPAD
BRAND: SKANTI
SUITABLE: VHF 3000 HANDSET

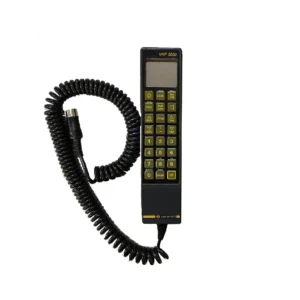

This product has been manufactured as a solution to the frequent keypad deformation issues encountered in Skanti VHF 3000 Remote Control Unit of Vhf radio. Although the buttons in this model are physical switches, the overlay keypad, which covers the buttons and indicates their functions, tends to suffer from physical wear and tear over time. This degradation negatively impacts the usability of the radio.

Commonly affected keys include CH16, Enter, Volume, Squelch, numeric keys, and the function buttons beside the screen. These sections often become torn or illegible, making it difficult to understand each key’s function during operation.

The recommended solution is to replace only the keypad overlay, not the entire device. The replacement process is straightforward and will help restore the device to its original performance and appearance.

We offer global supply services and comprehensive support at all Turkish ports. Feel free to contact us anytime.

By ordering this product and following the installation procedure provided below, you can effectively resolve this issue.

REPLACEMENT PROCEDURE

1- If the handset is plugged to the radio, it must be removed.
2- A visual inspection should be performed to check for any cracks or damage.
3- Use a utility knife to lift the old and worn VHF 3000 Handset from a corner, then peel it off by hand.
4- If possible, remove all remaining adhesive. If it cannot be removed, you may leave it as is.
5- Remove the protective adhesive backing from the new CU1000P Keypad Panel.
6- Carefully stick the keypad in place in one go, and gently press across the entire surface to ensure full adhesion.
