Description
DEVICE: IRIDIUM, TRANSCEIVER UNIT
BRAND: SAILOR, DEBEG, SAM, SKANTI
TYPE: SAILOR ST4120
PART NUMBER: 404120A-00500

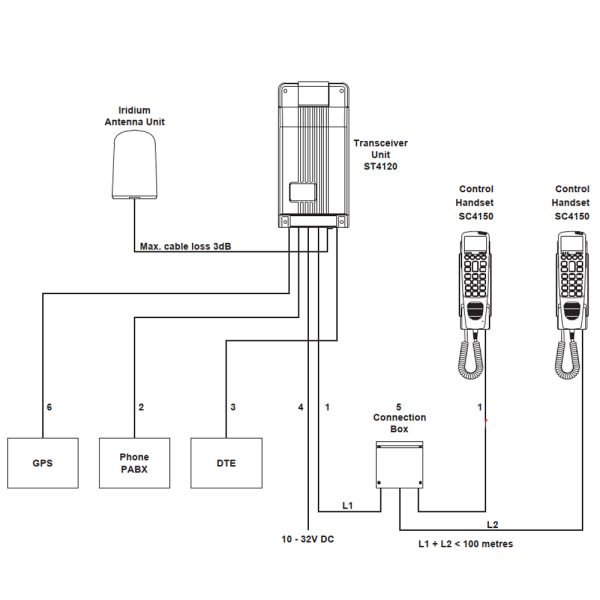

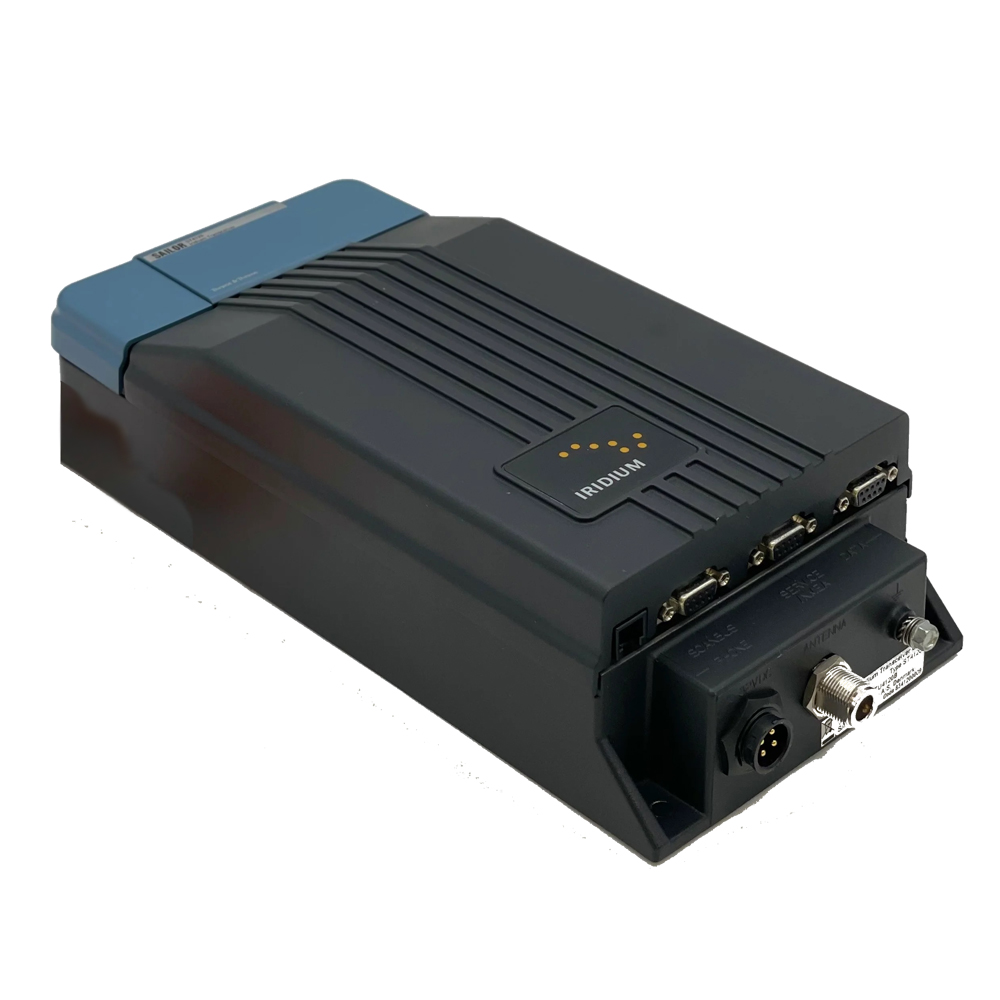

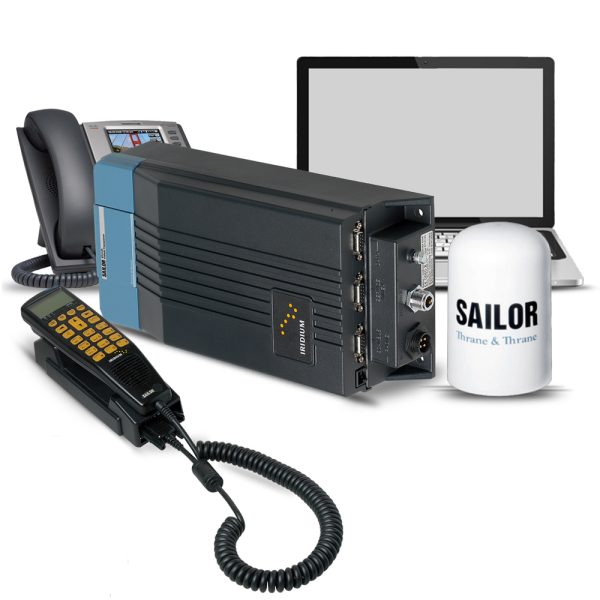

SAILOR ST4120 transceiver features metal protective housing for professional maritime installations. The easy access to the SIM card reader allows crew members straightforward insertion of their own SIM cards. It is easy to install and is the central hub of the entire SAILOR SC4000 Iridium system. Our stock is refurbished, cause this system is discontinued. If you need only handset cable, we can offer for handset cable. You can check our brand new cable in this link. We can supply to world wide and we can give service in all Turkey Ports. Keep in touch with us.
TECHNICAL SPECIFICATIONS
Frequency range
Terminal – Satellite 1616 -1626.5 MHz (L-Band)
Intersatellite 23.18 – 23.38 GHz (Ka-Band)
Modulation
Voice/data 2.4 kbit/s O-QPSK
Compressed data 10 kbit/s O-QPSK
POWER SPECIFICATIONS
Power supply 10 – 32V DC
Power consumption Tx: 25 W
Stand-by 8 W
ENVIRONMENTAL CONDITIONS
Temperature ADE -35°C to +55°C
Relative humidity Up to 95% at 40°C
Icing (survival only) Up to 25mm of ice
Precipitation Up to 100mm/hour
Wind (velocity) Up to 100 knots
Vibration IME: 2 – 50 Hz +/- 1g
EME: 4 – 33 Hz +/- 1g
ST4120 TRANSCEIVER UNIT
Interfaces
Handset RS-485, 8-wire, 600 Ω
Telephone/PABX Rj-11, 2-wire, 600 Ω
Data (for PC) RS232 (standard serial)
Position information NMEA 0183
Set-up, SMS configuration Via PC connection and software
Dimensions HxWxD: 309 x 150 x 87 mm
HxWxD: 12.2 x 5.9 x 3.4 inch
Weight 2.7 kg (6 lbs)
SC4150 CONTROL HANDSET
Dimensions HxWxD: 68.5 x 209 x 66.5 mm
HxWxD: 2.7 x 8.2 x 2.6 inch
SA4110 ANTENNA UNIT
General specifications Helical, omnidirectional antenna
210° (3 dB bandwidth)
Antenna dome Fiberglass
Link margin 16 dB
Elevation angle From any direction 20° from horizontal
Yaw Satellite elevation > 8°
Dimensions Ø: 96 mm (3.8”)
Height: 140 mm (5.5”)
