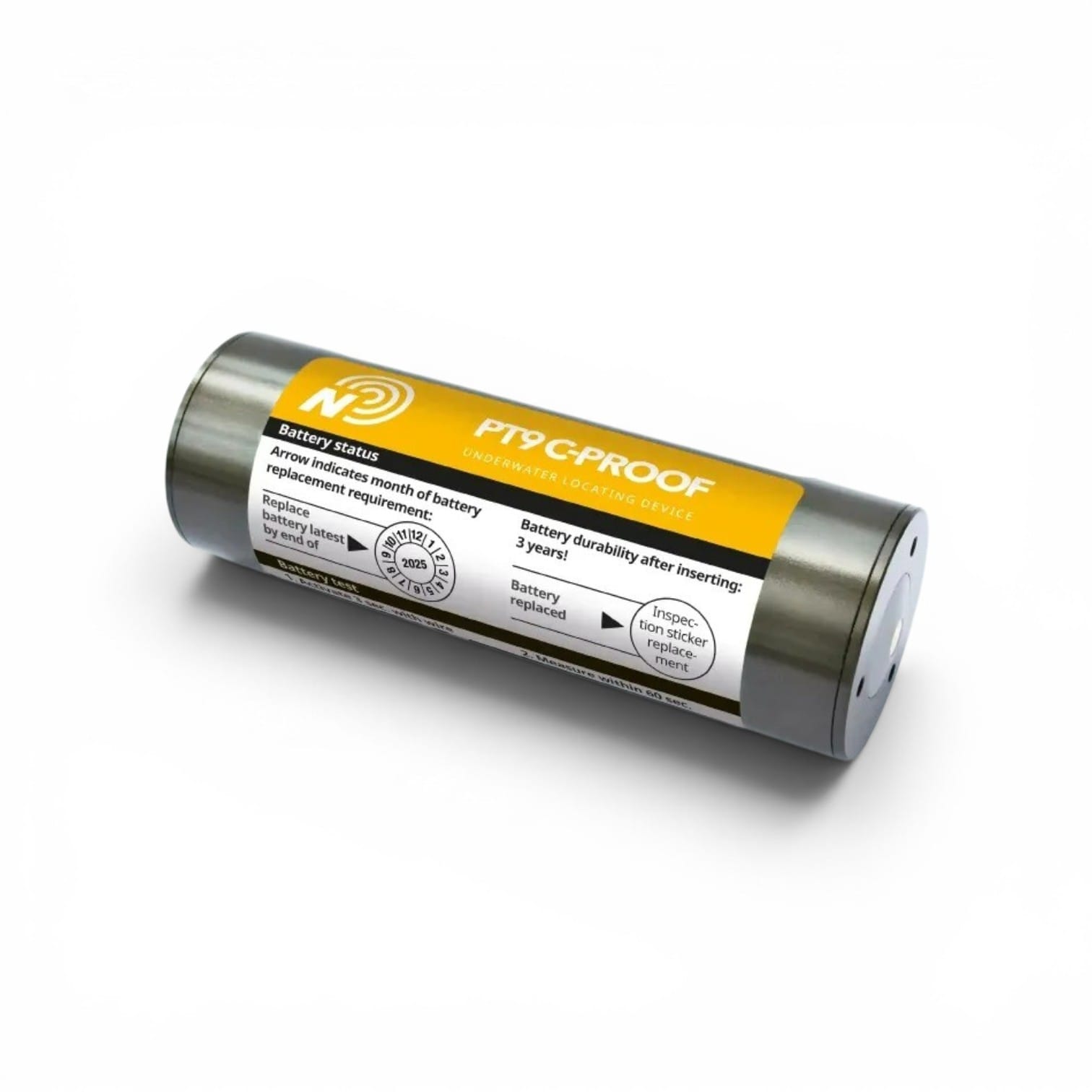

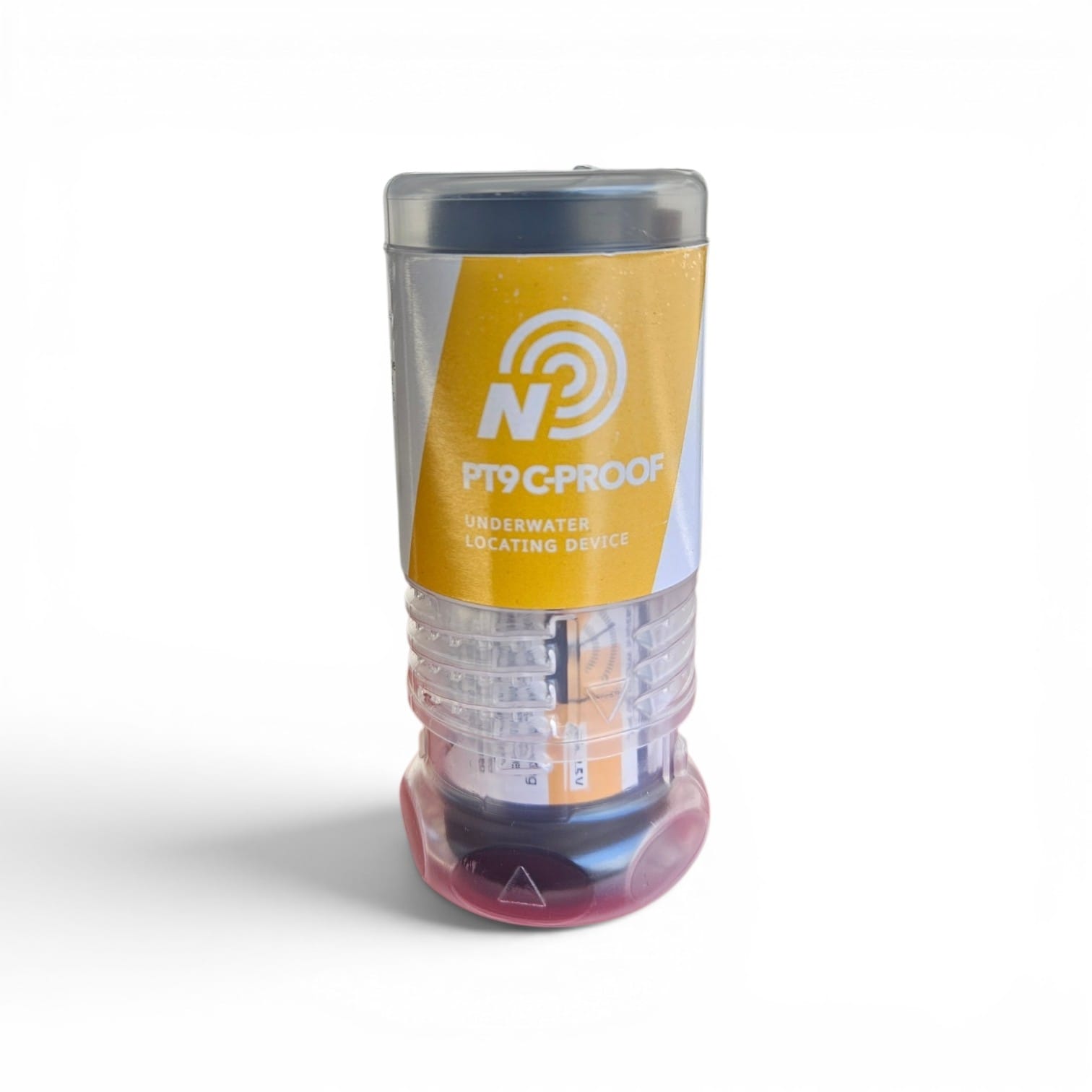

NOVEGA PT9 C-PROOF Underwater Locator Beacon (ULB) for VDR & S-VDR
The NOVEGA PT9 C-PROOF has been one of the most trusted underwater locator beacons in the maritime industry for nearly two decades. Developed specifically for VDR and S-VDR Final Recording Media (FRM), it provides dependable acoustic transmission for a minimum of 30 days after activation by fresh or seawater immersion.
Designed for continuous exposure to demanding marine conditions, the PT9 C-PROOF features enhanced corrosion protection, durable construction, and a patented intelligent water activation system that helps prevent unwanted activation caused by rain, spray, or condensation. This significantly extends battery service life while improving operational reliability.
The beacon is suitable for operation at depths of up to 6,096 meters (20,000 ft) and complies with internationally recognized maritime standards, making it an ideal replacement or spare beacon for many VDR manufacturers.
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Underwater Locator Beacon (ULB) |
| Application | VDR / S-VDR Protective Data Capsule |
| Operating Frequency | 42 ±1 kHz |
| Operating Life | Minimum 30 Days |
| Activation | Automatic Water Activation |
| Operating Depth | Up to 6,096 m (20,000 ft) |
| Operating Temperature | -55°C to +85°C |
| Length | 100 mm |
| Diameter | 33 mm |
| Weight | 173 g |
| Shelf Life | 3 Years |
| Battery | Field Replaceable Lithium Metal |
| Transport Classification | UN3091 / PI970 |
Certifications
- SAE AS8045
- IEC 60945 Edition 4
- BSH Type Approved
- RoHS Compliant
- REACH Compliant
Typical Applications
- Voyage Data Recorder (VDR)
- Simplified Voyage Data Recorder (S-VDR)
- Final Recording Media (FRM)
- Merchant Vessels
- Offshore Vessels
- Naval Support Vessels
- Passenger Ships
- Commercial Fleet Maintenance
The PT9 C-PROOF has earned its reputation through years of reliable service aboard thousands of commercial vessels worldwide. Its intelligent activation technology, exceptional corrosion resistance, and compliance with international maritime standards make it a dependable solution for protecting critical voyage recorder data in emergency situations.
Turkey Marine Service supplies new and genuine NOVEGA PT9 C-PROOF Underwater Locator Beacons for vessels worldwide.
For pricing, availability, battery replacement kits, compatibility verification, or international shipping, please contact our sales team.
View / Download Product Datasheet PDF
The detailed datasheet for the PT9 C-Proof Beacon Battery can be downloaded from the link.
