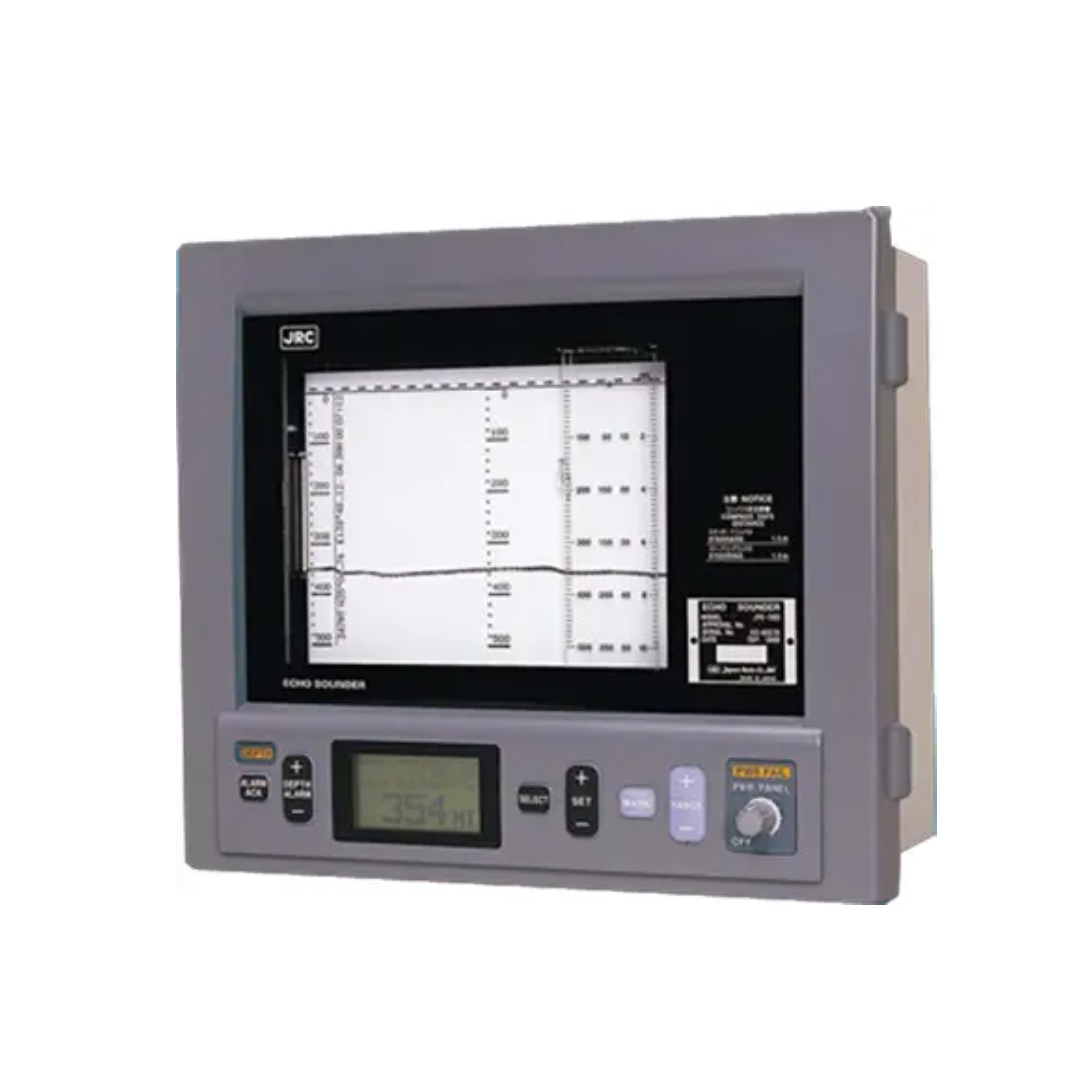

DEVICE: ECHOSOUNDER, RECORDING PEN
BRAND: JRC
TYPE: JFE-582, JFE-585, JFE-570

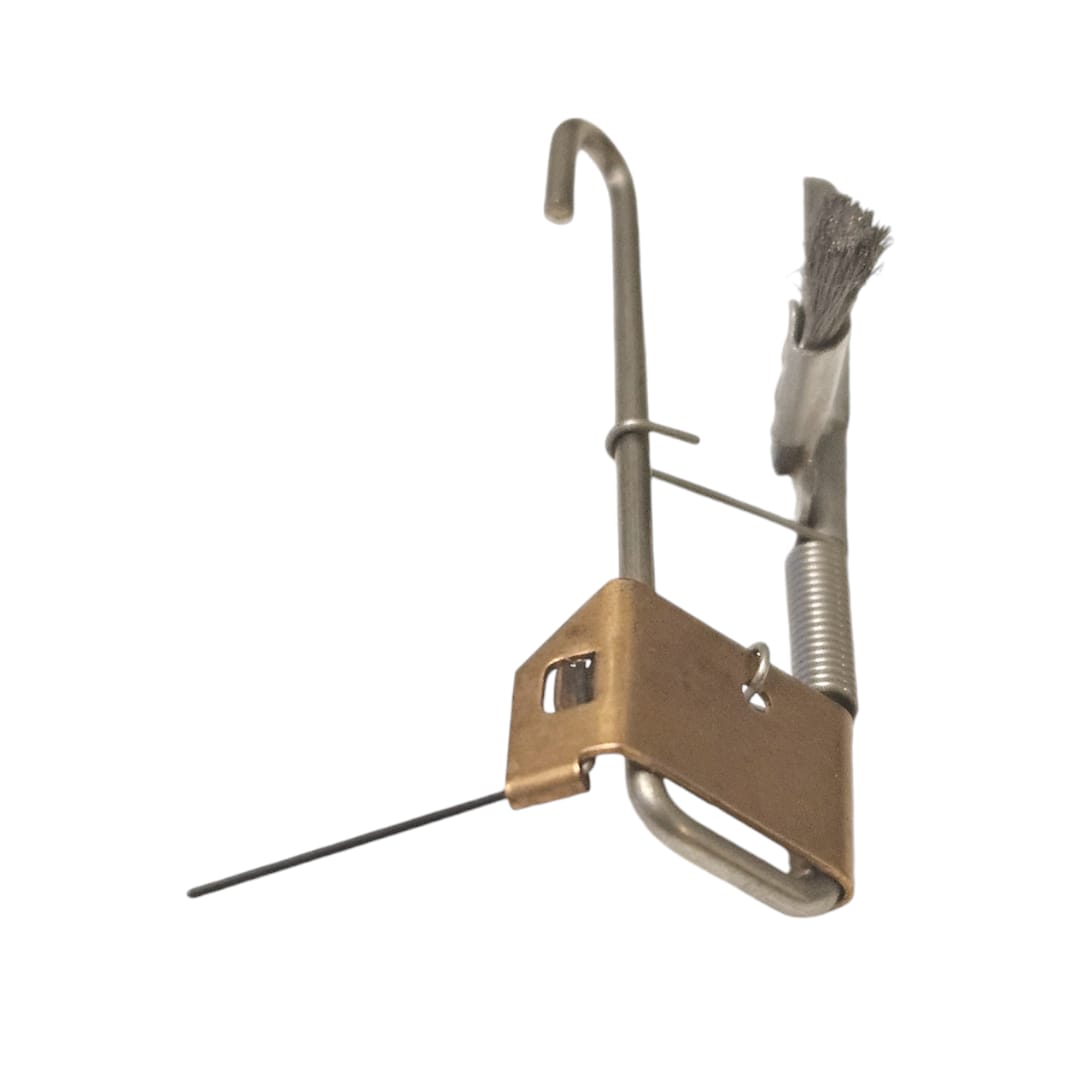

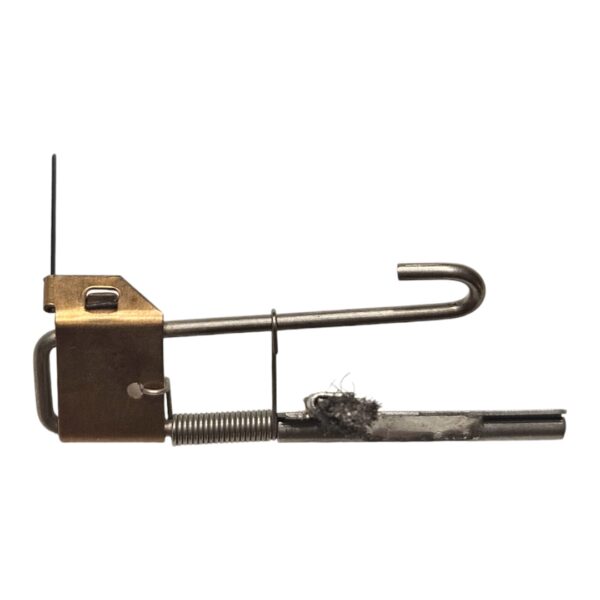

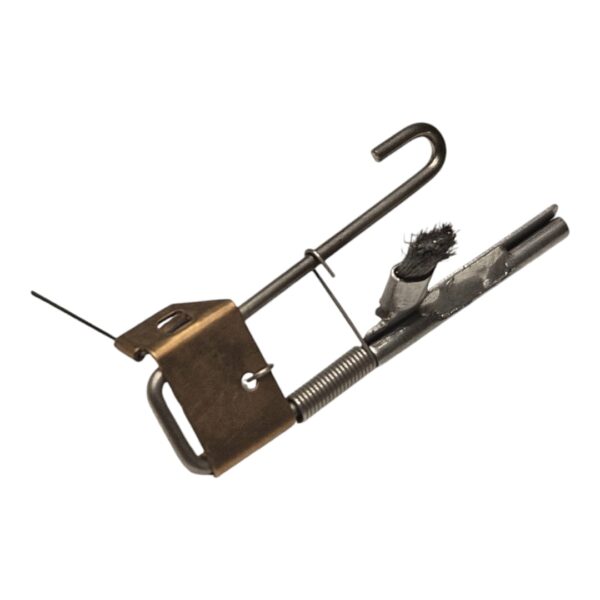

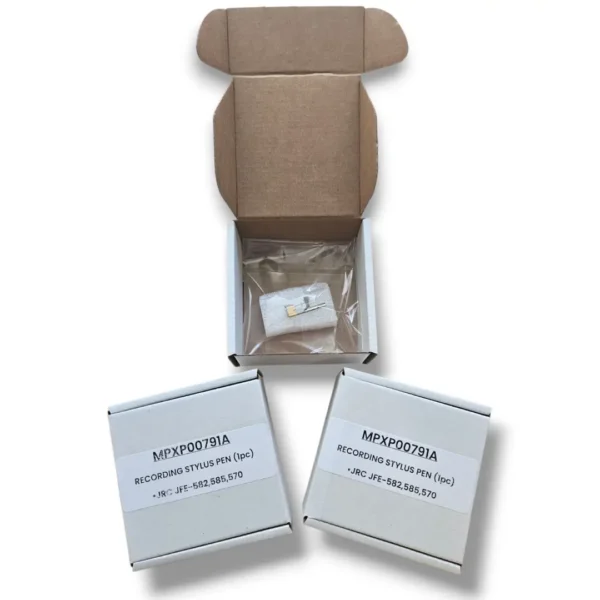

MPXP00791A Recording Pen Stylus Needle for JRC JFE-582, JFE-585, JFE-570 Echosounder. We can supply Motor, Belt, Needle, Paper and all spared for this echosounder.
We offer global supply services and comprehensive support at all Turkish ports. Feel free to contact us anytime.

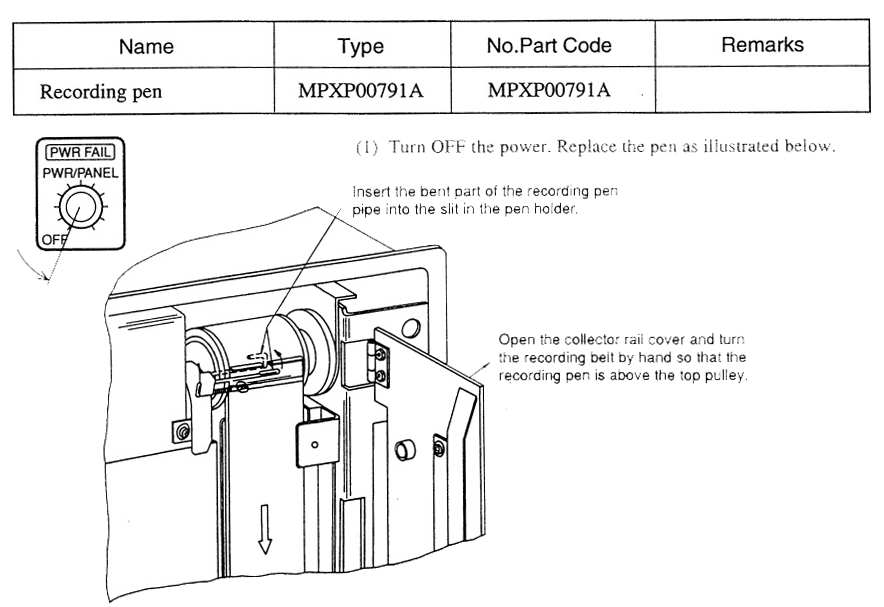

REPLACING RECORDING PEN FOR JFE582/585
The recording pen wears as it is used. When it has worn down to about I mm, be sure to replace with the pen specified by JRC.
(1) Turn OFF the power. Replace the pen as illustrated below.
(2) Insert the bent part of the recording pen pipe into the slit in the pen holder.
(3) Open the collector rail cover and turn the recording belt by hand so that the recording pen is above the top pulley.
View / Download Product Manual PDF
The detailed manual for the JRC JFE-582/585 Echosounder can be downloaded from the link.
