TOKYO KEIKI REPEATER RP-41 - TURKEY MARINE SERVICE

DEVICE: GYROCOMPASS, REPEATER

BRAND: TOKIMEC, TOKYO KEIKI, YOKOGAWA

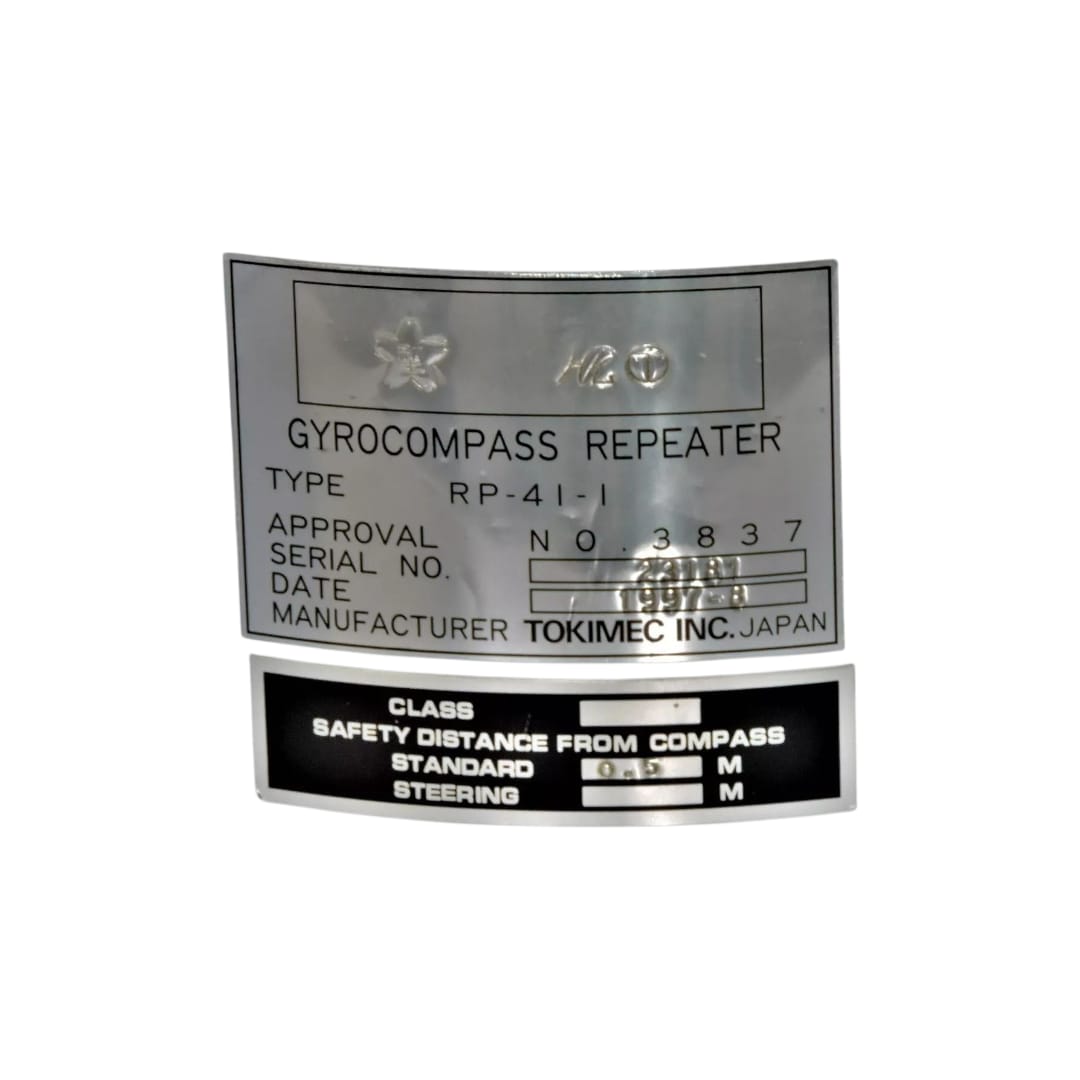

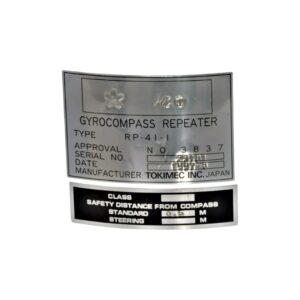

TYPE: RP-41-1

This Analog Gyro Compass Repeater RP-41 is for TOKYO KEIKI, TOKIMEC and YOKOGAWA.

RP-41-1 Repeater is working with Step Gyro Signal and It’s running with 24 V, 90X ratio.

We offer global supply services and comprehensive support at all Turkish ports. Feel free to contact us anytime.

OPERATION

1- Turn OFF the repeater switch, and synchronize the repeater card with the reading of the master compass by the synchronizing knob. Turn ON the repeater switch.
2- The repeater card is synchronized with the master compass at every 4 degrees. Make sure the complete synchronization.
3- If there is any difference between the two readings, synchronize again.

MAINTENANCE AND INSPECTION

1. Routine Inspection
– Make sure the repeater compass reading coincides with that of the master compass.

2. Maintenance
– Apply grease sometimes on the gimbal shaft of the repeater mounting BB type and BH type to rotate the gimbal smoothly.
– When the inside surface of the repeater glass is dim, select a fine and dried day, and open the back cover of the repeater compass and leave as it is for several hours. Close the cover when the water drop inside the glass has disappeared.
– To replace the lamp, open the back cover of the repeater compass and replace the lamp inserted in the socket.

3. Periodical Inspection
– Many packings for water-proof construction are used in the repeater compass. These packings deteriorate while using for a long time. It is recommended to replace packings at the periodical inspection for the gyro compass.

TROUBLESHOOTING

1. The repeater reading does not agree.
– Check the repeater fuse in the master compass, and synchronize the readings.

2. The repeater does not follow up.
– Check the repeater fuse in the master compass.
– When the fuse is normal, contact the service station to replace the repeater motor.

3. Illumination is no good.
– Open the back cover of the repeater compass and replace the lamp inserted in the socket with a spare lamp.

4. Inside surface of glass is dim.
– Open the back cover of the repeater compass in a fine and dried day, and leave as it is for several hours.
– Close the cover when the water drop inside the glass has disappeared .

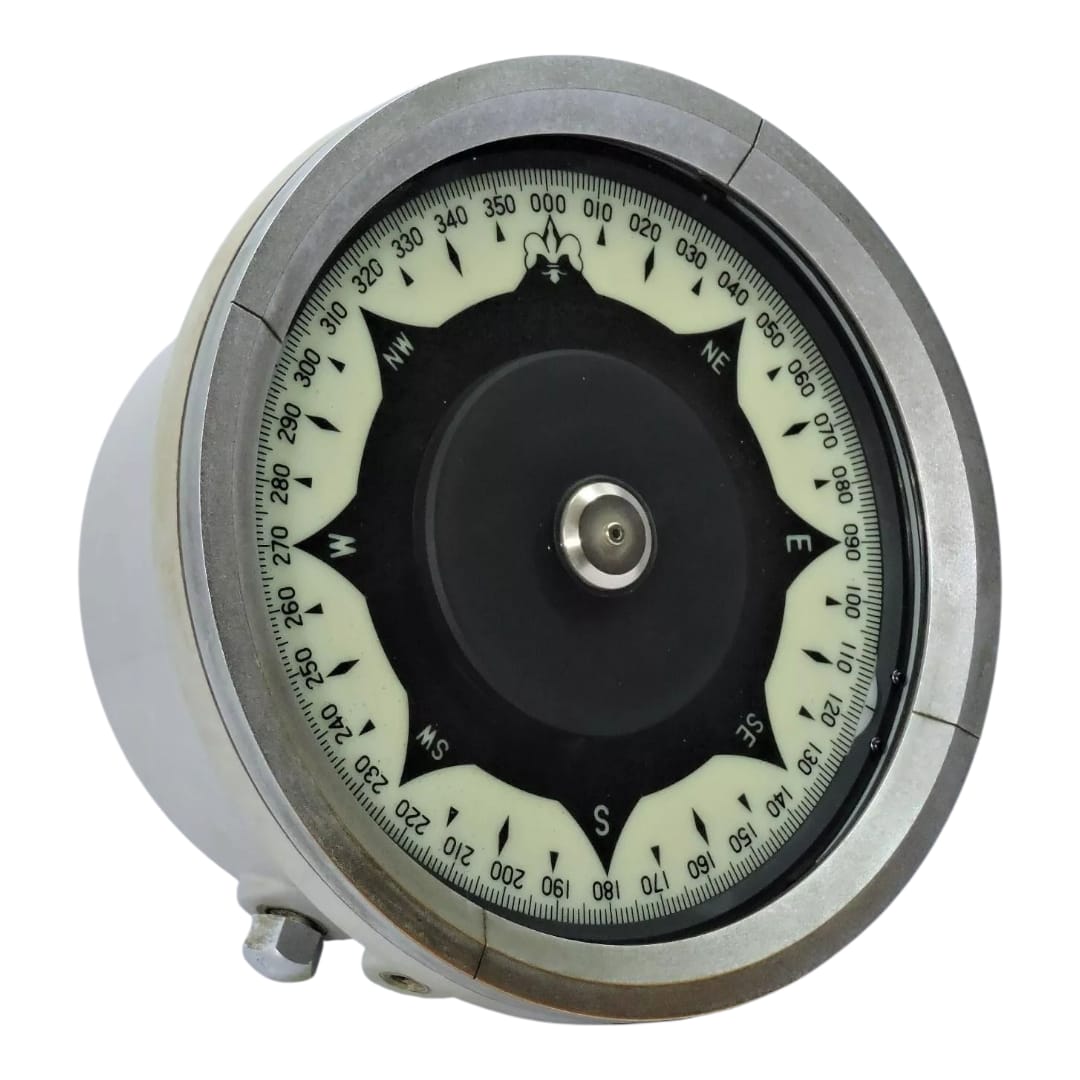

RP-41-1 REPEATER GENERAL VIEW
