Description
DEVICE: NAVTEX
BRAND: SAMYUNG
TYPE: SNX-200
This NAVTEX Receiver is SAMYUNG SNX-200 We can supply to world wide and we can give service in all Turkey Ports. Keep in touch with us.

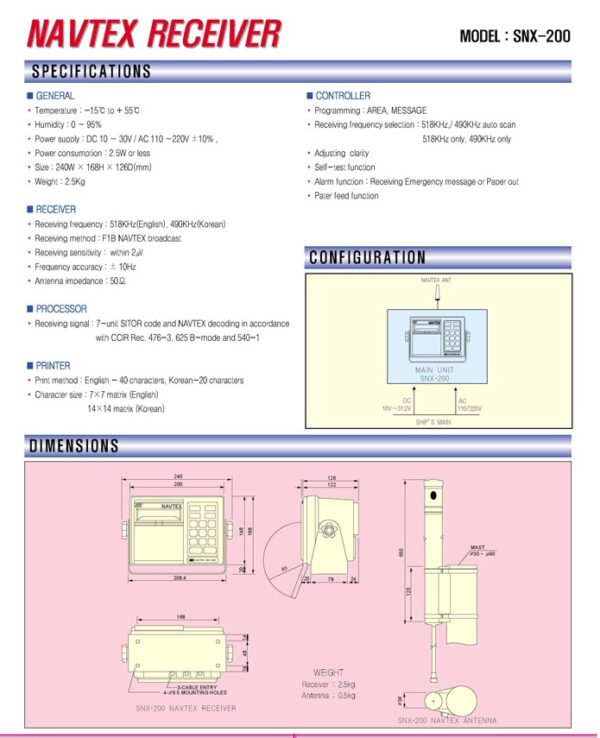

SPECIFICATIONS
GENERAL
Temperature : -15℃ to + 55℃
Humidity : 0 -95%
Power supply : DC 10 – 30V / AC 110 -220V ±10%
Power consumption : 2.5W or less
Size : 240W × 168H × 126D(mm)
Weight : 2.5Kg
RECEIVER
Receiving frequency : 518KHz(English), 490KHz(Korean)
Receiving method : F1B NAVTEX broadcast
Receiving sensitivity : within 2㎶
Frequency accuracy : ± 10Hz
Antenna impedance : 50 Ohm
PROCESSOR
Receiving signal : 7-unit SITOR code and NAVTEX decoding in accordance with CCIR Rec. 476-3, 625 B-mode and 540-1
PRINTER
Print method : English – 40 characters, Korean-20 characters
Character size : 7×7 matrix (English)
14×14 matrix (Korean)
CONTROLLER
Programming : AREA, MESSAGE
Receiving frequency selection : 518KHz,/ 490KHz auto scan
518KHz only, 490KHz only
Adjusting clarity
Self-test function
Alarm function : Receiving Emergency message or Paper out Pater feed function
