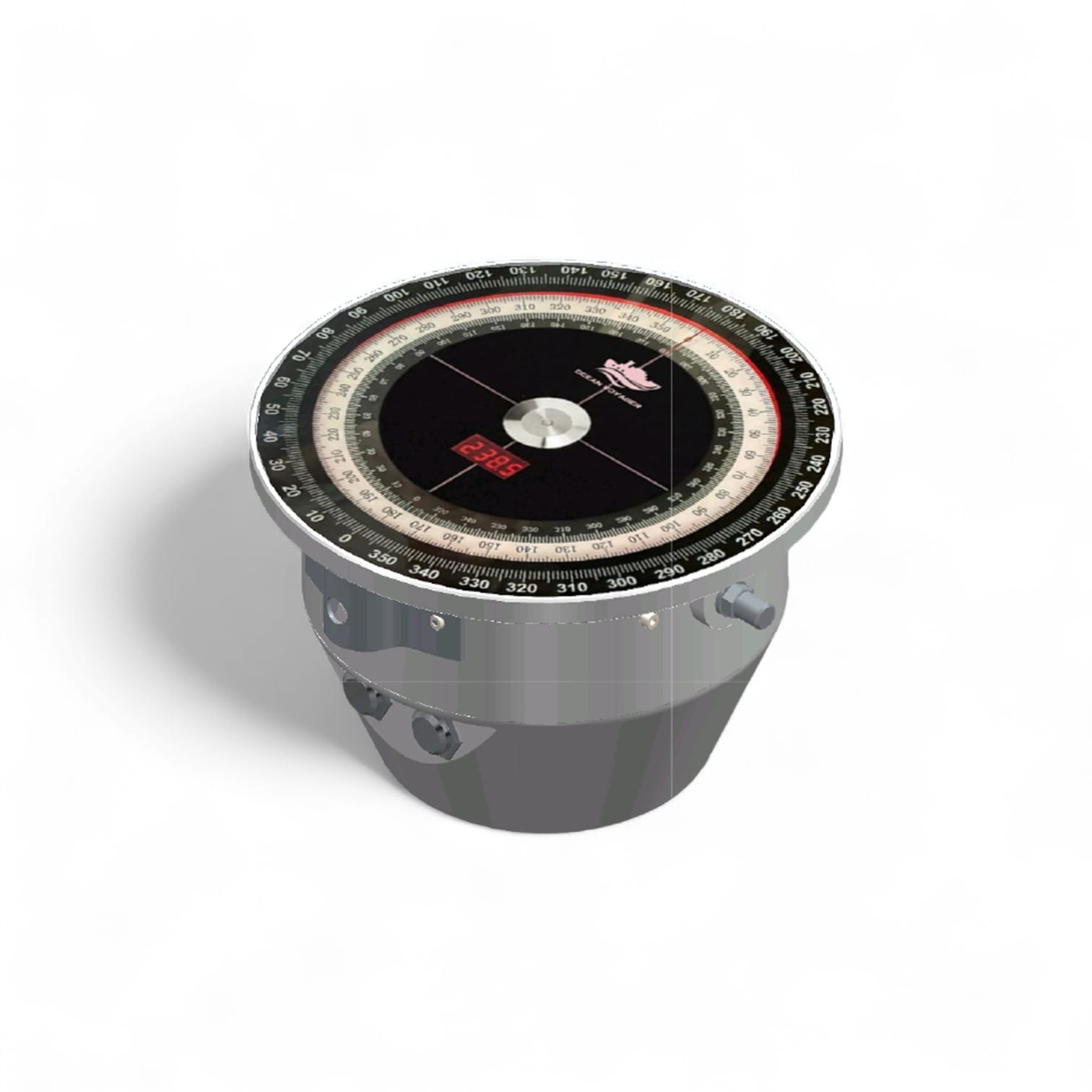

OCEAN VOYAGER HDG-100 UNIVERSAL GYRO REPEATER

DEVICE: BEARING REPEATER COMPASS

BRAND: OCEAN VOYAGER

PRODUCT NUMBER: HDG-100

SUITABLE: ALL NMEA GYROCOMPASS ( ANSCHUTZ 133-407, SPERRY MARINE 4881-AB, ETC… )

OCEAN VOYAGER HDG-100 UNIVERSAL GYROCOMPASS BEARING REPEATER

The OCEAN VOYAGER HDG-100 is a professional-grade gyrocompass repeater designed for reliable heading display on marine vessels. It is fully compatible with all standard NMEA gyrocompass outputs, making it a universal solution for both new installations and retrofit projects.

Engineered for accuracy and durability, the HDG-100 receives NMEA 0183 heading data (HDT/HDM/HDG/VTG) from the main gyrocompass and provides a clear, stable heading indication at remote locations such as bridge wings, chart rooms, or control panels.

Features

Universal compatibility with all NMEA gyrocompasses
Supports leading brands including Anschütz 133-407, Sperry Marine 4881-AB, and equivalents
Precise and stable real-time heading display
Marine-grade construction for continuous operation
Ideal for merchant ships, offshore vessels, yachts, and workboats
Simple integration with existing NMEA 0183 networks

Applications

Bridge and bridge wing heading repeaters
Navigation and conning systems
Backup or secondary heading display

Technical Overview

Device Type: Gyrocompass Repeater
Input Signal: NMEA 0183 – RS232/RS422
Nmea Sentences: HDT, HDM, HDG, VTG
Baudrates: 2400, 4800, 9600, 19200, 38400 bps
Voltage: 18-32 VDC

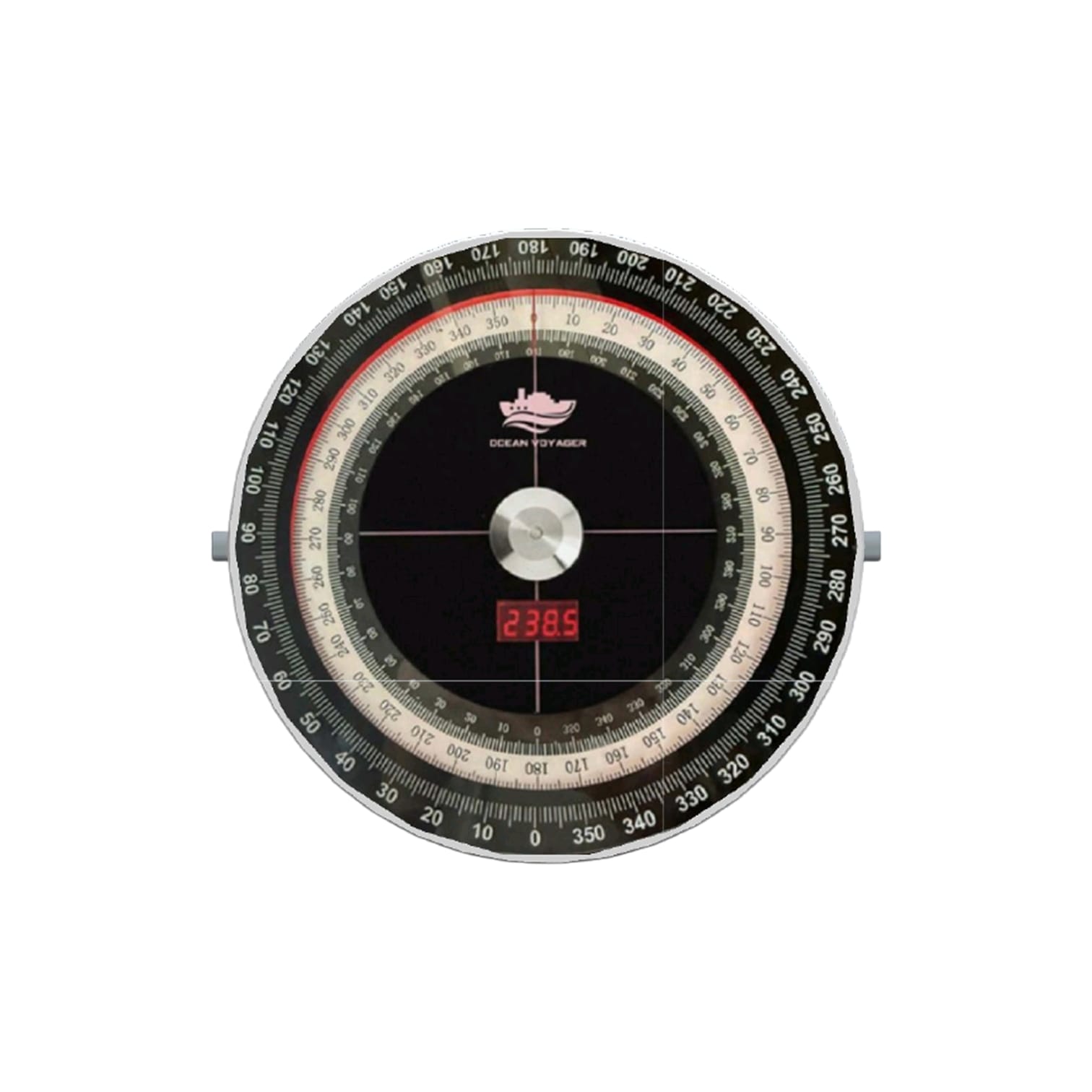

Screen: Mechanical 360 Card and Digital Heading Red LED Display
Button: 2 Button for Menu and Brightness Adjustment
Dimensions: 244 mm x 168 mm, Estimated 7 Kg.

Part List

Main Unit HDG-100 with cables
Foundation Unit with all installetion spares ( Optional )

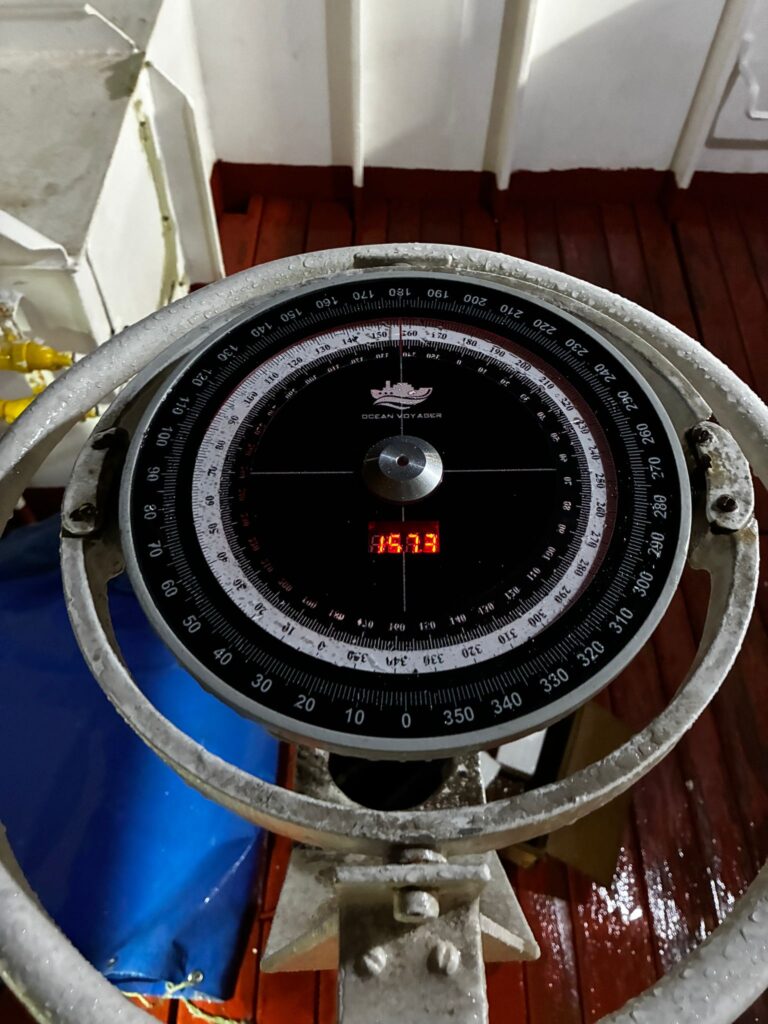

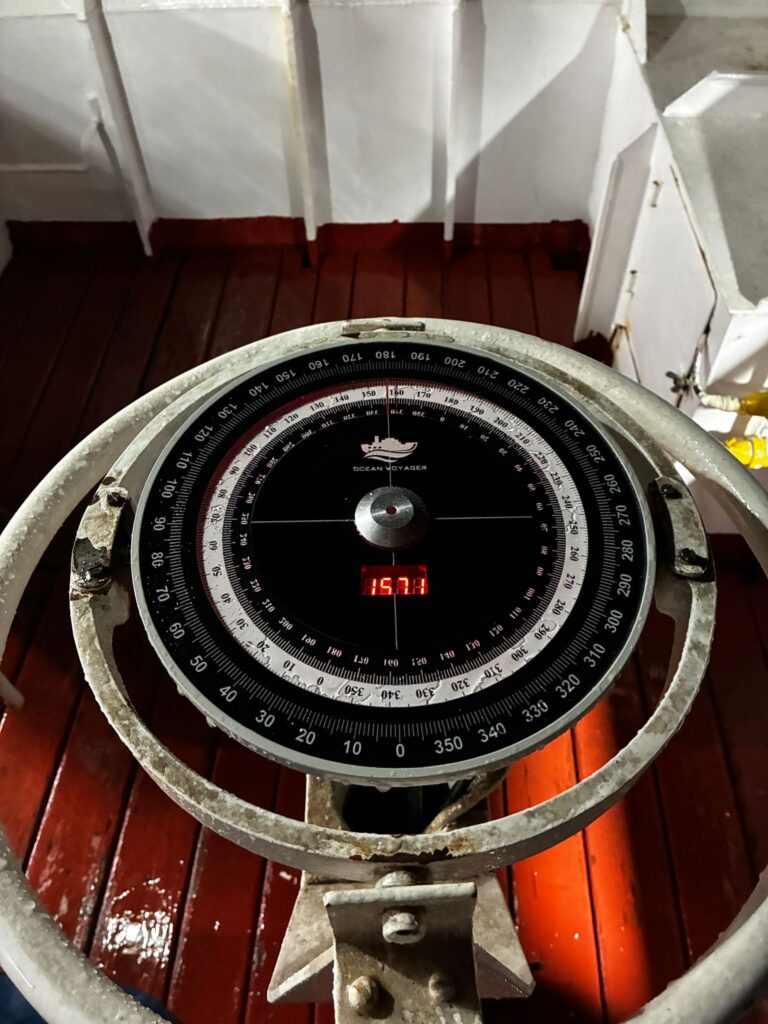

Those photographs were taken during the installation carried out by WESMARINE.

The Ocean Voyager HDG-100 Universal Gyro Repeater delivers dependable performance, wide compatibility, and straightforward installation, making it a cost-effective and future-proof choice for marine navigation systems.
