NSR VHF RADIO NVR-3000

DEVICE: VHF RADIO

BRAND: NSR

TYPE: NVR-3000



This VHF DSC RADIO  is NSR NVR-3000, TX-RX-DSC Both Antenna NVA-100,  Handset with cradle NHS-200 and optional Thermal Printer NPT-100 for DSC printer.

We offer global supply services and comprehensive support at all Turkish ports. Feel free to contact us anytime.



SPECIFICATIONS

• TX Frequency:  156.025～157.425MHz
• RX Frequency:  156.050～163.275MHz
• Working Channel:  ITU
• DSC Watch CH:  CH70
• TX Power:  25W(high)/1W(low)
• RX Sensitivity:  ≤2μV(SINAD=20dB)
• Display:  7 inch，color LCD，touch screen
• GNNS Input:  RS422，4800bps
• VDR Output:  600 Ω balanced
• BAM/INS I/O:  RS422,4800bps
• Printer I/O:  RS232,4800bps
• Power Supply:  24 VDC (max 4A)

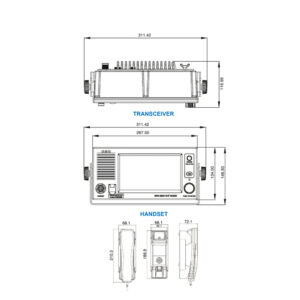

• Size: 146.9 (H)×311.4 (W)×117 (D) mm (Transceiver)
• Weight: 3kg
• IP Grade: IP22: Transceiver, Handset；IP66: Antenna

FEATURES

• NVR-3000 VHF RADIO (GMDSS) is a high-performance VHF device, capable of voice communication and DSC (digital selective calling) facilities as well.
• Conforming to Class A standard set for VHF DSC by ITU and IMO regulation, NVR-3000 can be part of onboard GMDSS package for vessels of A1, A2 or A3.
• Interfaces to VDR and BAM system/INS are available on NVR-3000.

EQUIPMENT LIST

• STANDARD
  – Transceiver 1 pc
  – Handset 1 pc
  – Accessories 1 set
• OPTIONS
  – AC/DC PSU 1 pc
  – Alarm Unit 1 pc
  – External speaker 1 pc
  – 2nd Handset（with junction boxes） 1 set
  – VHF Antenna 2 pcs
  – Flush Mount Bracket 1 pc

APPROVALS AND RULES

• NVR-3000 conforms to the regulations of ITU-R M.493-15, IMO MSC.302 (87), IMO MSC.1/Circ.1460/Rev.3, IEC 61097-3, IEC 61097-7, IEC 62923-1, IEC 62923-2 and IEC 61162-1.
