DEVICE: AIS A CLASS ( AUTOMATIC IDENTIFICATION SYSTEM )
BRAND: NSR
TYPE: NSI-1000

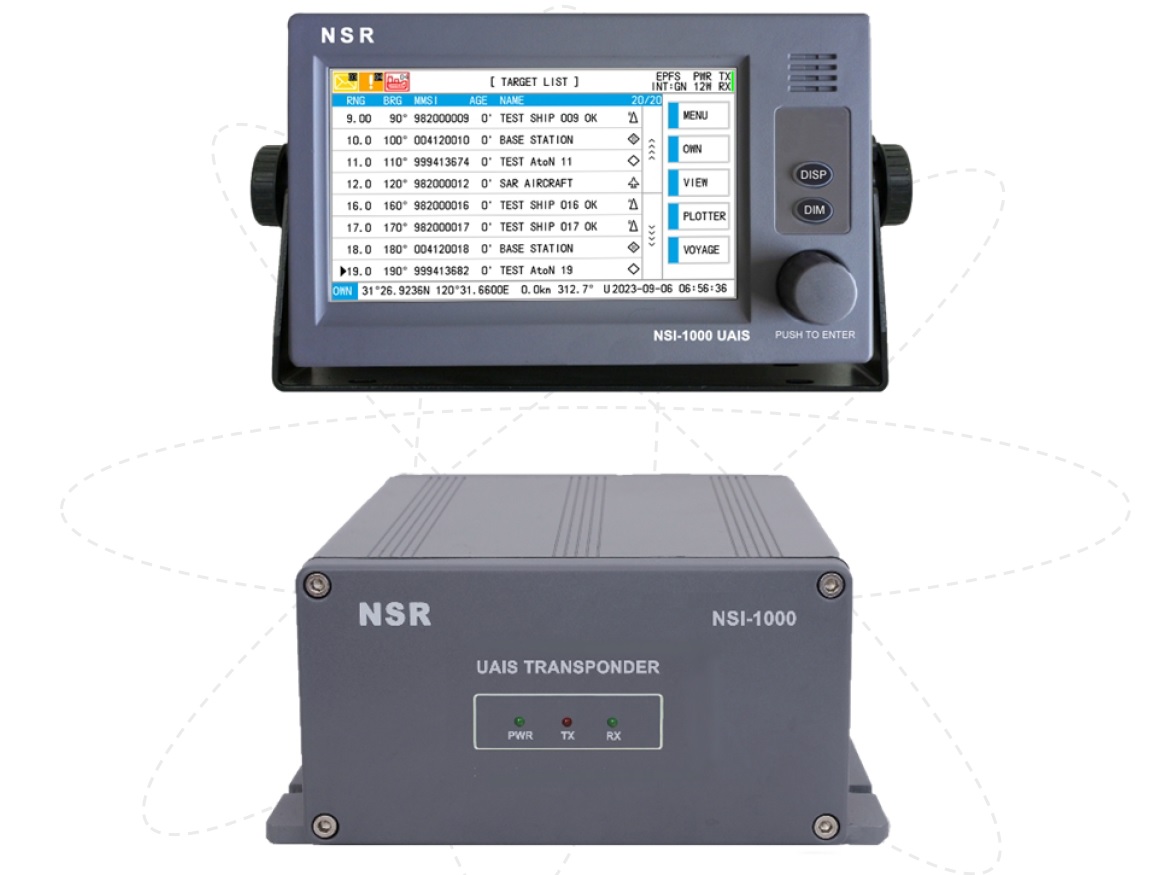

This AIS System is NSR NSI-1000. Display GNSS Navigator, GNSS Antenna with Cable and other spare parts are available. GPS Antenna type NGA100 GNSS ANTENNA. AIS VHF antenna is NVA100. Transponder unit is MKD NSI1000D.
We offer global supply services and comprehensive support at all Turkish ports. Feel free to contact us anytime.
EQUIPMENT LIST
STANDARD
– AIS Transponder NSI-1000 1 pc
– MKD NSI-1000D 1 pc
– GNSS Antenna (with 20 m cable) NGA100 1 pc
– Accessories 1 set
OPTIONS
– Plotter NES-3010 1 pc
– VHF Antenna NVA100 1 pc
– Pilot Plug NPP100 1 pc
– Flush Mount Bracket for MKD 1 pc

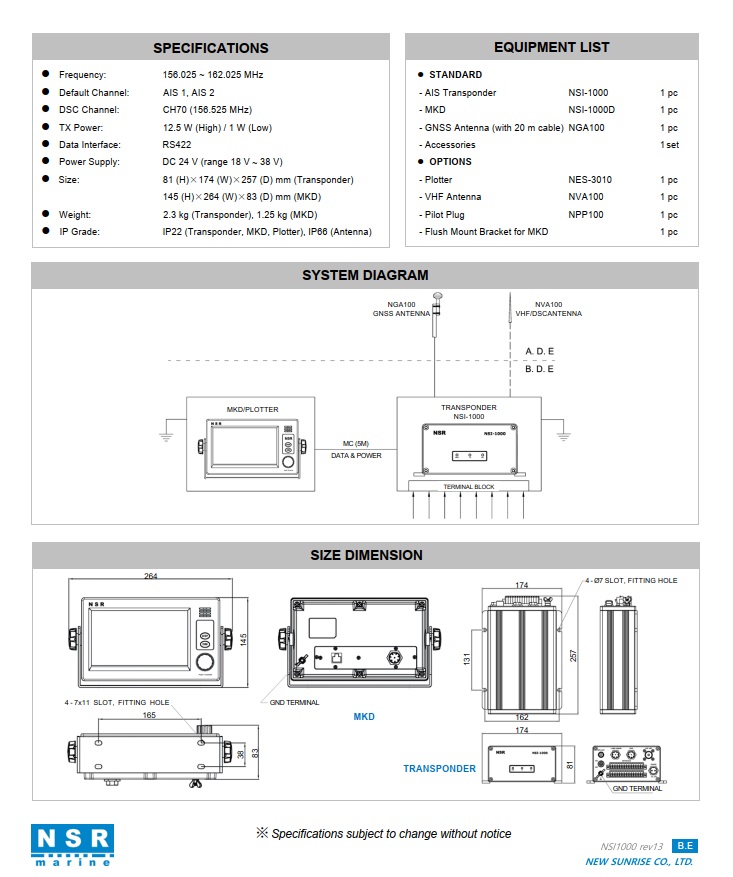

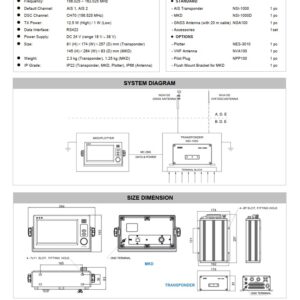

SPECIFICATIONS
| Frequency: | 156.025 ～162.025MHz |
| Default Channel: | AIS 1, AIS 2 |
| DSC Channel: | CH70 (156.525MHz) |
| TX Power: | 12.5W (High) / 1W (Low) |
| I/O Interface: | RS422 |
| Power Supply: | DC24V（range 18V~38V） |
| Size: | 81(H) x 174 (W) x 257(D) mm (Transponder) 145(H) x 264 (W) x 83(D) mm (MKD) |
| Weight: | 2.3kg (Transponder) 1.25kg (MKD) |
| IP Grade: | IP22 (Trsnsponder, MKD), IP66 (Antenna) |

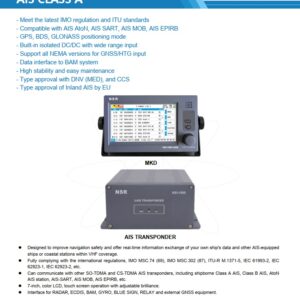

FEATURES
– Fully complying with the latest international regulation, IMO MSC.74 (69), IMO MSC.302 (87), ITU M.1371-5,IEC 61993-2, IEC 62923-1, IEC 62923-2, etc.
– GPS、BDS、GLONASS positioning mode.
– 7-inch color LCD, touch screen operation with adjustable brilliance.
– Interface for RADAR, ECDIS, BAM, GYRO and external GPS equipment.
– Compatible with AIS AtoN, AIS SART, AIS MOB, AIS EPIRB.
– Built-in isolated DC/DC with wide range input.
– Support all NEMA versions for GNSS/HTG input.
– Data interface to BAM system.
– High stability and easy maintenance.
– CCS type approval.
– DNV type approval.
– RS type approval.
– VR type approval.
– Type approval of Inland AIS by EU.
View / Download Product Manual PDF
The detailed manual for the NSR NSI-1000 AIS CLASS A can be downloaded from the link.
