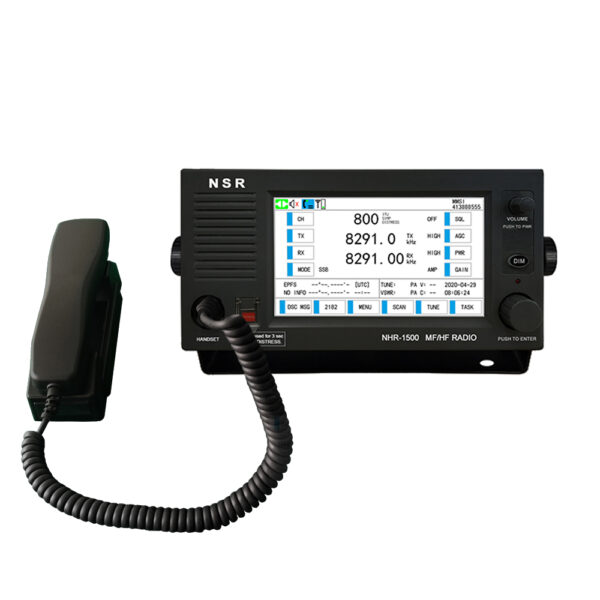

NSR MF HF RADIO NHR-1500

DEVICE:  MF HF RADIO

BRAND: NSR

TYPE: NHR-1500



This MF HF DSC SSB RADIO  is NSR NHR-1500, Transceiver NHR-1500T, Control Unit NHR-1000C, Antenna Coupler NHR-1000A, Handset NHS-200, Printer NPT-100, NBDP Terminal NBD-100 and other spare parts are available.



We offer global supply services and comprehensive support at all Turkish ports. Feel free to contact us anytime.



SPECIFICATIONS

• TX Frequency:  1605.0-27500.0 kHz
• RX Frequency:  300.0-29999.99 kHz
• Working Channel:  400+ channels
• Communication Mode:  Simplex/Semi-duplex
• Emission Class:  J3E, H3E, A1A, F1B
• TX Power:  150W pep
• RX Sensitivity:
• – J3E：≤2.5 µV（1605.0 – 27500.0 kHz）
• – F1B：≤0.7 µV（1605.0 – 27500.0 kHz）
• – A1A：≤1.4 µV （1605.0 – 27500.0 kHz
• DSC frequencies (kHz):  2187.5, 4207.5, 6312.0, 8414.5, 12577.0, 16804.5
• Control Display:  7-inch color display, touch screen
• Interface:  LAN, BAM/INS (RS422), GNSS (RS422)
• Antenna Impedance:  50 Ω
• IP Grade:  IP22: Control unit, Transceiver, Handset
• IP66: Antenna coupler
• Operating Temperature:  -15° to 55°C (indoor parts), -25° to 55°C (outdoor part)
• Power Supply:  DC24V

FEATURES

• SDR (Software Defined Radio) technology
• Voice digitalized.
• Large 7 inch color display
• Knob & touch screen operation
• Android system on NBDP terminal
• LAN network interface
• Data interface to BAM System/INS
• Marine communication handset

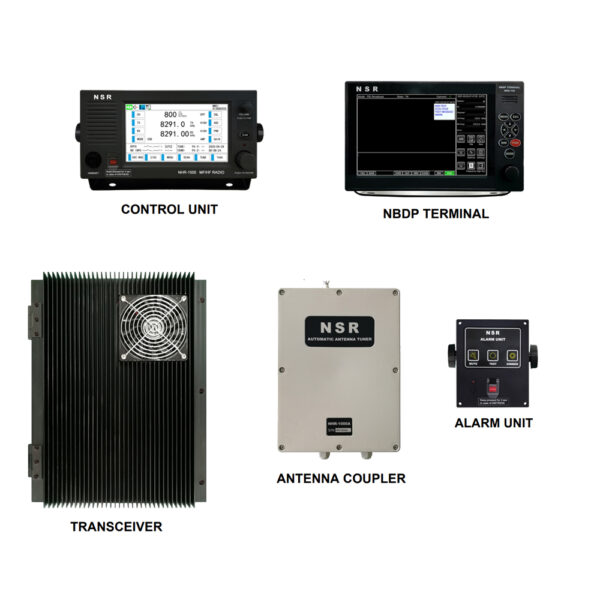

EQUIPMENT LIST

• STANDARD
  – Transceiver NHR-1500T
  – Control Unit NHR-1000C
  – Antenna Coupler NHR-1000A
  – Handset NHS-200
  – Cable & Accessories
• OPTIONS
  – Printer NPT-100
  – NBDP Terminal NBD-100
  – Alarm Unit NAU-100
  – External Speaker NSK-100
  – TX/RX Antenna NHA100
  – DSC RX Antenna NXA100, NXA100A
  – AC/DC PSU NPS-300

APPROVALS AND RULES

• Conforms to the regulations of ITU-R M.476-5, ITU-R M.492-6, ITU-R M.493-15, ITU-R M.541-10, IMO M302 (87), IEC 61097-9, IEC 61097-3, IEC 60945, IEC 62923-1, IEC 62923-2.
• CCS type approval.
• DNV type approval.
• RS type approval.
• VR type approval.
• Can be part of onboard GMDSS package for vessels of A2, A3 and A4.
• Conforming to Class A standard set for MF/HF DSC by ITU and IMO regulation.
• Capable of voice communication and DSC (digital selective calling) facilities as well.
