DEVICE: NMEA BUFFER
BRAND: MATSUTEC, ONWA, HUAYANG
TYPE: MD-210A

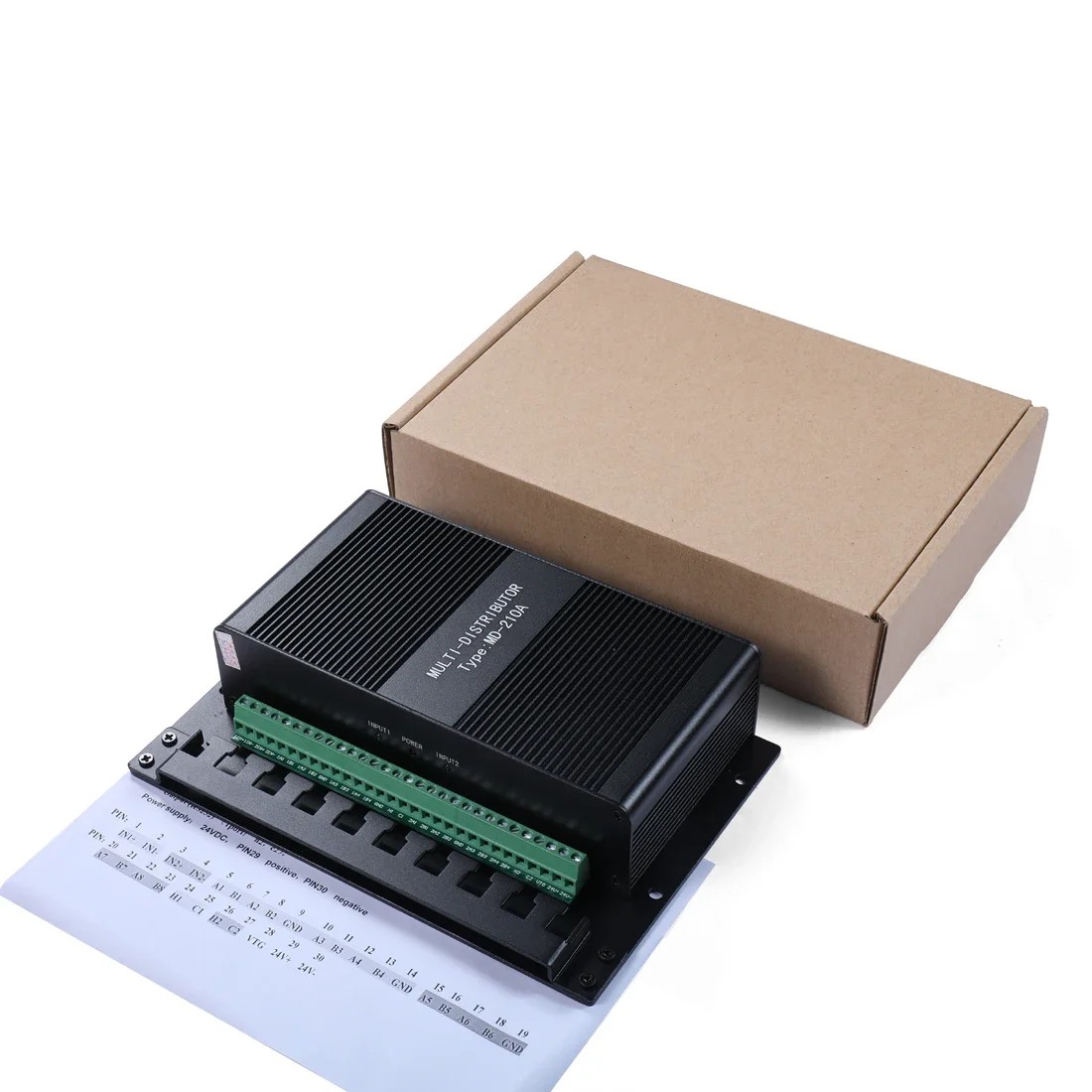

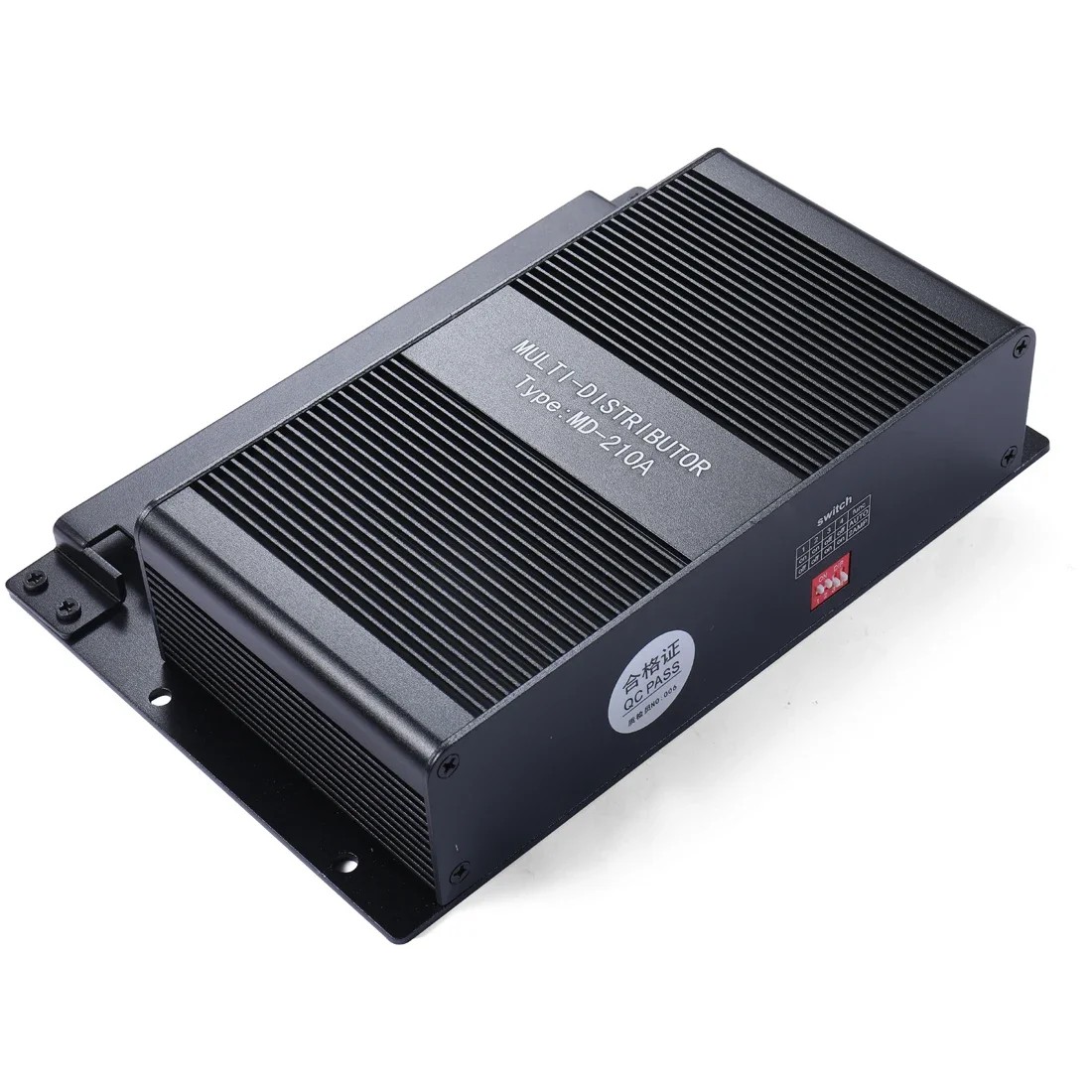

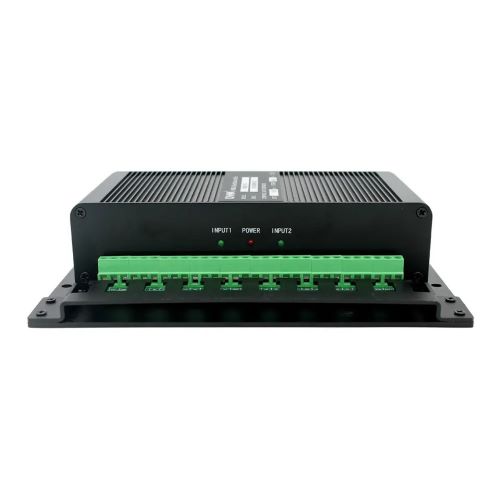

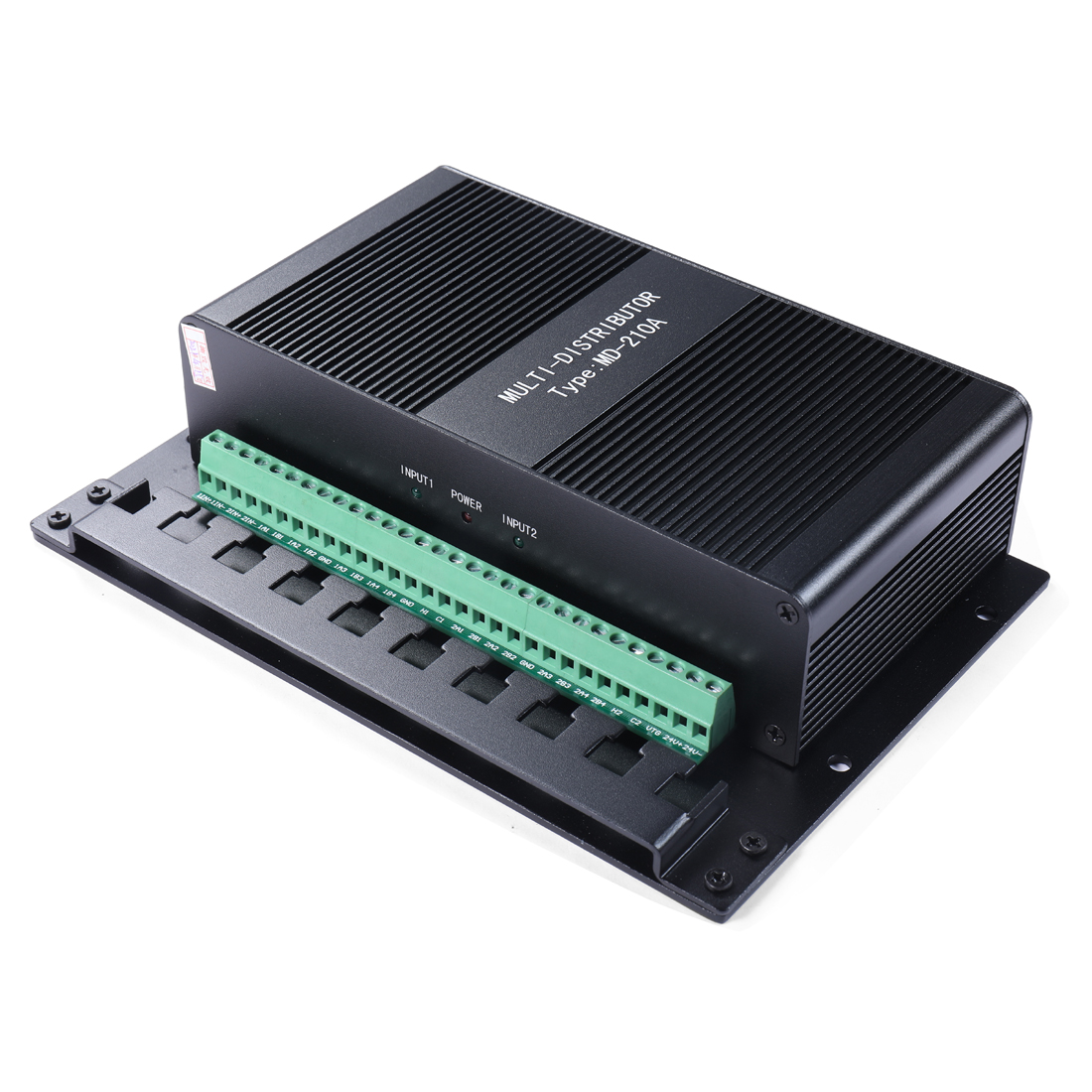

NMEA Distributor (MD-210)
The Distributor will amplify the NMEA signal independently and assign to other devices,which signal is up to the IEC62216 standard.
We offer global supply services and comprehensive support at all Turkish ports. Feel free to contact us anytime.
Main features
• Power isolation
• High-speed, it applies to the signal of 11 5200 Baud rate
• Input signal isolation
• Each signal’s output is amplified independently
• It can be divided into two signals to use, and the two signals are amplified
independently. (It means it will be divided into two independent distributor.)
Connection 1
Dual input and automatic conversion.IN1+ , IN1 – is the first input,IN2+ , IN2- is the second input,a total of 10 output signals. If the first one is no signal, it will convert to the second one automatically. Connection: (DIP switch: 1-2 ON; 3-4 OFF)(Default connection)
Connection 2
Use as two independent distributor(For example:If the first one is connected the signal of GPS,the other one is connected the signal of Heading(HDT), each port will be output 5 signals of RS-422 and RS-232)(DIP switch: 1-2 OFF; 3-4 ON)

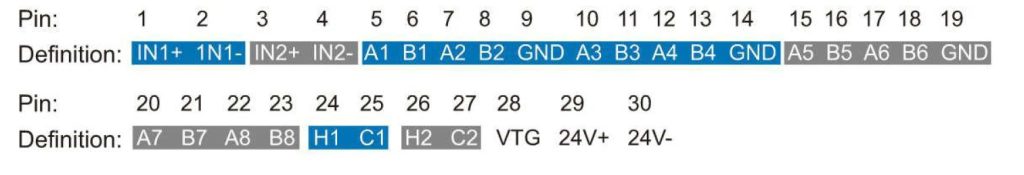

A, B is RS422 output, a total of 8 ports (The first port:Al , Bl;The second port:A2, B2; ……. The eighth port: A8, B8).
H, C is RS232 output, a total of 2 ports (The first port:Hl, Cl;The second port:H2, C2).

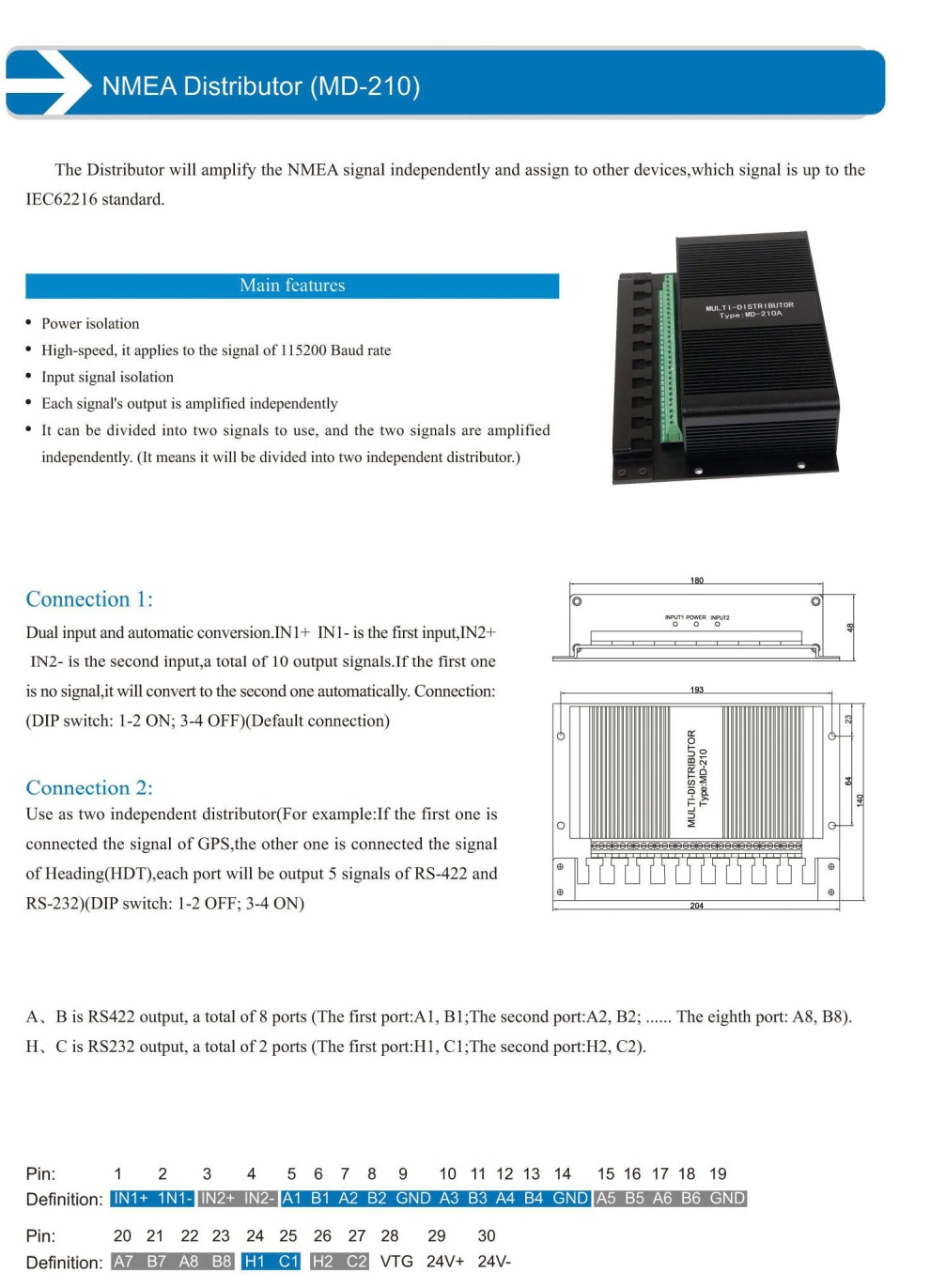

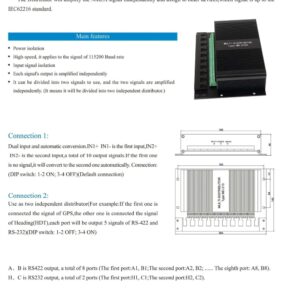

View / Download Product Manual PDF
The detailed manual for the MD-210A NMEA BUFFER – MULTI DISTRIBUTOR can be downloaded from the link.
