Description
DEVICE: MARINE MONITOR
BRAND: WINMATE
TYPE:R19L300MRA1FP

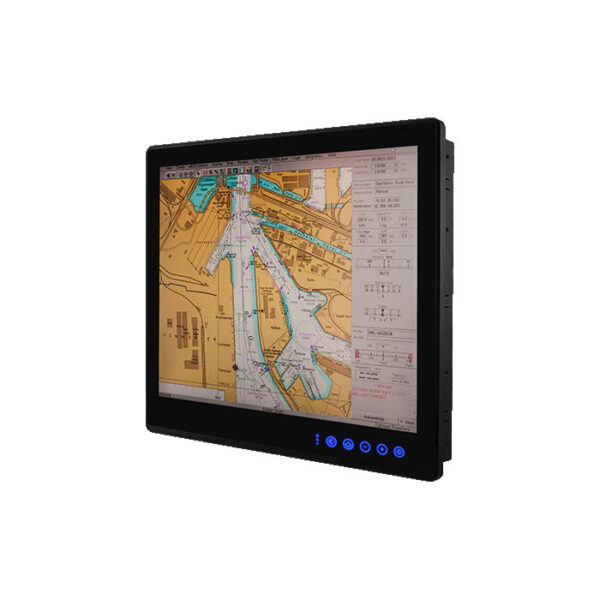

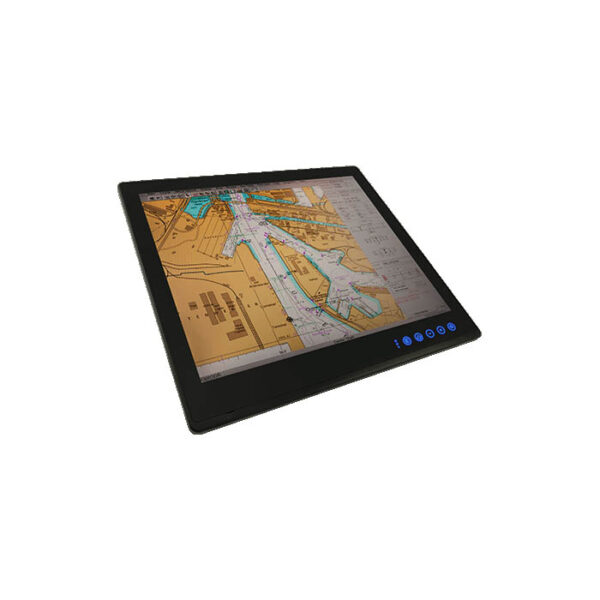

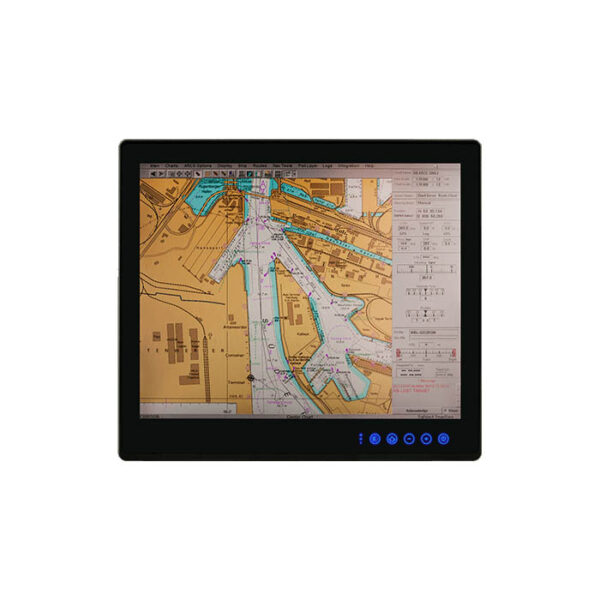

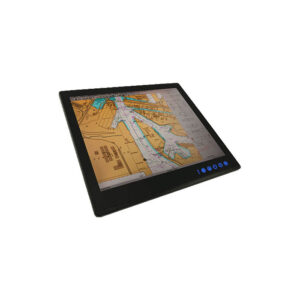

WINMATE R19L300MRA1FP MARINE MONITOR. We can supply to world wide and we can give service in all Turkey Ports. Keep in touch with us.
- 19” 1280 x 1024 resolution with projective capacitive multitouchscreen
- Edgetoedge narrow bezel design and fanless cooling system
- Color calibrated for ECDIS compliance (Optional)
- Capacitive touch keys for quick function access and display control
- (Support ECDIS DAY, DUSK, and NIGHT mode switching)
- Meet the requirements of industrial marine standards, including
- IEC60945 4th Edition, DNVGLCG0339, IACS E10

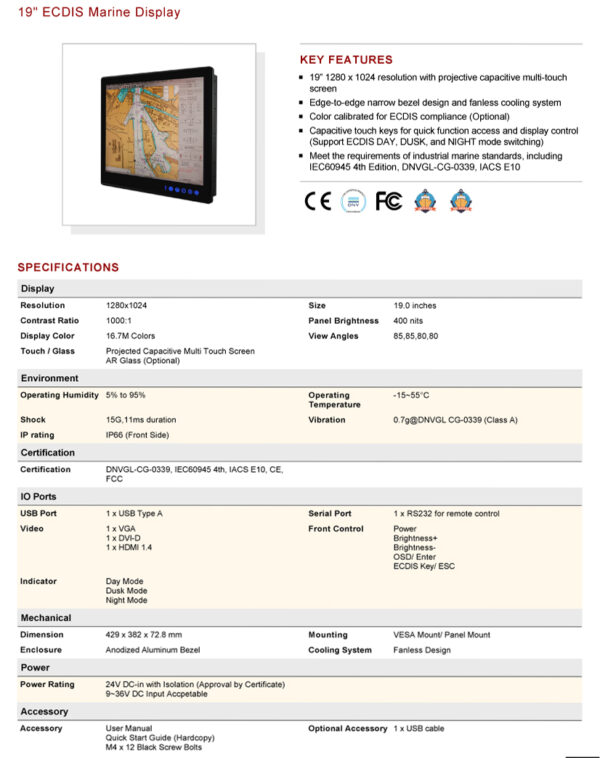

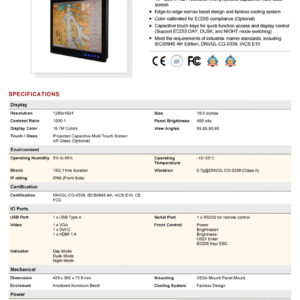

SPECIFICATIONS
DisplayResolution 1280×1024 Size 19.0 inches
Contrast Ratio 1000:1 Panel Brightness 400 nits
Display Color 16.7M Colors View Angles 85,85,80,80
Touch / Glass Projected Capacitive Multi Touch Screen AR Glass (Optional)
Operating Humidity 5% to 95% Operating
Temperature
15~55°C
Shock 15G,11ms duration Vibration 0.7g@DNVGL CG0339 (Class A)
IP rating IP66 (Front Side)
Certification
Certification DNVGLCG0339, IEC60945 4th, IACS E10, CE,
FCC
IO Ports
USB Port 1 x USB Type A Serial Port 1 x RS232 for remote control
Video 1 x VGA
1 x DVID
1 x HDMI 1.4
Front Control
Power
Brightness+
BrightnessOSD/ Enter
ECDIS Key/ ESC
Indicator
Day Mode
Dusk Mode
Night Mode
Mechanical
Dimension 429 x 382 x 72.8 mm Mounting VESA Mount/ Panel Mount
Enclosure Anodized Aluminum Bezel Cooling System Fanless Design
Power
Power Rating 24V DCin with Isolation (Approval by Certificate)
9~36V DC Input Accpetable
Accessory
Accessory User Manual
Quick Start Guide (Hardcopy)
M4 x 12 Black Screw Bolts
AC to DC Adapter
Power Cord
3 Pin Terminal Block
1 x VGA cable
1 x DVI cable
1 x HDMI cable
1 x RS232 cable

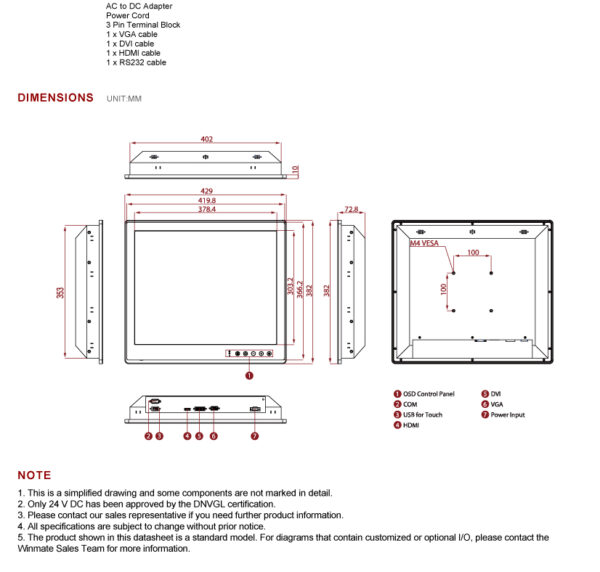

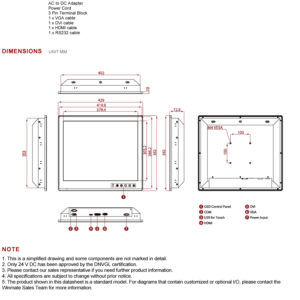

NOTE
1. This is a simplified drawing and some components are not marked in detail.
2. Only 24 V DC has been approved by the DNVGL certification.
3. Please contact our sales representative if you need further product information.
4. All specifications are subject to change without prior notice.
5. The product shown in this datasheet is a standard model.
