DEVICE: MAGNETRON
BRAND: JRC
TYPE: MSF1425A
This Part JRC MSF1425A MAGNETRON FOR RADAR. When your radar echoes and tune bar goest to weakness you have to check your magnetron TX time. If your radar TX Time over 5.000 Hours, you have to change your magnetron with the new one. Your technician can change radar magnetron and carbon brushs easyly. We offer global supply services and comprehensive support at all Turkish ports. Feel free to contact us anytime.

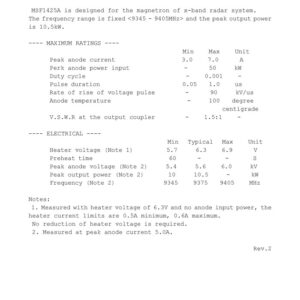

MAXIMUM RATINGS
| Min | Max | Unit | |
| Peak anode current | 3.0 | 7.0 | A |
| Perk anode power input | – | 50 | KW |
| Duty cycle | – | 0.001 | – |
| Pulse duration | 0.05 | 1.0 | µs |
| Rate of rise of voltage pulse | – | 90 | KV/µs |
| Anode temperature | – | 100 | °C |
| V.S.W.R at the output coupler | – | 1.5:1 | – |
ELECTRICAL
| Min | Typical | Max | Unit | |
| Heater voltage | 5.7 | 6.3 | 6.9 | V |
| Preheat time | 60 | – | – | S |
| Peak anode voltage | 5.4 | 5.6 | 6.0 | kV |
| Peak output power | 10 | 10.5 | – | kW |
| Frequency | 9345 | 9375 | 9405 | MHz |
