DEVICE: MAGNETRON
BRAND: JRC
TYPE: M1636

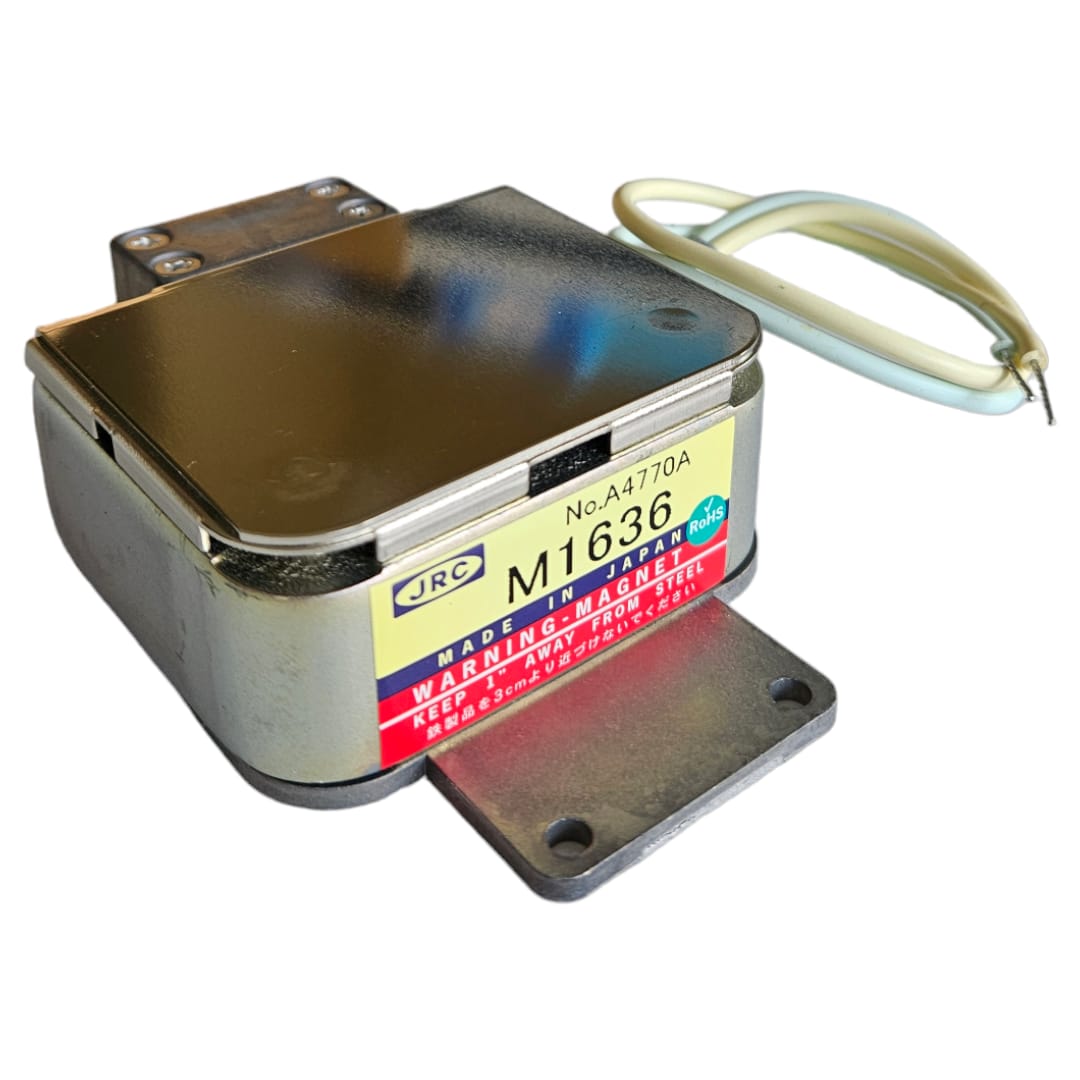

This Part JRC M1636 MAGNETRON FOR RADAR. When your radar echoes and tune bar goest to weakness you have to check your magnetron TX time. If your radar TX Time over 5.000 Hours, you have to change your magnetron with the new one. Your technician can change radar magnetron and carbon brushs easyly.
We offer global supply services and comprehensive support at all Turkish ports. Feel free to contact us anytime.
| Features | Parameters | ||
|---|---|---|---|
| Frequency | 9380 to 9440 MHz (Fixed) | ||
| Output power (Peak) | 25 kW | ||
| Duty cycle / Pulse duration | 0.001 / 1.2 μsec | ||
| Anode voltage (Peak) | 8 kV | ||
| Anode current (Peak) | 8 A | ||
| Heater voltage | 6.3 V (@ Preheat) | ||
| Heater current | 0.52 A | ||
| RF output interface | Waveguide: WR90 RF flange: UG-135/U Equivalent |
||
| Power supply interface | Lead wire | ||
| Cooling | Air / Forced air | ||
| Weight | 0.7 kg | ||
View / Download Product Manual PDF
The detailed manual for the JRC / NISSHINBO M1636 MAGNETRON can be downloaded from the link.
