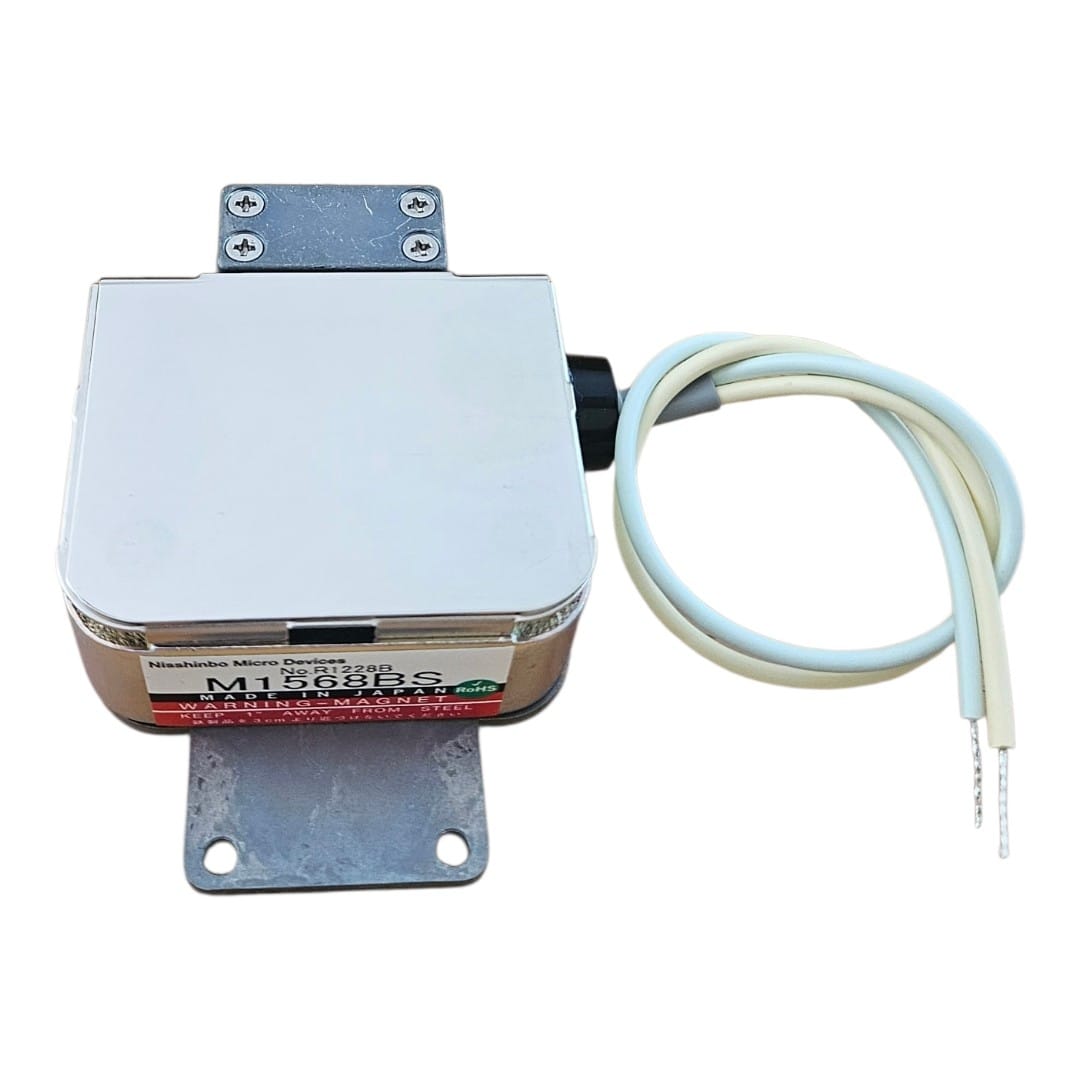

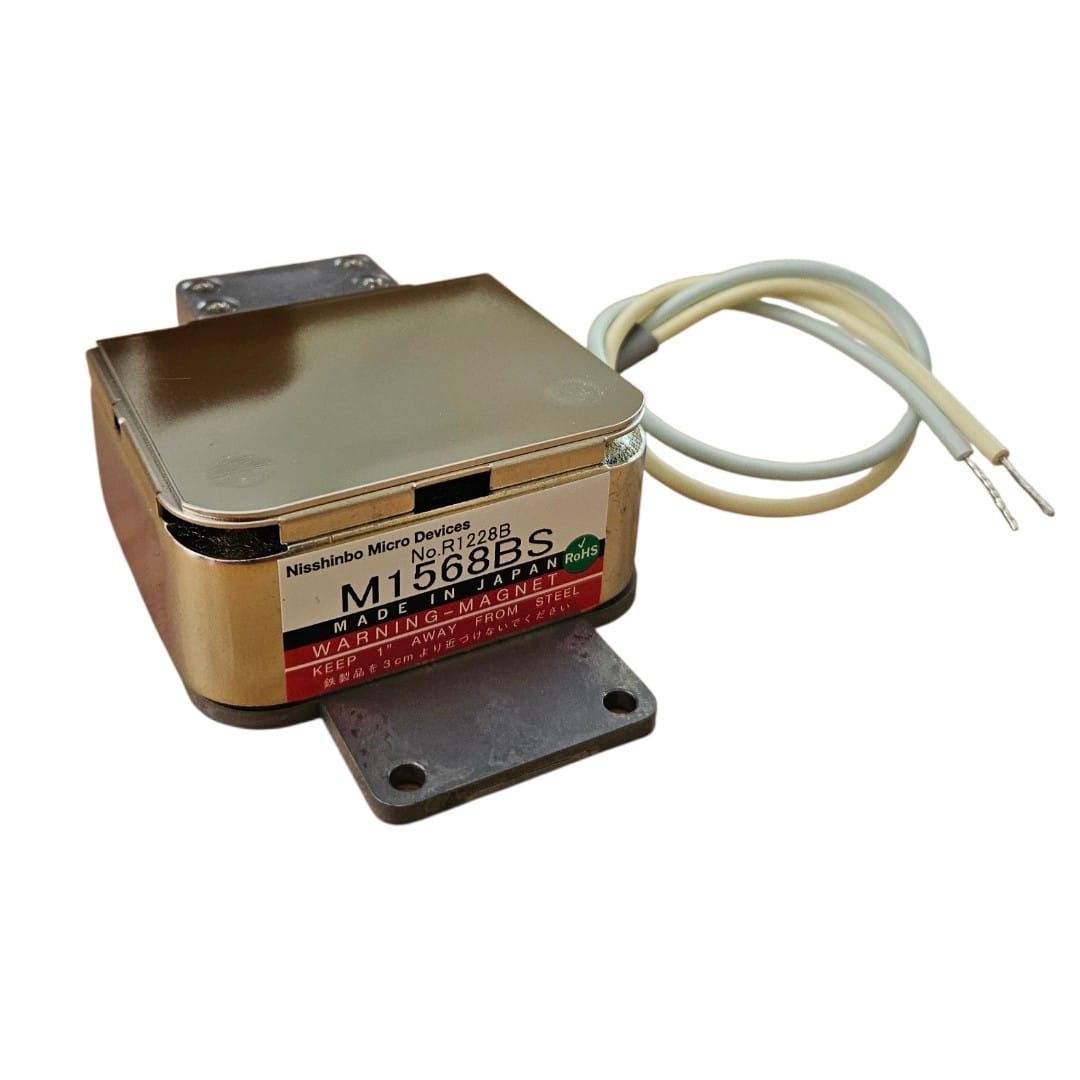

DEVICE: MAGNETRON
BRAND: JRC
TYPE: M1568BS
PN: 5VMAA00106
FREQUENCY: 9380 – 9440 MHZ (Fixed)
OUTPUT POWER (PEAK): 25 kW
DUTY CYCLE / PULSE DURATION: 0.001 / 1.2 usec
OTHER FEATURES: RoHS COMPLIANT
This Part JRC M1568BS MAGNETRON for marine radar. JRC Stock Code: 5VMAA00106. When your radar echoes and tune bar goest to weakness you have to check your magnetron TX time. If your radar TX Time over 5.000 Hours, you have to change your magnetron with the new one. Your technician can change radar magnetron and carbon brushs easyly. We offer global supply services and comprehensive support at all Turkish ports. Feel free to contact us anytime.
| Items | Parameters |
| Anode voltage (Peak) | 8 kV |
|---|---|
| Anode current (Peak) | 8 A |
| Heater voltage | 6.3 V |
| Heater current | 0.52 A |

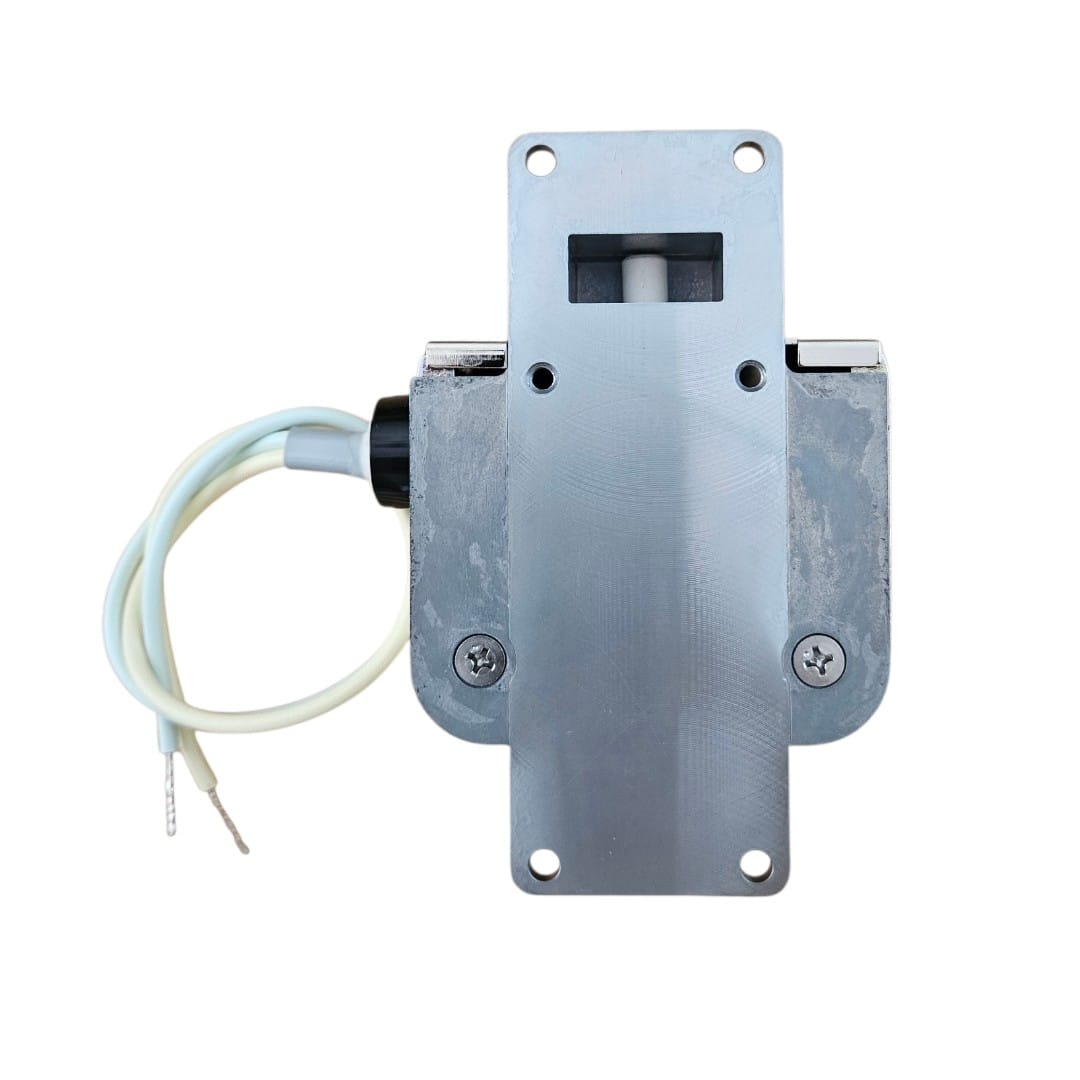

| RF output interface | Waveguide : WR90 RF flange : UG-135/U Equivalent |
| Power supply interface | Lead wire |
| Cooling | Air / Forced air |
| Weight | 0.7 kg |
