Description
DEVICE: RADAR
BRAND: JRC
TYPE: JMA-9900

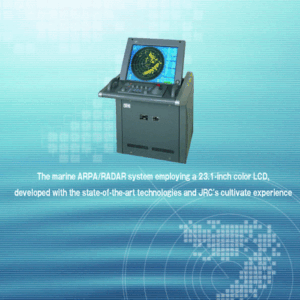

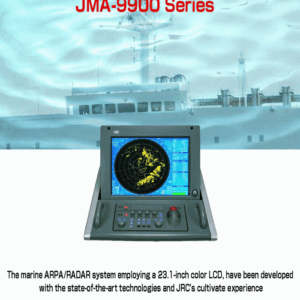

This marine radar is JRC JMA-9900. We have Display unit, control, scanner unit, magnetron and all spare unit.We can supply to world wide and we can give service in all Turkey Ports. Keep in touch with us.
-
Radar Types:

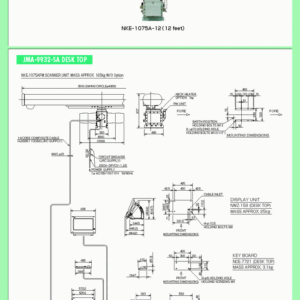

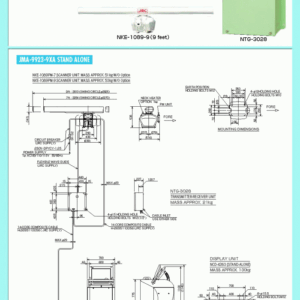

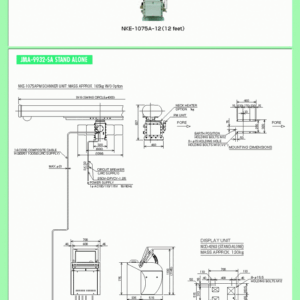

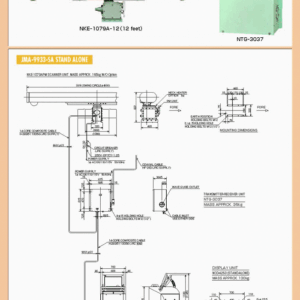

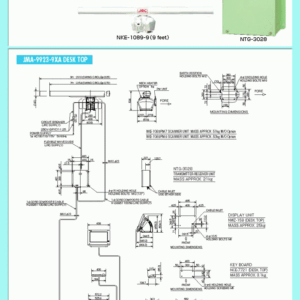

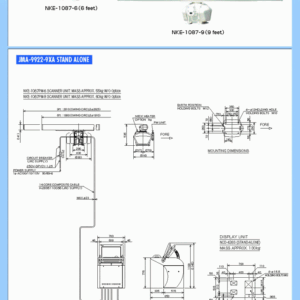

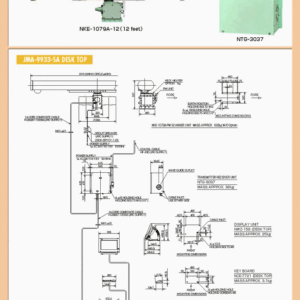

JMA-9922-6XA, JMA-9922-9XA, JMA-9923-7XA, JMA-9923-9XA, JMA-9932-SA, JMA-9933-SA
-

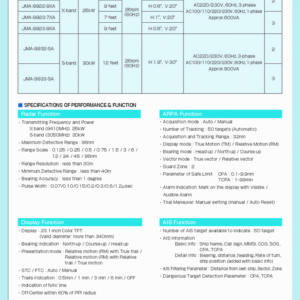

Radar Function
Transmitting Frequency and Power : X-band (9410MHz): 25kW | S-band (3050MHz): 30kW
Maximum Detective Range ： 96nm
Range Scale ： 0.125 / 0.25 / 0.5 / 0.75 / 1.5 / 3 / 6 / 12 / 24 / 48 / 96nm
Range Resolution ： less than 30m
Minimum Detective Range ： less than 40m
Bearing Accuracy ： less than 1 degree
Pulse Width ： 0.07/0.10/0.15/0.2/0.3/0.6/1.2μsec
-
Display Function
Display ： 23.1-inch Color TFT (Valid diameter: more than 340mm)
Bearing indication ： North-up / Course-up / Head-up
Presentation mode ： Relative motion (RM) with True trail / Relative motion (RM) with Relativetrail / Truemotion
STC / FTC ： Auto / Manual
Trails indication ： 0.5min / 1 min / 3 min / 6 min / OFF
Indication of NAV line
Off-Center within 60% of PPI radius
-
ARPA Function
Acquisition mode ： Auto / Manual
Number of Tracking ： 50 targets (Automatic)
Acquisition and Tracking Range ： 32nm
Display mode ： True Motion (TM) / Relative Motion (RM)
Bearing mode ： Head-up / North-up / Course-up
Vector mode ： True vector / Relative vector
Guard Zone ： 2
Parameter of Safe Limit CPA ： 0.1ｰ9.9nm
TCPA ： 1ｰ99min
Alarm Indication: Mark on the display with Visible / Audible Alarm
Trial Maneuver: Manual setting (manual / Auto Reset)
-
AIS Function
Number of AIS target available to indicate ： 50 target
AIS Information Basic Info ： Ship Name、Call sign、MMSI、COG、SOG、CPA、TCPA
Detail Info ： Bearing、distance、heading、Rate of turn、ship position (added with basic info)
AIS Filtering Parameter ： Distance from own ship、Sector、Zone
Dangerous Target Detection Parameter ： CPA、TCPA
-

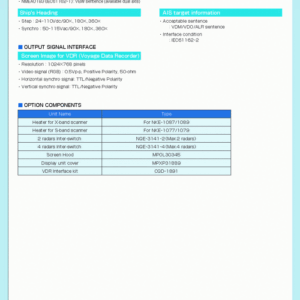

OPTION COMPONENTS
Heater for X-band scanner – For NKEｰ1087/1089
Heater for S-band scanner – For NKEｰ1077/1079
2 radars Inter-switch – NQEｰ3141ｰ2（Max.2 radars）
4 radars Inter-switch – NQEｰ3141ｰ4（Max.4 radars）
Screen Hood – MPOL30345
Display unit cover – MPXP31889
VDR Interface kit – QDｰ1891
