Description
DEVICE: NAVTEX
BRAND: FURUNO
TYPE: NX-700
This NAVTEX Receiver is FURUNO NX700 We can supply to world wide and we can give service in all Turkey Ports. Keep in touch with us.

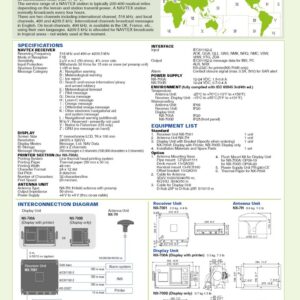

SPECIFICATIONS

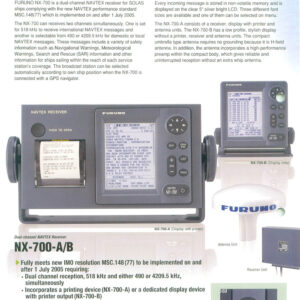

NX-700 NAVTEX RECEIVER
Receiving frequency 518 kHz and 490 kHz (or 4209.5 kHz), receive both frequenciessimultaneously
Mode of reception F1B
Sensitivity 2 μV e.m.f. (50 ohms), 4% error rate or less1.4 Input protection Withstands 30 Vrms for 15 minutes or more (w/ pre-amp unit)
Spurious emission 1nW or less

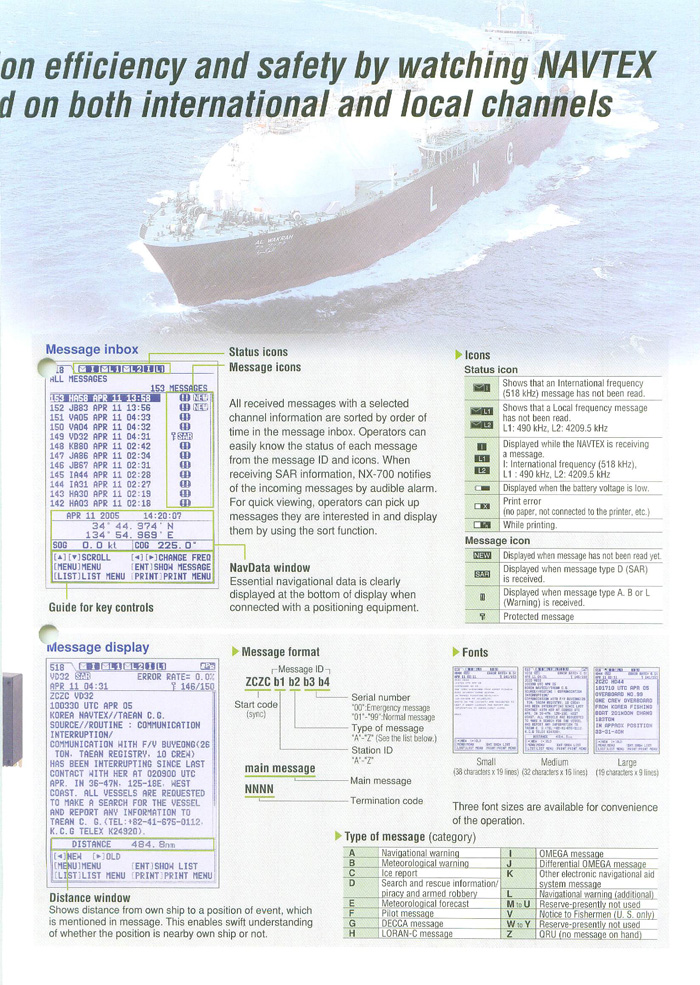

Message category A: navigational warning
B: meteorological warning
C: ice report
D: earch and rescue information/piracy and armed robbery
E: meteorological forecast
F: pilot message
G: AIS
H: LORAN-C message
I: reserved presently not used
J: SATNAV message
K: ohter electronic navigational aid system message
L: navigational warning (additional)
M to Y: reserved presently not used
Z: QRU (no message on hand)
DISPLAY UNIT
Display system 5-inch, 76 (W) x 100 (H) mm, monochrome LCD, 240 x 320 dots
Display modes Message selection mode, Message display mode
Message storage 200 messages x 2 channels (100,000 characters x 2 channels)
PRINTER SECTION (FOR NX-700A ONLY)
Printing system Line thermal head printing system
Printing paper Thermal paper (58 mm x 30 m)
Printing width 48 mm
Character format 24 x 12 dot
Dot pitch 8 dots/ mm
Number of characters 32 characters/line
print speed Approx. 20 mm/sec.
ANTENNA UNIT
Antenna type NX-7H: H-field antenna
Output impedance 50 ohms
Power supply +7 V to +9 V (thru co-ax cable)
INTERFACE
Input data IEC61162-1, -2
GGA, GLL, RMC, ZDA, ACK, GNS, VHW, VTG, VBW, NRM, CRQ,
PFEC
Output data NRX, ALR, NRM
Alarm Normal close, contact closure signal (floating, max. 80 mA, 50 V) for SAR alert
POWER SUPPLY
NX-700A 12-24VDC: 1.5-0.8A
NX-700B 12-24VDC: 0.7-0.4A
ENVIRONMENTAL CONDITION
Ambient temperature
Antenna unit -25°C to +70°C
Receiver / Display unit -15°C to +55°C
Relative humidity 95% at 40°C (without dew condensation)
Waterproofing
Antenna unit IP66
Receiver / Display unit IP20 (NX-700B: IP25 for front panel)
Vibration – 2Hz to 5 Hz and up to 13.2 Hz with a deviation of ±1 mm ±10%(7 m/s2 maximum acceleration at 13.2 Hz); – above 13.2 Hz and up to 100 Hz with a constant maximum acceleration of 7 m/s2 .
