Description
DEVICE: INMARSAT, SSAS, LRIT
BRAND: FURUNO
TYPE: FELCOM-16

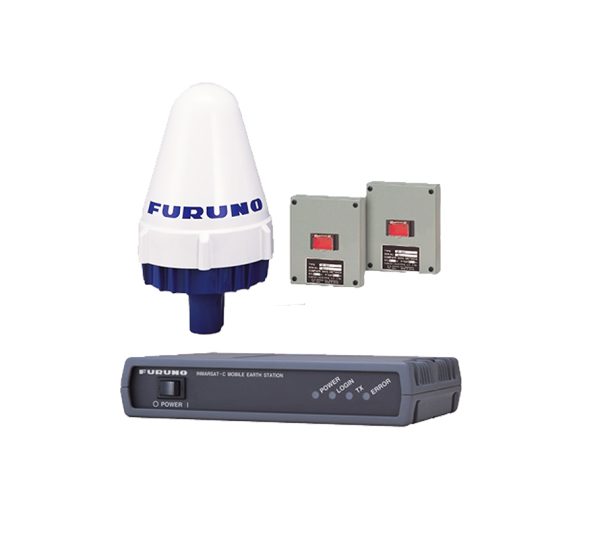

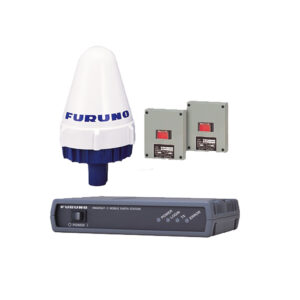

This inmarsat system is Furuno Felcom-16. Inmarsat Antenna is IC-119, IC-219 Communication Unit, IC-307 SSAS Alert Unit and all spares are available. We can supply to world wide and we can give service in all Turkey Ports. Keep in touch with us.
| EQUIPMENT LISTS FOR FURUNO FELCOM 16 SYSTEM | |||||||||
| STANDARD SUPPLY | |||||||||
| Name | Type | Code | No. | Qty | Remarks | ||||
| Antenna Unit | IC-116 | – | 1 | ||||||
| Communication Unit | 10216 | – | 1 | ||||||
| Junction Box* | 10315 | – | 1 | W/CP16-02501 | |||||
| SSAS Alert | Unit* | IC-307 | – | 2 | W/CP16-03 101, FP 16-00901 | ||||
| CP1 6-021 01 | 004-439-060 | For 15/30 m antenna cable** | |||||||
| CP16-02111 | 004-439-070 | 1 set | For 50 m antenna cable** | ||||||
| CP16-02121 | 004-439-080 | For 100 m antenna cable** | |||||||
| TP58A15W-RG58 | 000-146-252 | 15 m antenna cable | |||||||
| Installation Materials | |||||||||
| TP5FBAW-5DFBB | 000-146-250 | 30 m antenna cable | |||||||
| 8D-FB-CV | 000-117-599 | 1 | 50 m antenna cable | ||||||
| 12D-SFA-CV | 000-1 38-866 | 100 m antenna cable | |||||||
| CP 16-02401 | 004-439-540 | For communication unit** | |||||||
| Accessories | FP 16-00700 | 004-439-550 | 1 set | FD-ROM, FD (FP16-00601) | |||||
| Spare Parts | SP1 6-01 401 | 004-439-530 | 1 set | Fuse** | |||||
| OPTIONAL SUPPLY | |||||||||
| Name | Type | Code No. | Qty | Remarks | |||||
| Cable Assy | 17JE-573-10 | 000-127-108 | 1 | For PC connecting | |||||
| AC/DC Power Supply Unit | PR-240 | – | 1 set | W/CP24-00151** | |||||
| 000-560-452 | For | junction | box, 10m | ||||||
| 000-103-868 | For junction | box, 20m | |||||||
| CO-SPEW- | |||||||||
| 5-pair | cable | 000-103-869 | 1 | For | junction | box, 30m | |||
| SB-C 0.2X5P | 000-132-829 | For junction | box, 40m | ||||||
| 000-132-828 | For junction | box, 50m | |||||||
| SSAS Alert | Unit | IC-307 | 000-043-473 | 1 | W/CP16-031 01 , FP1 6-00901 | ||||
| Flush Mounting | Kit | OP 16-28 | 004-448-010 | 1 | For | SSAS alert unit | |||
| FFA Modification | Kit** | OP16-69 | 004-448-860 | 1 set | |||||
| PC Terminal Software | OP16-46 | 004-450-750 | |||||||
| Antenna | Mounting Kit | CP 16-03701 | 004-555-000 | 1 set | |||||
| Antenna | Bracket | CP 16-03702 | 001-016-260 | 1 | |||||
| Antenna | Mounting Pipe | CP 16-03703 | 001-014-510 | 1 | |||||
