FURUNO HS2003 HANDSET CABLE

DEVICE: MF-HF, VHF, Handset

BRAND: FURUNO

TYPE: HS 2003, FM-8800, FM-8900, FS-1570, FS-2570

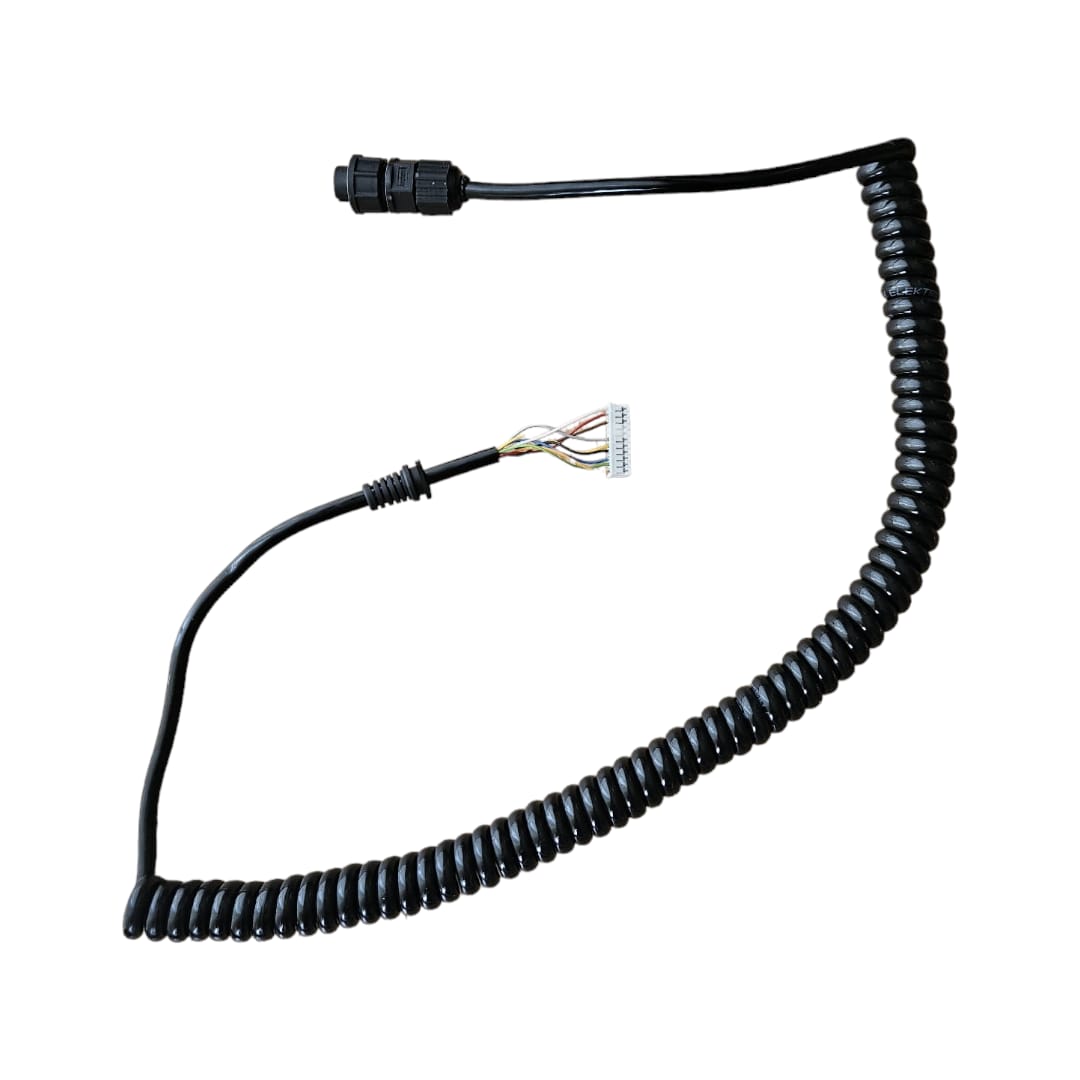

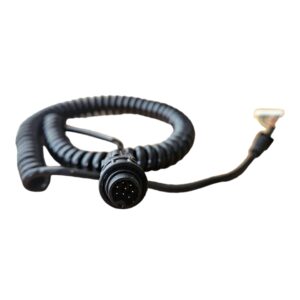

This Cord cable is for Furuno Handset HS 2003 ( FM-8800, FM-8900, FS-1570, FS-2570 ) .

We offer global supply services and comprehensive support at all Turkish ports. Feel free to contact us anytime.

This handset good package shipment box size is 10 x 5 x 5 cm and 0,2 kg.

Product HS Code is : 854430.

CABLE REPLACEMENT PROCEDURE

1- If the handset is plugged to the radio, it must be removed.
2- A visual inspection should be performed to check for any cracks or damage.
3- The handset should be disassembled using a suitable screwdriver to remove the 4 screws.
4- As shown in the image, the front and rear covers should be separated. Care must be taken not to break the clips during this step.
5- The speaker and microphone connectors should be gently disconnected at this stage.
6- The old connectors of the handset cable should be carefully removed from the PCB socket.
7- The new handset cable connectors should be inserted into the PCB socket with attention to its orientation. It should not be forced or inserted the wrong way.
8- The cable grommet should be properly placed in its designated position in the casing.
9- The microphone and speaker connectors should be reconnected to their original positions.
10- The front and rear casings should be reassembled, ensuring that all clips are properly seated.
11- The same screws should be reinserted into their original locations. At this stage, avoid over-tightening the screws to prevent cracking the plastic components.
