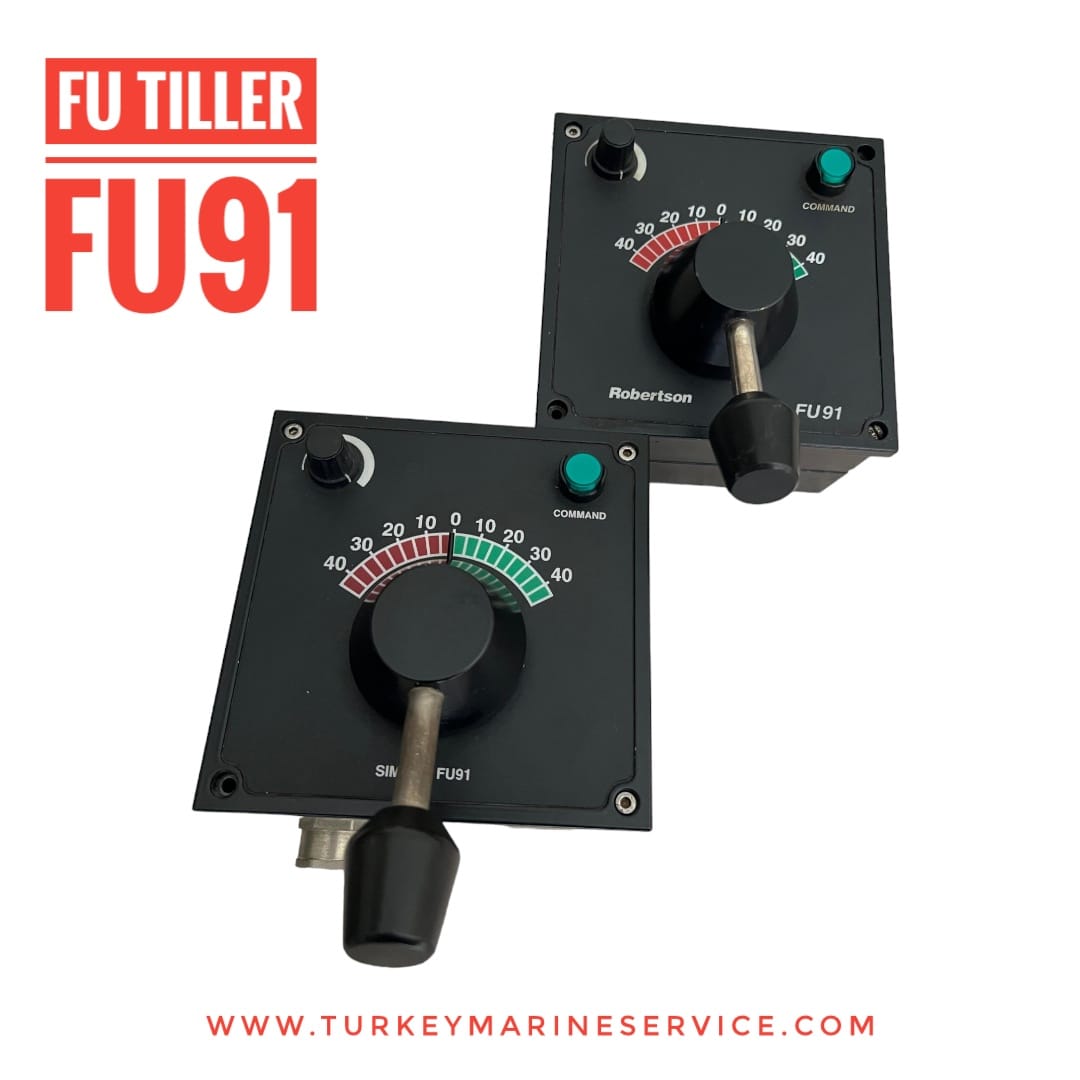

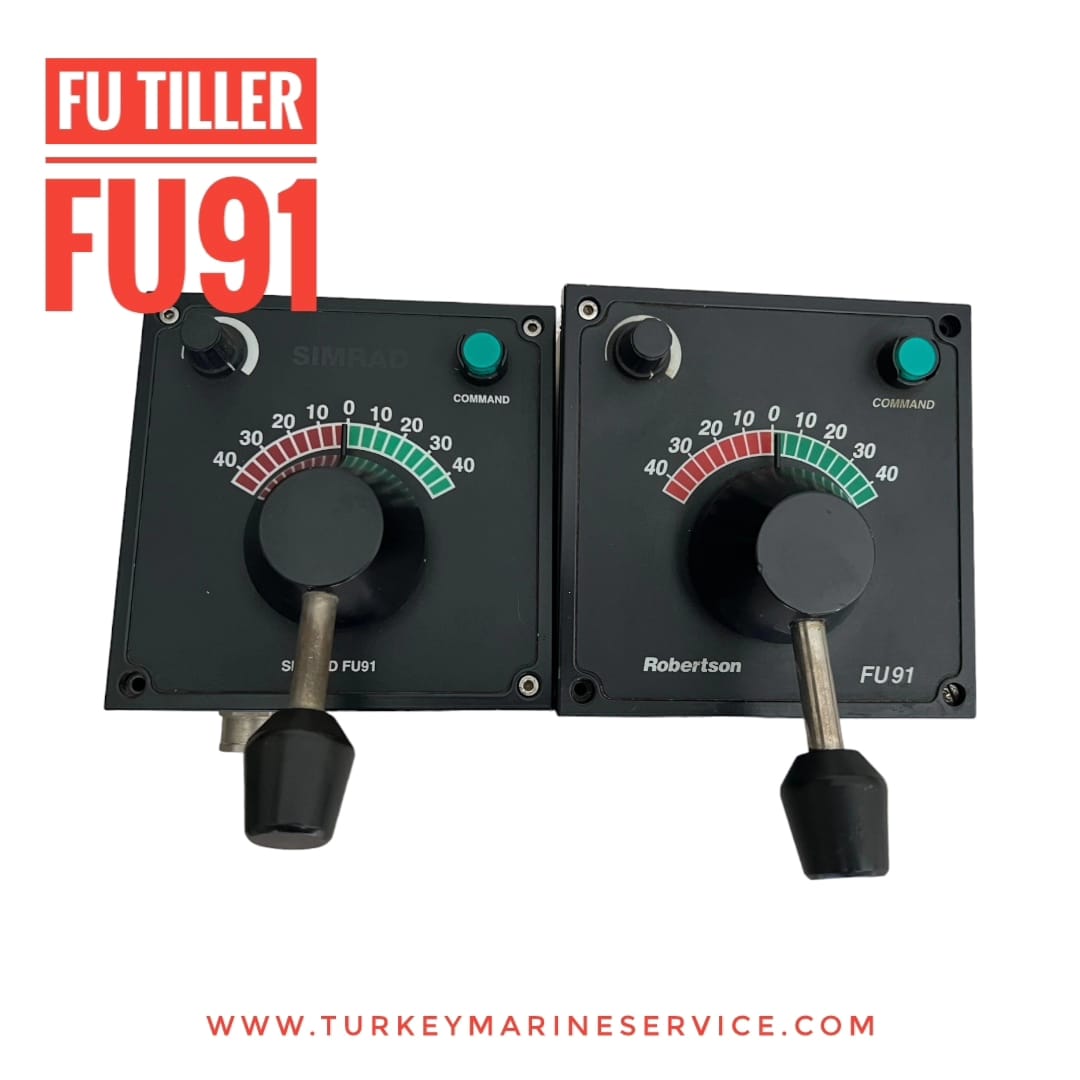

FU TILLER FU91 FOR ROBERTSON -SIMRAD AP45

DEVICE: AUTOPILOT

BRAND: ROBERTSON / SIMRAD

TYPE: AP45 AUTOPILOT FU TILLER

ITEM NUMBER: FU91 STEERING LEVER

PN CODE: 23603004



This Steering Lever FU Tiller – FU91 for Robertson / Simrad AP45 Autopilot and work in wing console for control.



We offer global supply services and comprehensive support at all Turkish ports. Feel free to contact us anytime.



FU91 Follow up Steering Lever

Operation

The FU91 is activated by operating the push to take command (PTTC) button. When in “COMMAND”, the button light is switched on and the autopilot INFO display will show:

FOLLOW UP HELMSMAN

Rudder commands are made by setting the lever to the required rudder angle, wherafter the rudder will move to the commanded angle and stop.

FU91 may be connected to AP45 in two different ways.



FU91 without mode switching

The lever can only be activated when the autopilot is in Helmsman mode. Pressing the PTTC button repeatedly will toggle between NFU and FU mode on AP45. See table below.



FU91 Switch	AP45 Mode	Function	AP45 Displays
OFF	MANUAL	NFU steering by NFU	NON FOLLOW UP	H 085
		lever or push button	MANUAL
		control
ON	MANUAL	Follow Up steering by	FOLLOW UP	H 085
		moving FU91 lever to	MANUAL
		desired rudder angle
		as read on FU91
ON-OFF	AUTO	Automatic steering	* * * * * AUTO	A 080

Note!

If the Helmsman button is pressed when the FU91 is active, or if a NFU lever is operated, the autopilot will go to NFU mode even though the PTTC button light is on. However, as soon as the FU91 is operated again (lever is moved), the autopilot will resume FU mode.

For safety reason, the FU91 should always be switched to OFF when not in use.



FU91 with mode switching

The lever can be activated also with autopilot in Auto mode. Pressing the PTTC button brings the AP45 into Helmsman mode. What mode/sequence you get when pressing the PTTC button again is depending on which value of the resistor R is installed (Ref. page 5-29)

R = 1K: Auto – Dodge – Auto (previous course)

R = 3K: Auto Manual – Manual

R = 5,1K: Auto – Manual – Auto (new course)



Multiple FU91 installation

The operation of each lever is identical to above description of a single lever. Activating one FU91 will deactivate the one that was previously active.



FU91 and S9 connected to the same autopilot

It is recommended not to have both S9 and FU91 in operational condition at the same time. This may create confusion and inadvertent operation. The main rules are:

–  Always put the S9 lever to locked position after use .

–  Always switch the FU91 to OFF after use.
