ELAC LAZ-5000 Echo Sounder | Sperry ES-5000 / Debeg 9205

ELAC LAZ-5000 Echo Sounder

The ELAC LAZ-5000 Echo Sounder is a marine depth sounder designed for reliable and continuous measurement of water depth. The system uses ultrasonic technology to determine the depth below the vessel and provides essential information for safe navigation, particularly in shallow-water and coastal operations.

The LAZ-5000 is also known under different manufacturer/model designations and can be found in marine equipment references as the Sperry Marine ES-5000, STN Atlas DEBEG 9205 and SAM 9205. These designations are associated with the same equipment family and are commonly encountered when sourcing replacement equipment and spare parts.

Equivalent / Related Model Designations

• ELAC LAZ-5000
• Sperry Marine ES-5000

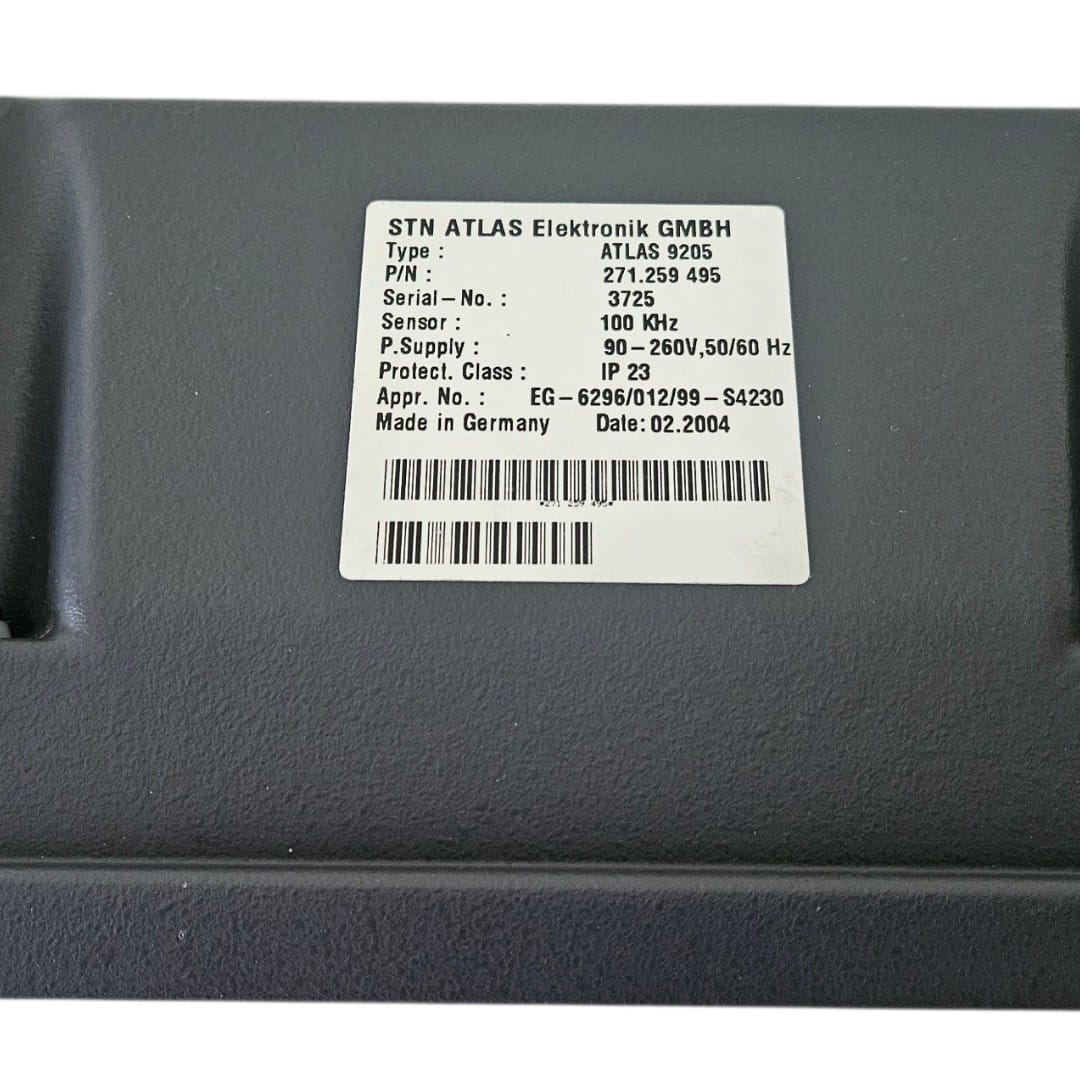

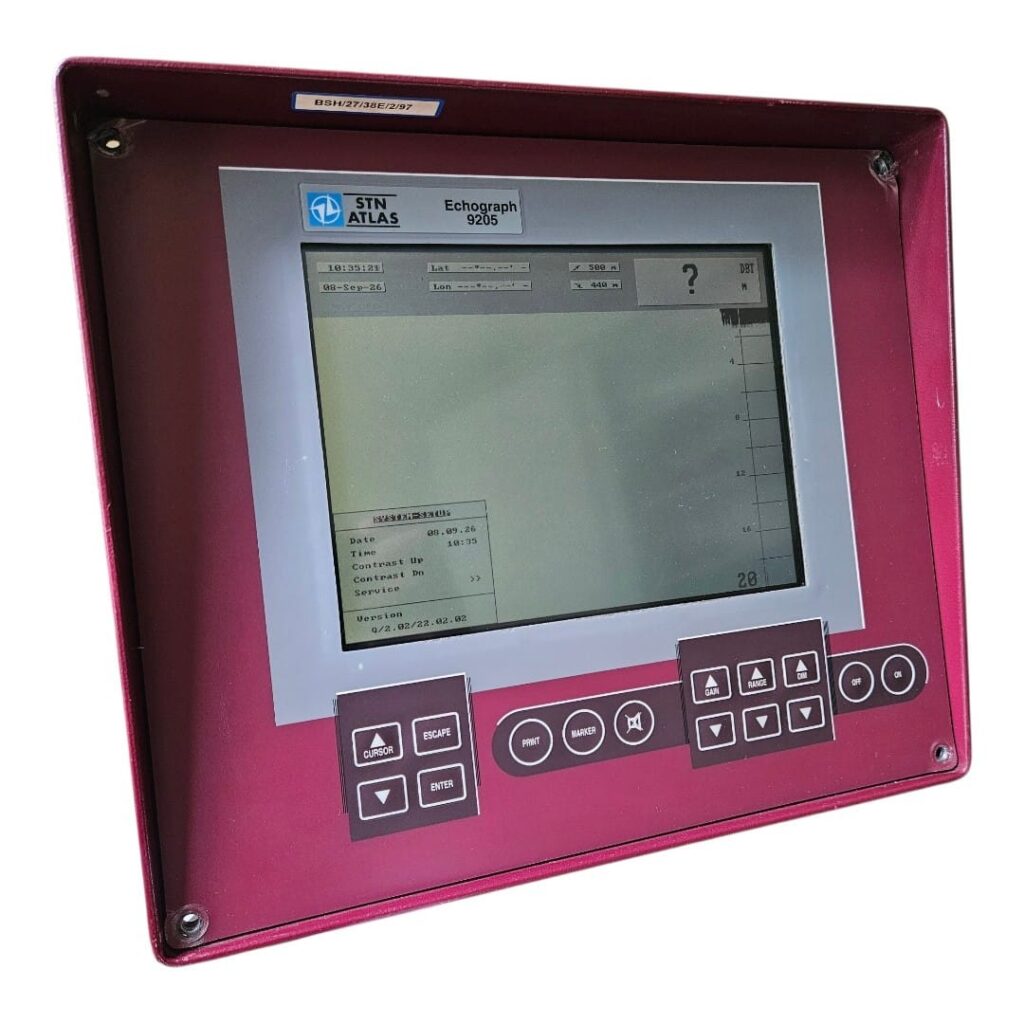

• STN Atlas DEBEG 9205

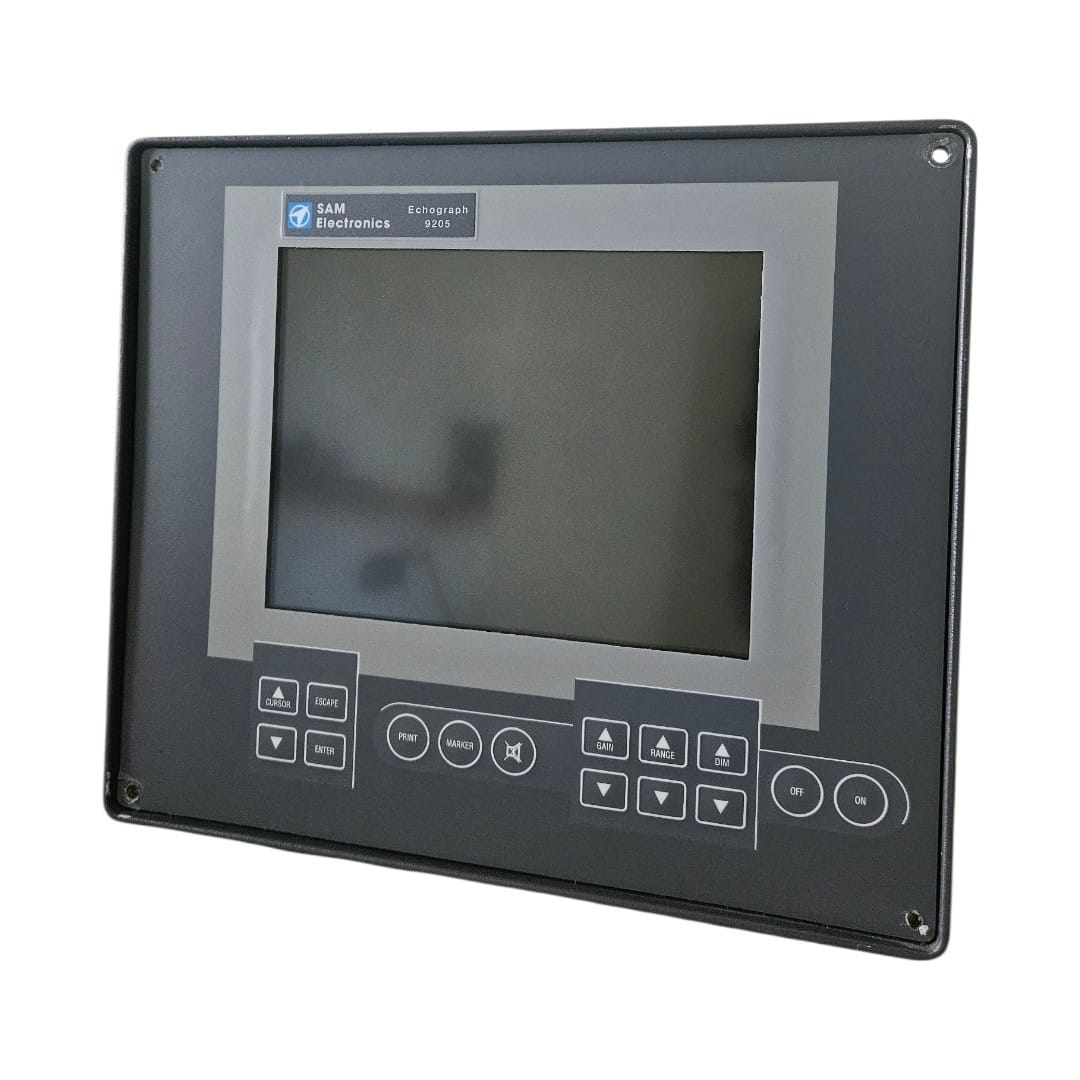

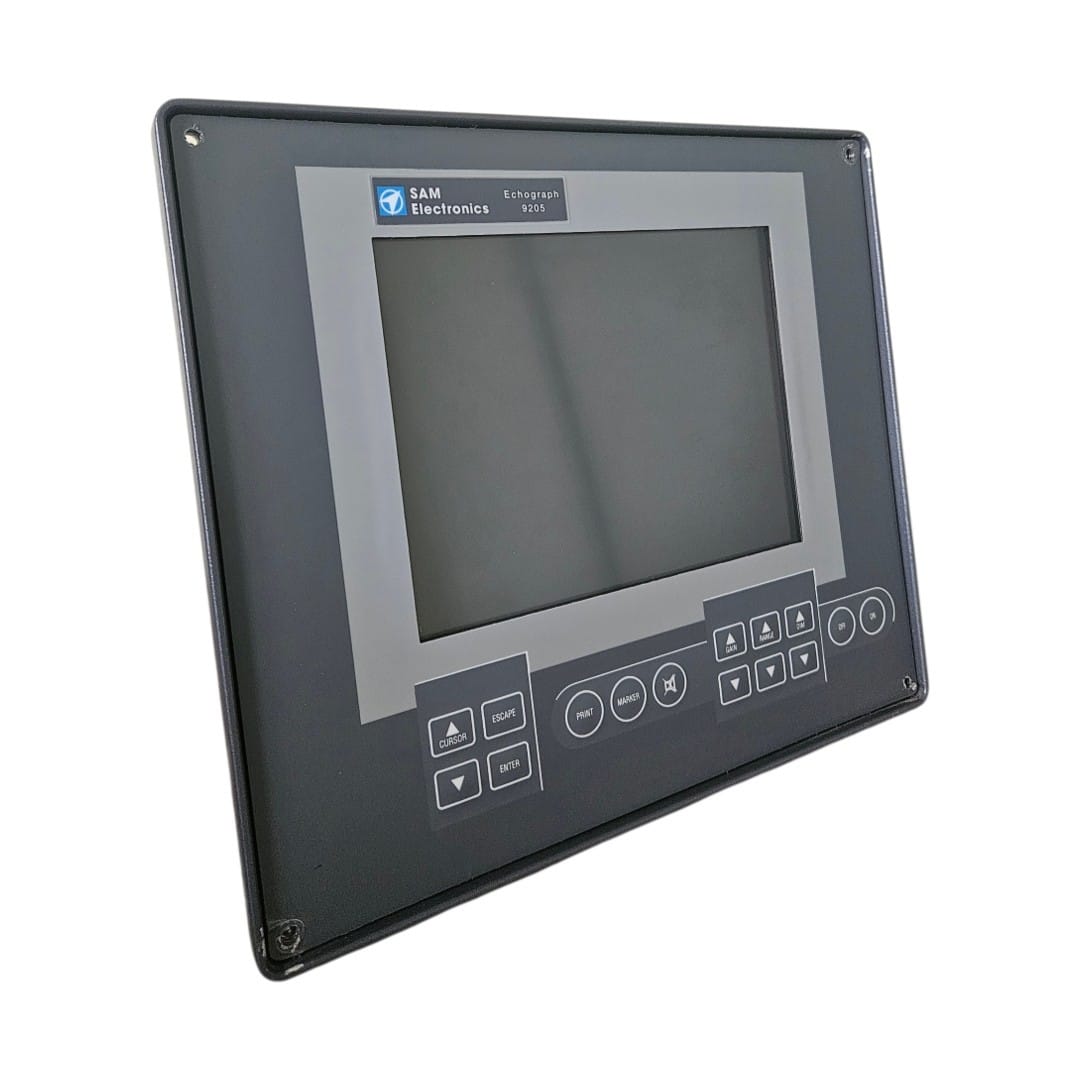

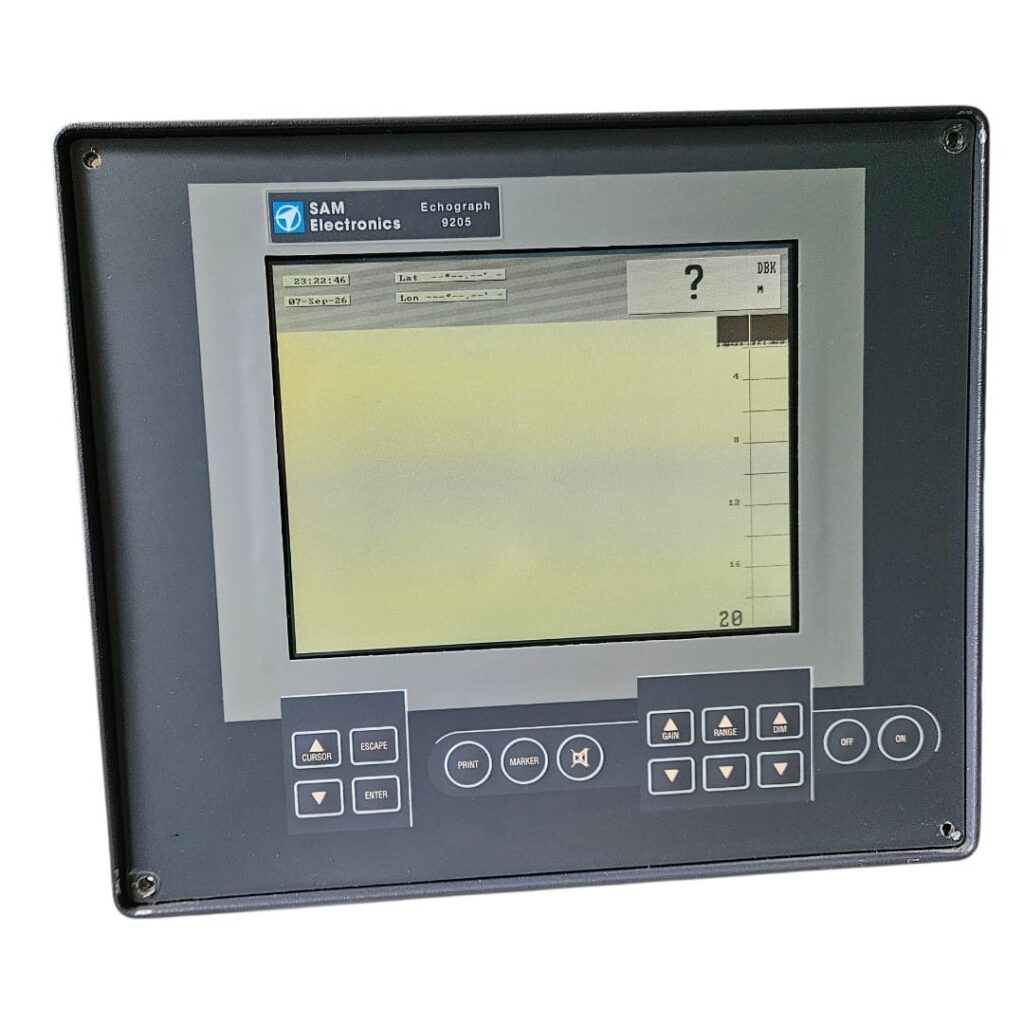

• SAM 9205

Features

• Marine echo sounder / depth sounder system
• Single Channel & Double Channel Options.
• 28, 30, 33, 38, 50, 100, 200 and 210 kHz Frequency (selectable, depending on transducer configuration).
• Designed for continuous depth monitoring
• Suitable for commercial and merchant vessels
• Reliable operation for navigation and safety applications
• Suitable for replacement and retrofit applications
• Compatible with the equipment configurations in which the above model designations were originally installed
• Suitable for sourcing obsolete and discontinued marine electronics

Applications

The ELAC LAZ-5000 series is used for under-keel depth monitoring and navigational safety. Echo sounders are particularly important when operating in shallow waters, entering or leaving ports, navigating channels, and during other operations where accurate depth information is required.

* Offered products are reconditioned & tested & single channel.

Model Cross-Reference

When searching for this equipment, customers may encounter different model numbers depending on the manufacturer, vessel equipment history, or original documentation:
