Description
DEVICE: MF-HF, CONTROL UNIT
BRAND: SAILOR
TYPE: CU-5100

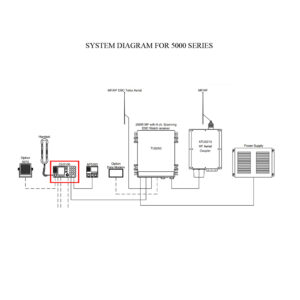

This Unit Control Unit CU-5100 for Sailor / Thrane & Thrane / Sperry Marine / Debeg 5000 Series MF/HF Radio System.
SPECIFICATIONS
The Control Unit consists of a main module 60-122876 and a MMI module 60-122877.
The main module consists of the digital part, i.e. the microprocessor, program FLASH PROM, configuration FLASH PROM, RAM, ScanBus data communication driver, SPARC-Bus driver, Printer interface, Keyboard interface and data terminal interface.
The main module also consists of an analog part, i.e. the voltage regulators, the analog interface circuits and the analog output drivers (audio and light). The main module supports a build-in speaker and the connectivity of an external 8 ohm speaker.
The MMI module contains the graphical TFT color display (240×320 dots), the display controller, keyboard interface and encoders for volume and rotary knob.
We can supply to world wide and we can give service in all Turkey Ports. Keep in touch with us.
