Description
DEVICE: MAGNETIC COMPASS
BRAND: CASSENS & PLATH
TYPE: TYPE51
Cassens & Plath Brand Type 51 Model Magnetic Compass. The TYPE/51 compass is suitable for use in lifeboats. The rose diameter of the TYPE/51 is 100mm.

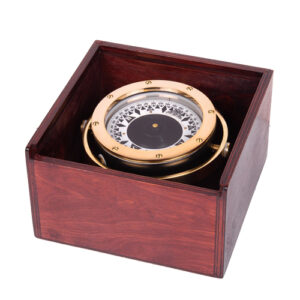

A wooden storage box and a compass housing with oil lamp are available as optional accessories.
TECHNICAL DATA
| Colour: | Black, Brass, White |
| Compass card: | White, 2° division, White, 5° division |
| MED certification: | Without |
| Suspension: | Half gimballed |
| Housing material: | Brass |
| Magnetic moment: | 0,70 Am² |
| Swing period: | 10 seconds |
| Swirl error: | <2° |
| Magnetic system: | Ring |
| Apparent card Ø: | 100 mm |
| Real card Ø: | 100 mm |
| Friction error: | < 0,5° |
| Directional error: | < 0,5° |
| Pitching tolerance: | +/-10° |
| Rolling tolerance: | +/-10° |
| Weight: | 2,0 kg |
ACCESSORIES
•Wooden Storage Box : PN: 205560
