Description

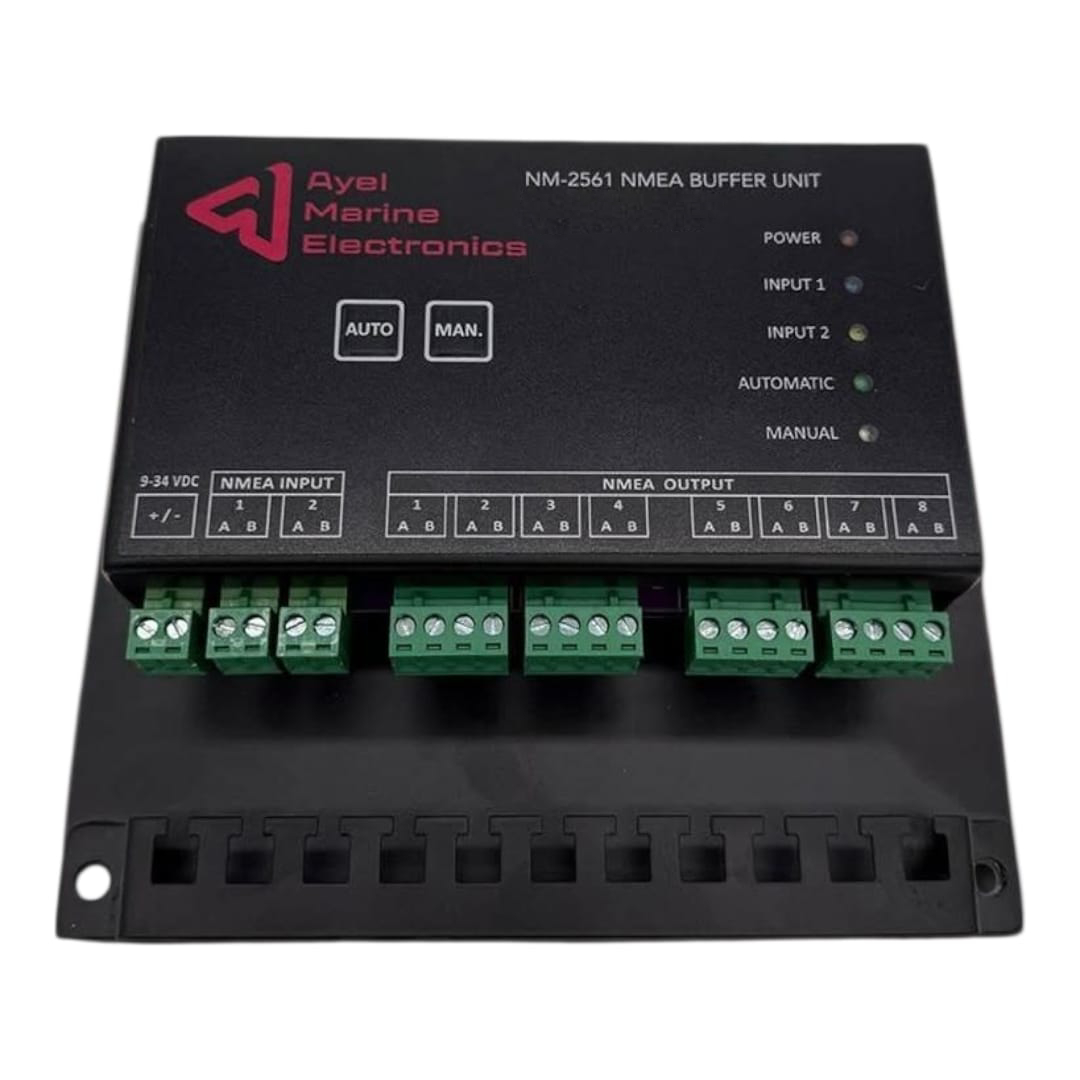

DEVICE: NMEA BUFFER
BRAND: AYEL
TYPE: NM-2561
By combining the wishes of both technicians and clients we developed a user-friendly and reliable NMEA Buffer. With user-friendly features and two operating modes the buffer is always able to provide a custom-fit solution.
The NM 25611 NMEA distributor has 2 independent isolated data inputs and can distribute data to up to 8 outputs. The NM-2561 features 2 operating modes, autoswitching mode and manual-dual mode.
NM BS61 NMEA Buffer has 2 Input x 8 output.
FEATURES
• Two OPTO-isolated input Eight 150-DriveTM
outputs
• Compatible with RS422 r RS232 and RS485
connections
• Pluggable screw terminals
• Power and input indicator LEDs
• Up to 115200 baud
• Outputs automatically track the
input baud rate
• Protocol independent
BENEFITS
• AIS compatible
• Protects connected devices
• Simple installation
