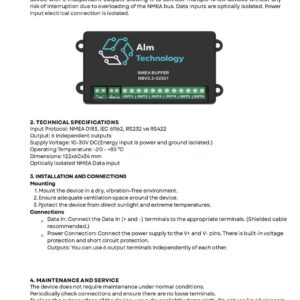

Description
DEVICE: NMEA BUFFER
BRAND: ALM TECHNOLOGY
TYPE: NBV0.3
NBV0.3 is a highly efficient NMEA splitter designed to correct and amplify NMEA signals. It features 6 independent outputs, allowing multiple NMEA devices to be connected without the risk of interruption due to overloading of the NMEA bus.
The data inputs are optically isolated, and the power input is electrically isolated for added safety and signal integrity.
Technical Specifications
– Input Protocols: NMEA 0183, IEC 61162, RS232, RS422
– Outputs: 6 independent outputs
– Supply Voltage: 10–30V DC (Power and ground connections are isolated)
– Operating Temperature: -20°C to +85°C
– Dimensions: 122 x 60 x 34 mm
– NMEA Data Input: Optically isolated
Installation and Connections
Mounting Instructions:
– Mount the device in a dry, vibration-free environment.
– Ensure proper ventilation around the unit.
– Avoid direct sunlight and extreme temperatures.
Connections:
– Data Input: Connect the NMEA0183 Data In (+ and -) terminals to the corresponding input lines.
(Shielded cable is recommended.)
– Power Connection: Connect the power supply to the V+ and V- terminals. (10-30 VDC )
Built-in voltage and short circuit protection are included.
– Outputs: All 6 output terminals can be used independently.
Maintenance and Service
– The device requires no maintenance under normal conditions.
– Periodically check wiring and ensure terminals are securely connected.
– To clean the exterior, use a dry or slightly damp cloth. Do not use liquid cleaners or solvents.
